Electric Trailer Jack Sizing: The Rule Most RV Owners Skip
The short answer
For most travel trailers, a 3,500 lb electric jack is the right size. Tongue weight usually lands between 10% and 15% of the trailer’s GVWR, so a 6,000 lb trailer carries roughly 600-900 lb on the coupler. A 3,500 lb jack lifts that with plenty of margin. Size the jack by tongue weight, not by how big the trailer looks.
What tongue weight actually means
Tongue weight is the downward force the coupler puts on the hitch ball. It is not the trailer’s total weight, and it is not the GVWR printed on the sticker. Most trailers need 10-15% of their loaded weight on the tongue to track straight down the highway. That number, not the trailer’s length or brand, is what your jack has to lift.
To estimate it, take the trailer’s GVWR and multiply by 0.10 and then by 0.15. For a 7,000 lb trailer, that is 700-1,050 lb. If you have a tongue scale or can split the weight at a CAT scale, use the real number instead of the estimate. Loaded gear, a spare tire, or a full water tank can shift the tongue weight noticeably.
Tongue weight and jack size table
| Trailer GVWR | Estimated tongue weight | Electric jack to look at |
|---|---|---|
| 3,500 lb | 350-525 lb | 3,500 lb |
| 5,000 lb | 500-750 lb | 3,500 lb |
| 7,000 lb | 700-1,050 lb | 3,500 lb |
| 8,000 lb | 800-1,200 lb | 4,000 lb |
| 10,000 lb | 1,000-1,500 lb | 5,000 lb |
| 14,000 lb | 1,400-2,100 lb | 5,000 lb or heavier |
These are planning numbers, not a substitute for a scale. If you carry heavy gear on the tongue, go up a size.
Why you want margin, not just capacity
Electric jacks do their best work well below their rated limit. A 3,500 lb jack lifting 700 lb runs cooler, moves faster, and wears less than one working at 3,000 lb. A good rule of thumb is to keep the rated capacity at least double the real tongue weight.
There is also the angle problem. A jack mounted on a sloped driveway is lifting at an angle, and the effective capacity drops. Add gear, a spare tire, and a downhill campsite, and the 600 lb you measured at home can feel heavier at the campground.
Check the lift range before you buy
Capacity is only half the fit. Measure from the bottom of the coupler to the ground when the trailer is level, then add the drop you want for the jack leg. A 3,500 lb jack with a 9.5-27.5 inch lift covers most travel trailers. Taller trailers or lifted trucks may need the longer travel of a 5,000 lb model with a 10-28.3 inch range.
Wiring and mounting
Power
Most RVs have a 7-pin connector, which makes a factory-style electric jack a clean install. If you are wiring direct to the battery, use a fused line and wire gauge matched to the current draw. A remote-control jack is handy when the connector is not near the coupler.
Mounting

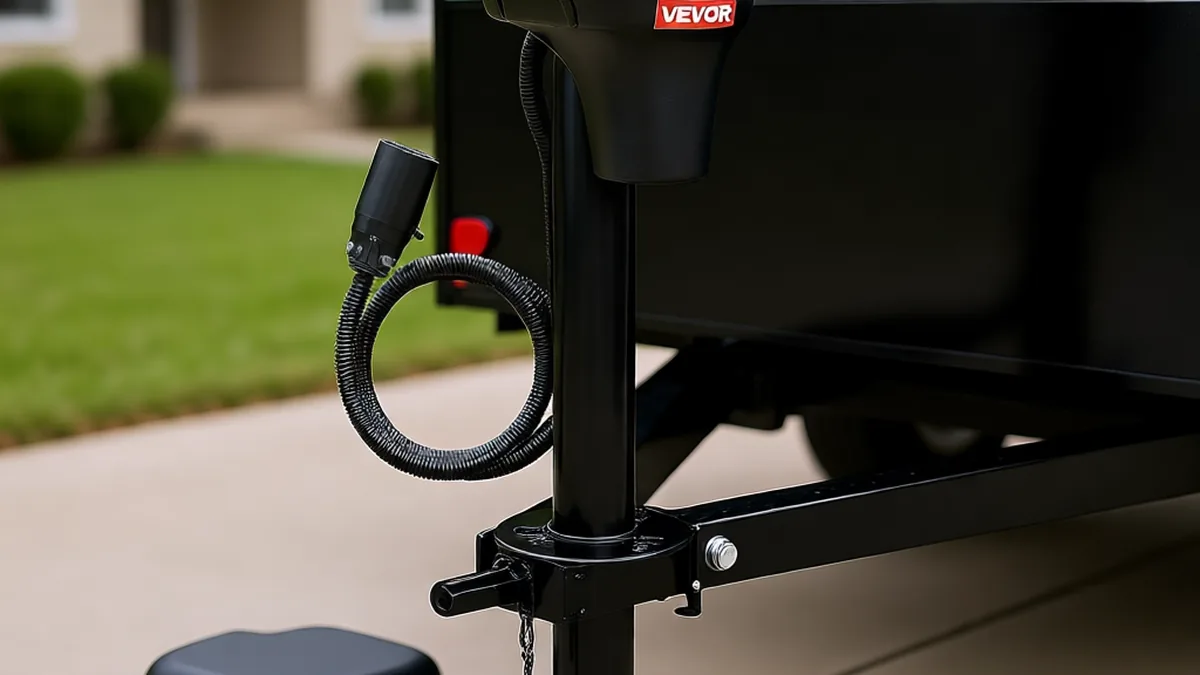

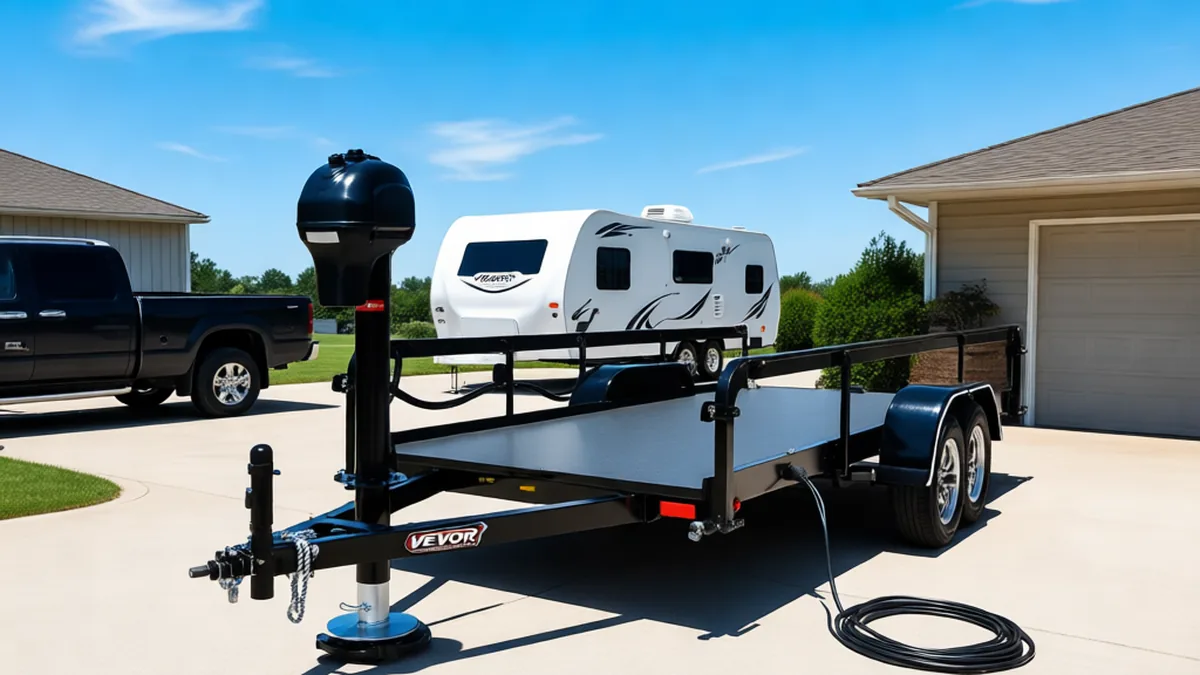

Electric tongue jacks mount to an A-frame coupler. Check the bolt spacing and make sure the jack body clears the coupler when it turns. Also confirm the manual crank backup still works, because a dead battery at a campsite is a bad time to learn the difference.
Electric trailer jacks we carry

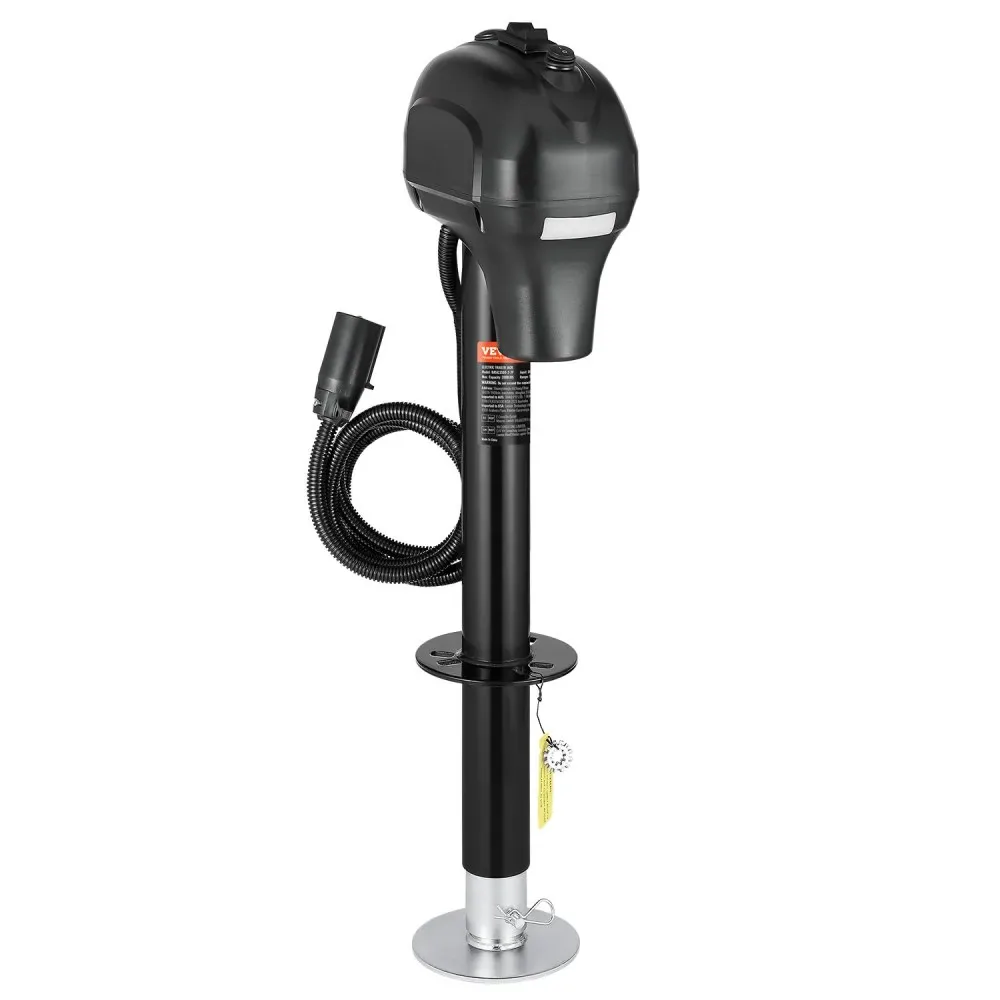

- VEVOR 3,500 lb electric trailer jack with 7-pin connector – the right fit for most travel trailers
- VEVOR 4,000 lb electric trailer jack – extra margin for heavier couplers
- VEVOR 5,000 lb electric trailer jack with 7-pin connector – for 10,000 lb and heavier trailers
- VEVOR 5,000 lb electric trailer jack with remote control – raise and lower from the side of the trailer
Frequently asked questions
u003cpu003eIt is rated to lift 3,500 lb, but it is happiest with a real tongue weight around 1,200 lb or less. Most travel trailers fall in the 600-900 lb range, which leaves a comfortable margin.u003c/pu003e
u003cpu003eUse a tongue-weight scale or weigh the trailer on a CAT scale. If you cannot weigh it, estimate 10-15% of the loaded GVWR and round up when choosing a jack.u003c/pu003e
u003cpu003eYes, as long as the mounting pattern fits the A-frame and the jack does not block the coupler. Bigger is usually fine; smaller than the tongue weight is not.u003c/pu003e
u003cpu003eElectric is more convenient for trailers and RVs you use often, especially with a 7-pin connector already in place. Manual jacks are lighter, cheaper, and fine for simple utility trailers.u003c/pu003e
u003cpu003eMost standard A-frame couplers fit a 3,500 lb jack. Check the bolt spacing, coupler clearance, and the lift range against your coupler height before buying.u003c/pu003e
Frequently Asked Questions
What size electric trailer jack do I need?
For most travel trailers, a 3,500 lb electric jack is the right size. Size the jack by tongue weight, which is usually 10-15% of the trailer GVWR, not by how big the trailer looks.
How do I estimate my trailer tongue weight?
Multiply the trailer GVWR by 0.10 and by 0.15. A 7,000 lb trailer carries roughly 700-1,050 lb on the coupler. Use a tongue scale or CAT scale for the real number.
Why should the jack capacity be at least double the tongue weight?
An electric jack works below its rated limit runs cooler, faster, and wears less. Sloped driveways and loaded gear reduce effective capacity, so keep margin.
What jack do I need for a heavy trailer?
An 8,000 lb trailer calls for a 4,000 lb jack, and a 10,000-14,000 lb trailer calls for a 5,000 lb jack or heavier.
