5-Gallon Water Dispenser Pump, 100-240V

VEVOR 5-Gallon Water Dispenser Pump, 100-240V Wide Voltage

Wholesale price, no minimum order

Outlet Pipe Position:

single-inlet water dispenser pump with bottle

Side Outlet Pipe$60.90

wide-voltage water dispenser pump with adapter

Lower Outlet Pipe$60.99

Quantity:

Single Inlet PipeDouble Inlet Pipe

Key Features

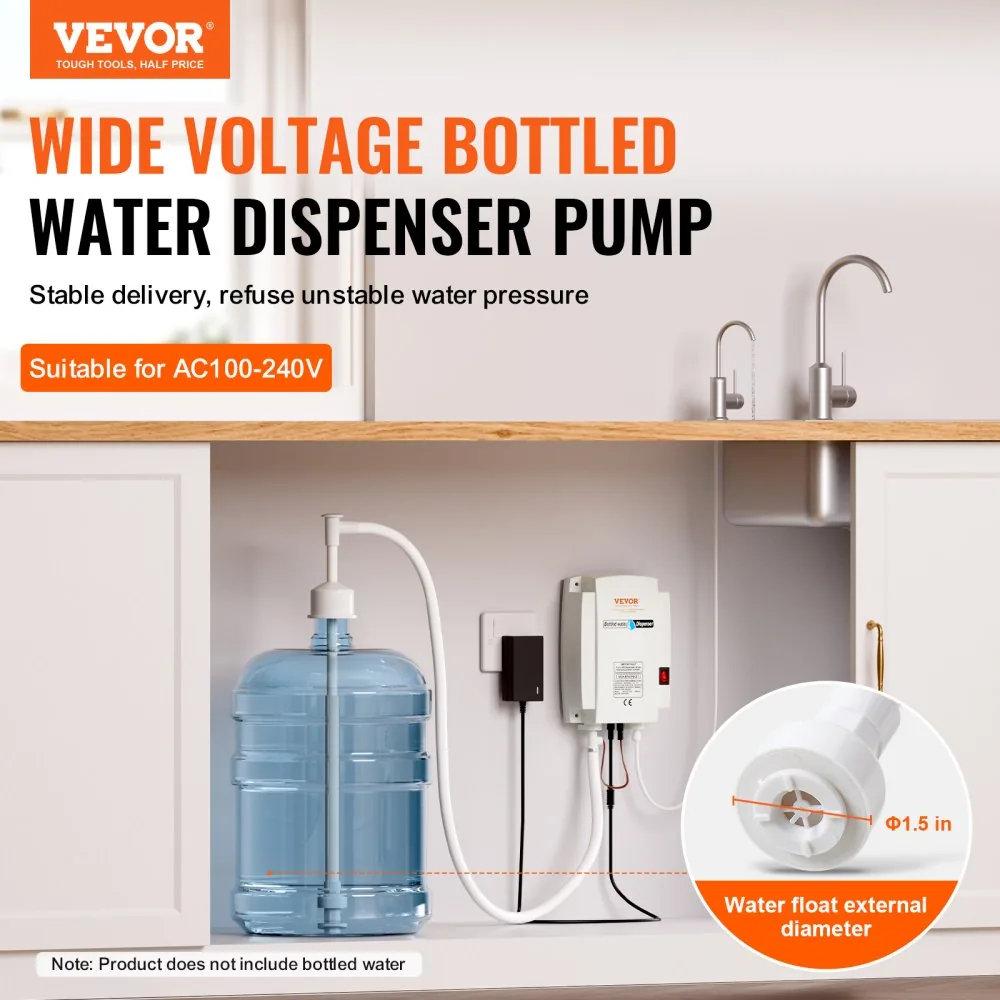

The external adapter accepts 100-240V input, which is useful when the outlet supply is not limited to one fixed voltage.

The 3.5 lb pump body is lighter than the single- and dual-inlet models, making installation under a cabinet easier.

The automatic pressure switch controls the pump from the line pressure, with a listed 40 to 60 psi operating range.

The 12 W no-load figure is lower than the 15 W listed for the other two water pumps.

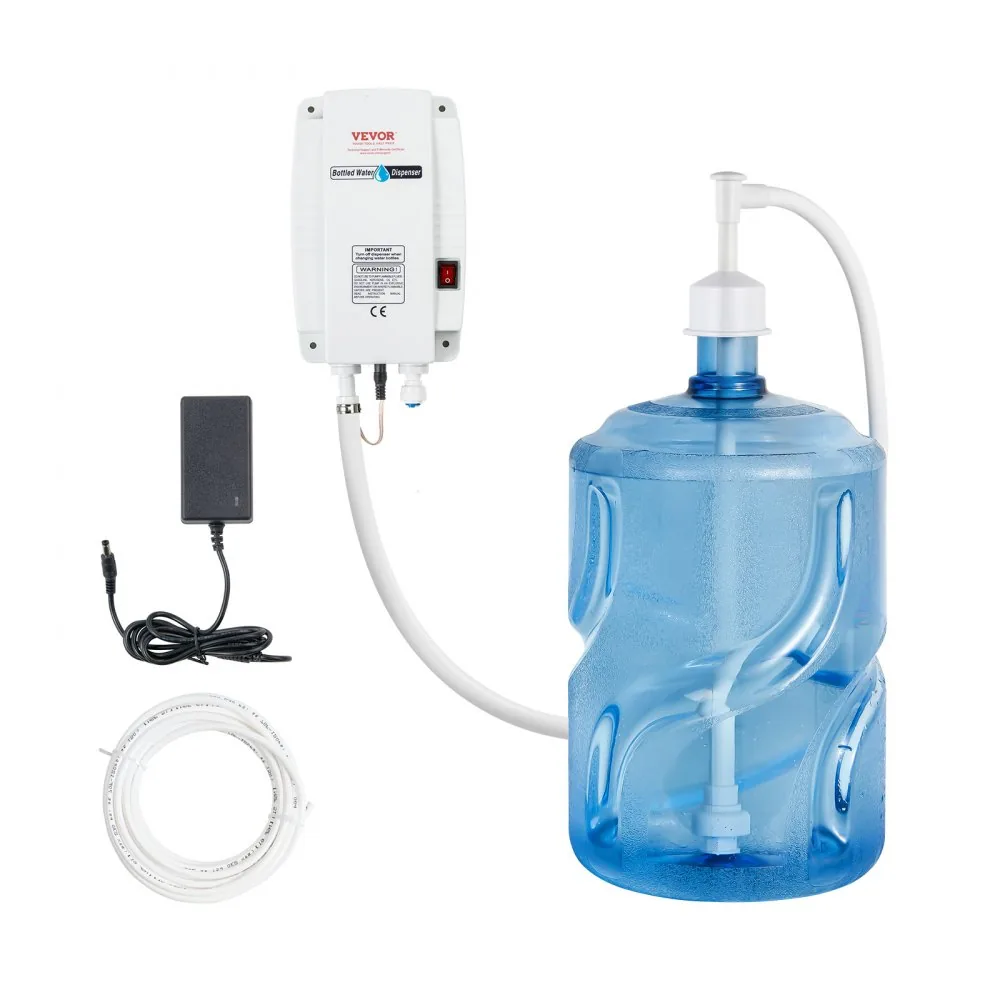

The package includes the pump, power adapter, pickup tube and mounting pads shown in the gallery; bottles and appliances are not included.

In stock

📦 Free shipping to the 48 contiguous US states · Ships within 1-3 business days, arrives in 2-5 business days · 30-day returns and manufacturer warranty

SKU: YSBDTBW4003A00001V1 Category: Automotive Tools

Quick Answer

This wide-voltage bottled-water pump accepts 100-240V input through its adapter and delivers 40 to 60 psi from a 5-gallon bottle. Its 3.5 lb body is easy to fit under a counter, and its no-load draw is listed at 12 W. It is intended for one bottle and one point-of-use outlet.

Description

At a Glance

One bottle pickupBottle connection50 WRated power12 WNo-load power40-60 psi / 2.8-4.1 barOperating pressure>0.67 GPM / >2.5 L/min outletOutlet flow>1 GPM / >3.8 L/min pump headPump-head flow3.5 lb / 1.6 kgProduct weight

Wide-Voltage 5-Gallon Water Pump

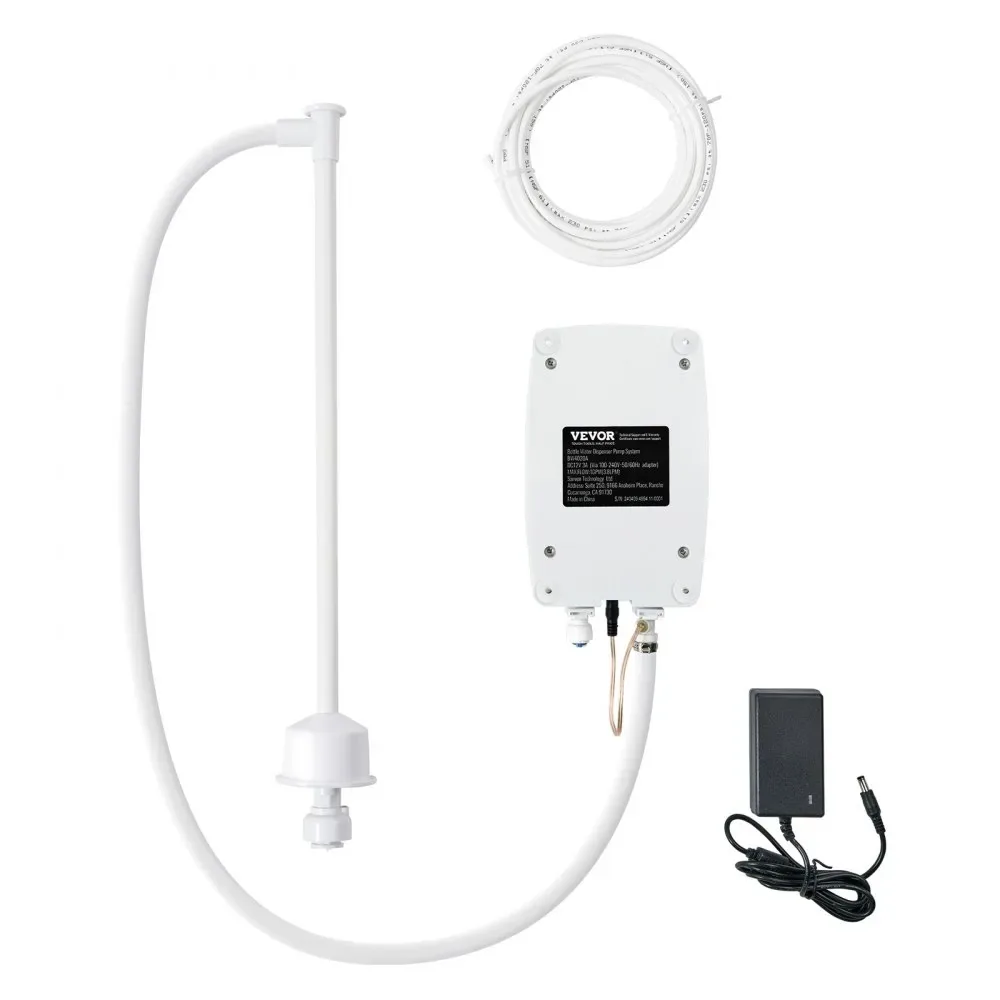

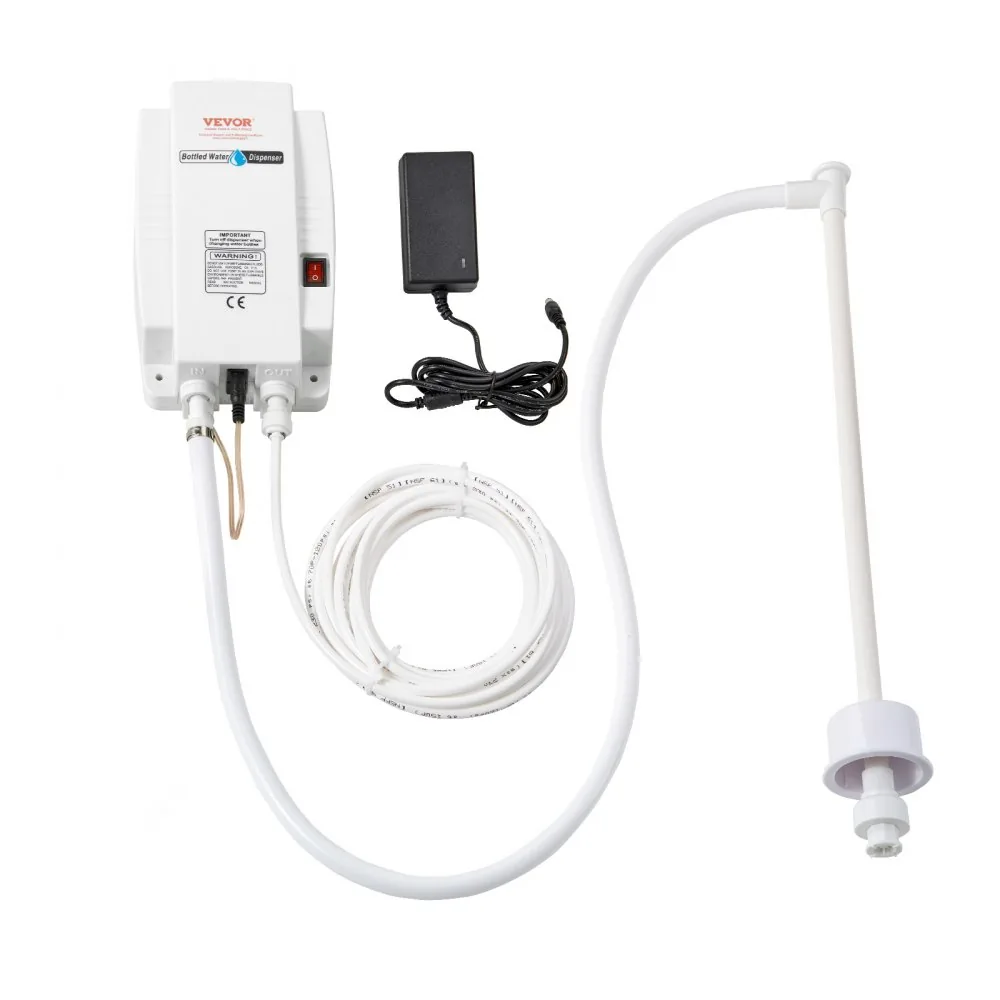

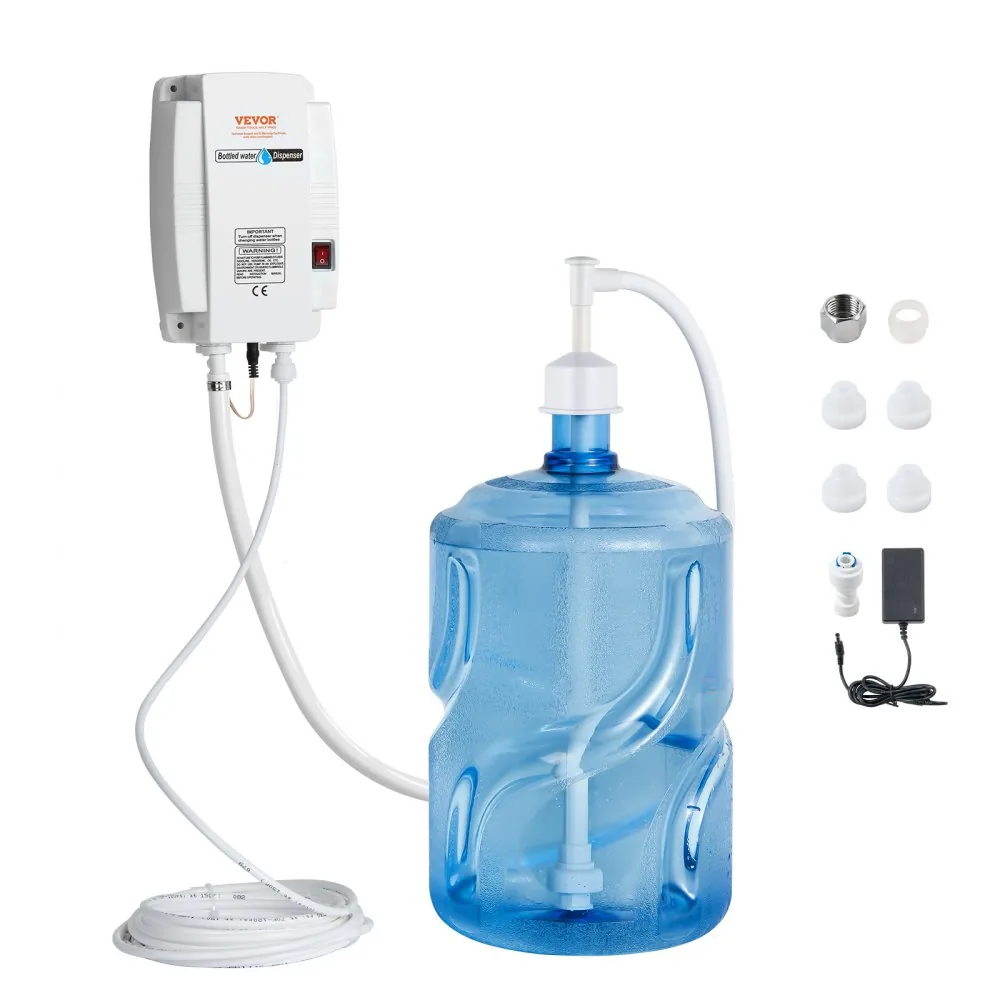

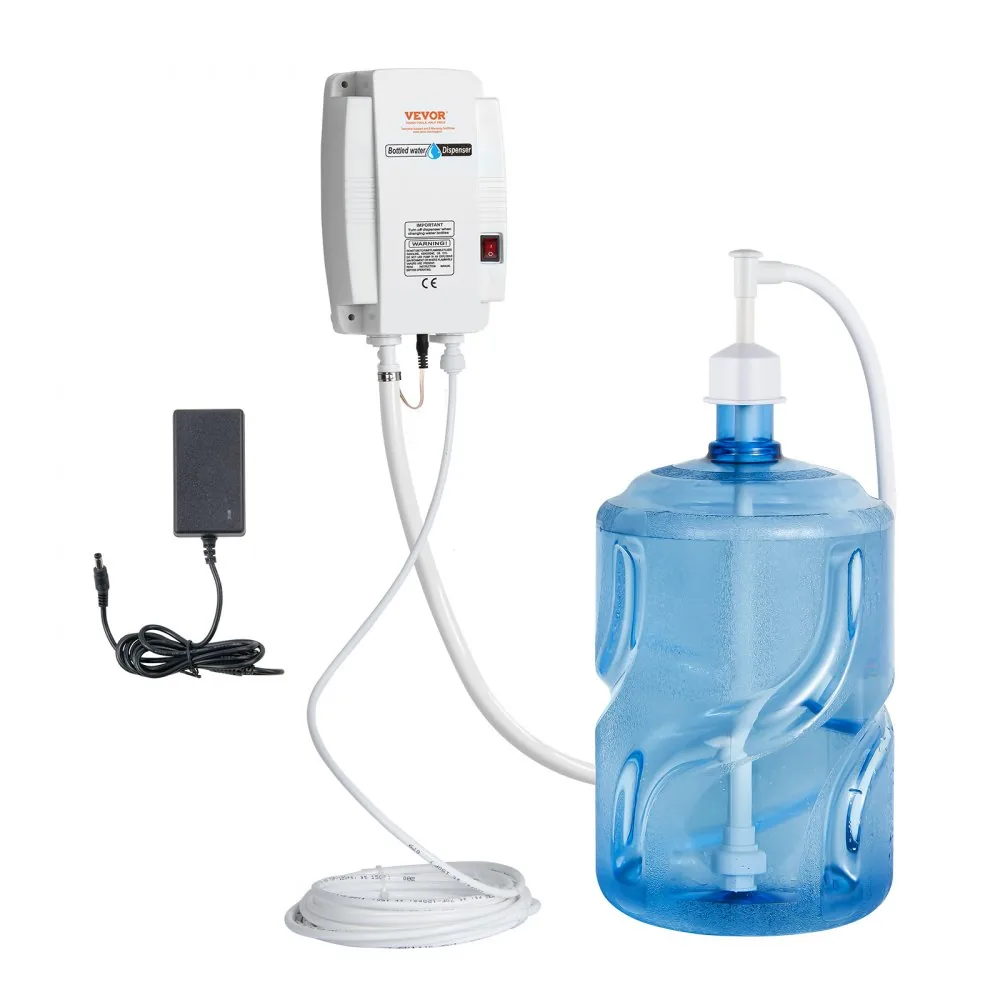

What is included: the pump, 1/4 in. PE tubing with a pre-installed quick connector, connector nut, sealing ring and four silicone foot pads. The bottle and the appliance are not included.

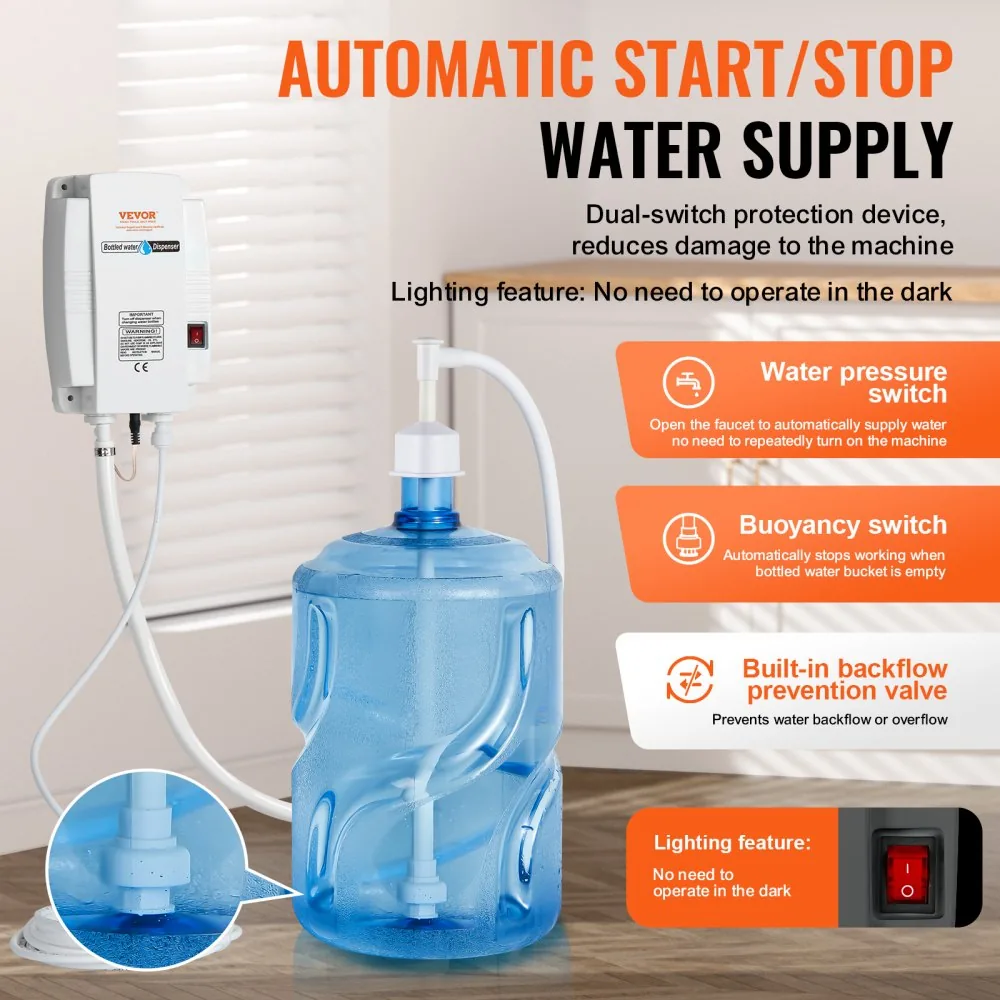

How the automatic dispenser works

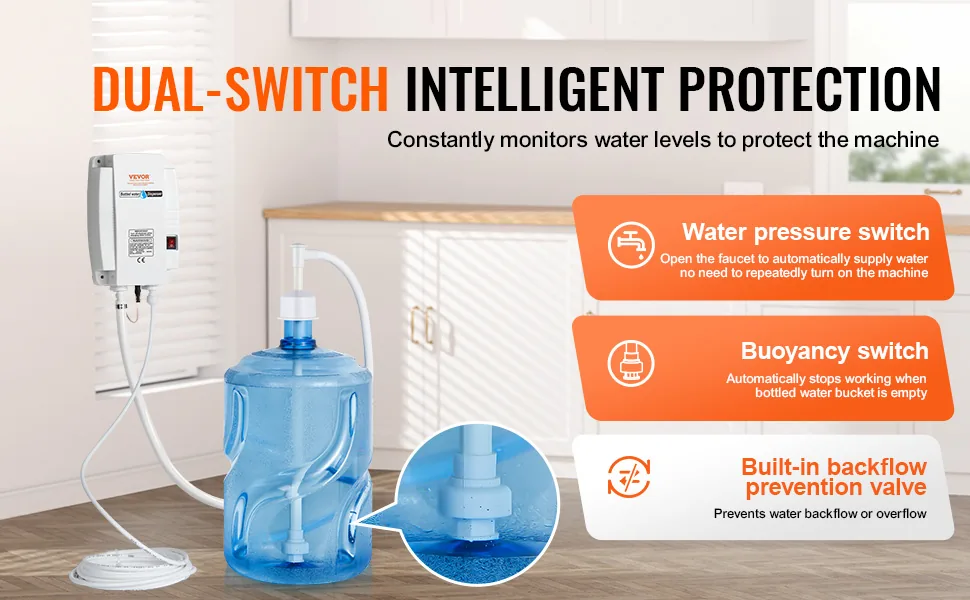

The pump pressurizes a small line from a 5-gallon bottle. When an outlet or appliance draws water, line pressure falls and the pressure switch starts the pump. When the set pressure is reached, the pump stops. The listed operating range is 40-60 psi / 2.8-4.1 bar. A backflow-prevention valve keeps water from travelling back toward the bottle when the pump is off.

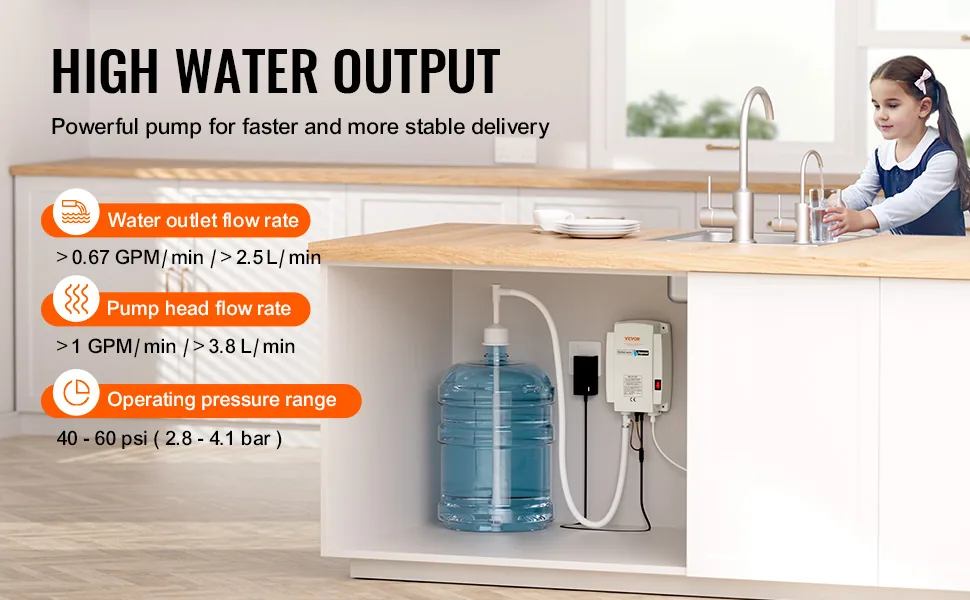

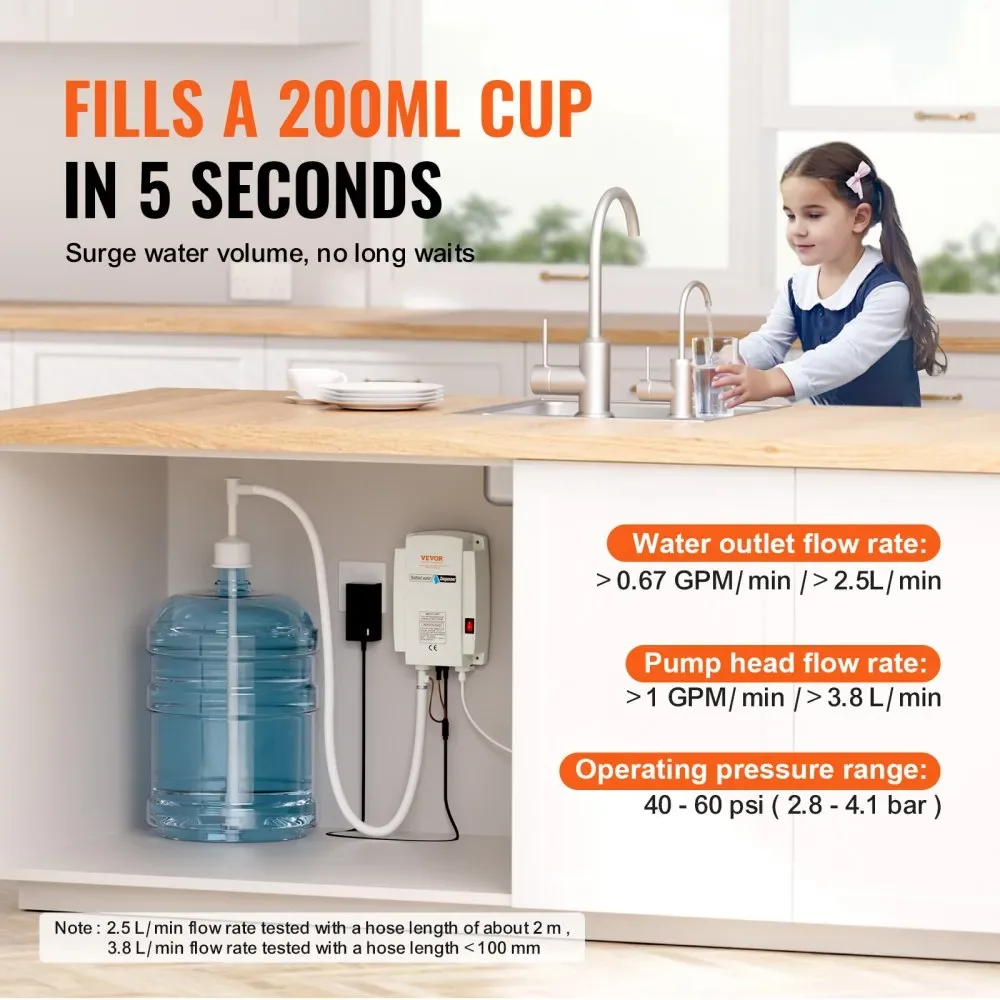

How much water this pump can deliver

The outlet flow is more than >2.5 L/min and the pump-head flow is more than >3.8 L/min. That is enough for a faucet, coffee or tea machine, a refrigerator or an ice maker, but it is still a point-of-use system. It is not sized to replace a household booster pump or to feed a whole-building water system.

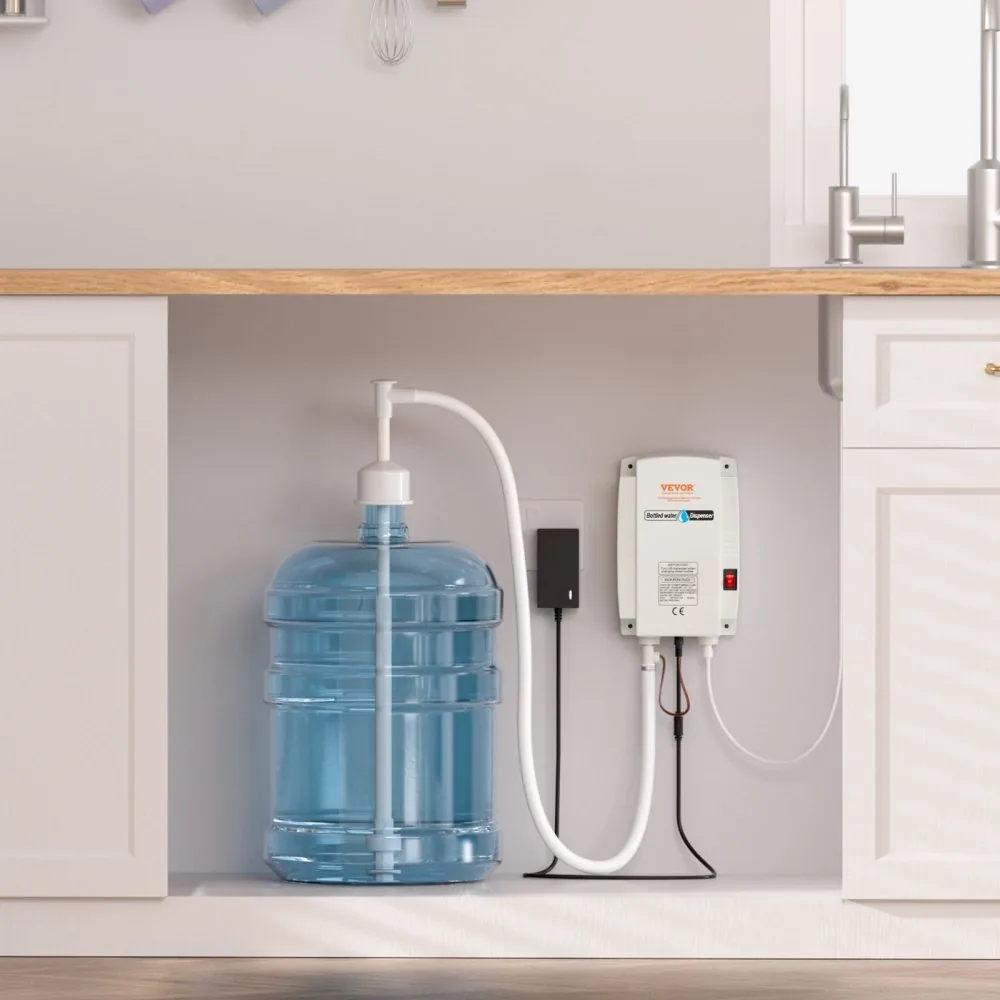

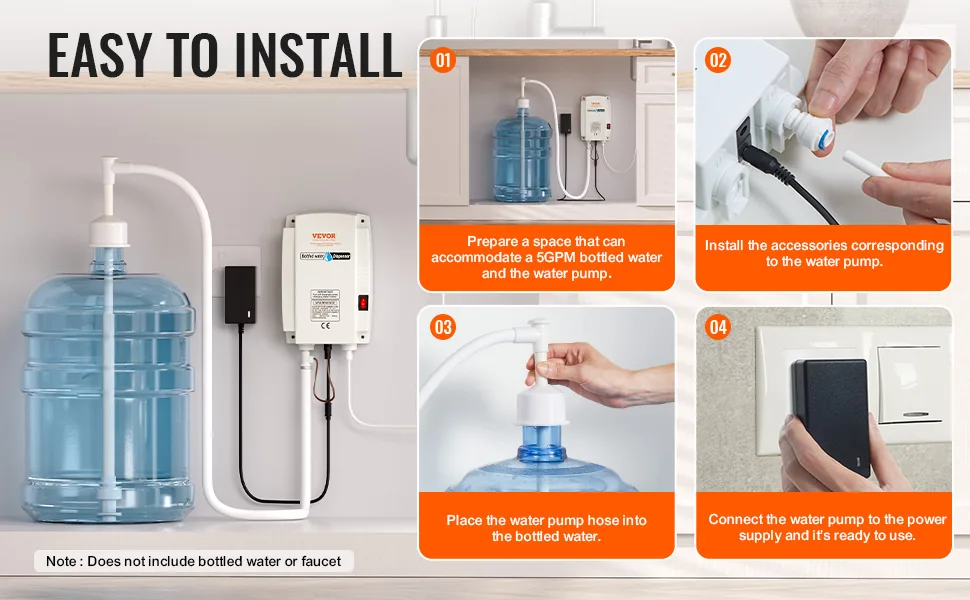

Installation and leak checks

Place the bottle on a stable surface and keep the pump above the floor where it can be reached for service.
Connect the pickup, seal the tubing joint and route the line without sharp bends or a trip hazard.

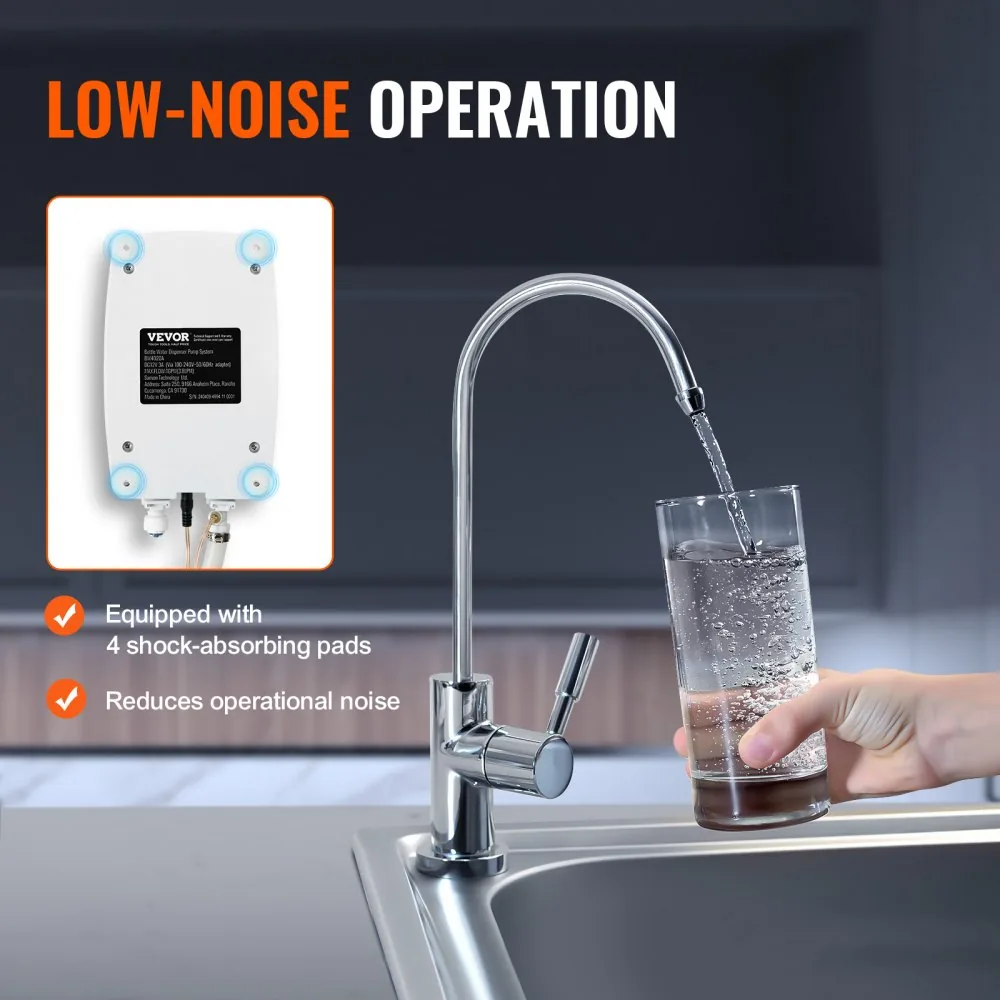

Mount the pump with the silicone pads, leaving the power adapter and switch accessible.
Run a short test into a bucket before connecting the appliance. Dry every joint and check again after 10 minutes.
Use a drip loop below the appliance connection and keep electrical parts away from the water line.

Choosing between the three water pumps

Choose this model when the adapter voltage range or the lighter 3.5 lb body is the priority. Choose the single-inlet 15 W model when lower no-load draw matters, or the dual-inlet model when two bottles must feed one line.

Care and limits

Use cold water only. Clean the bottle and dispenser at the interval appropriate for your water source, replace cloudy tubing, and inspect the connector and seals when the flow slows. Do not run the pump dry and do not leave a pressurized line where a loose fitting can flood a cabinet. If the pump runs continuously or the pressure does not settle, stop and look for a leak or a blocked outlet rather than adding more tubing.

Wholesale pricing

One unit, wholesale pricing. The listed price is the wholesale rate for one pump system. There is no minimum order quantity and no separate tier price, so one system and several systems use the same listed unit price.

Performance & Applications

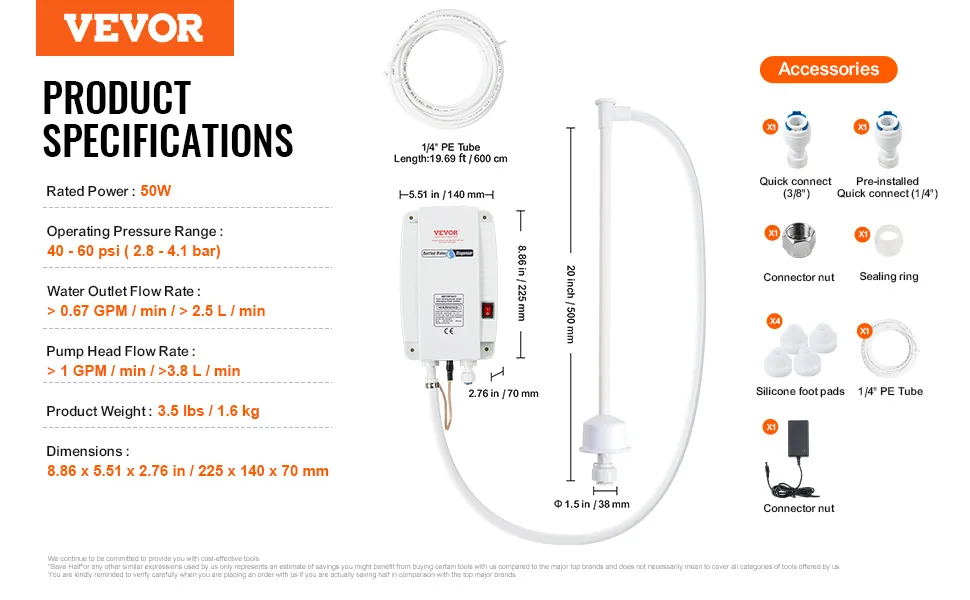

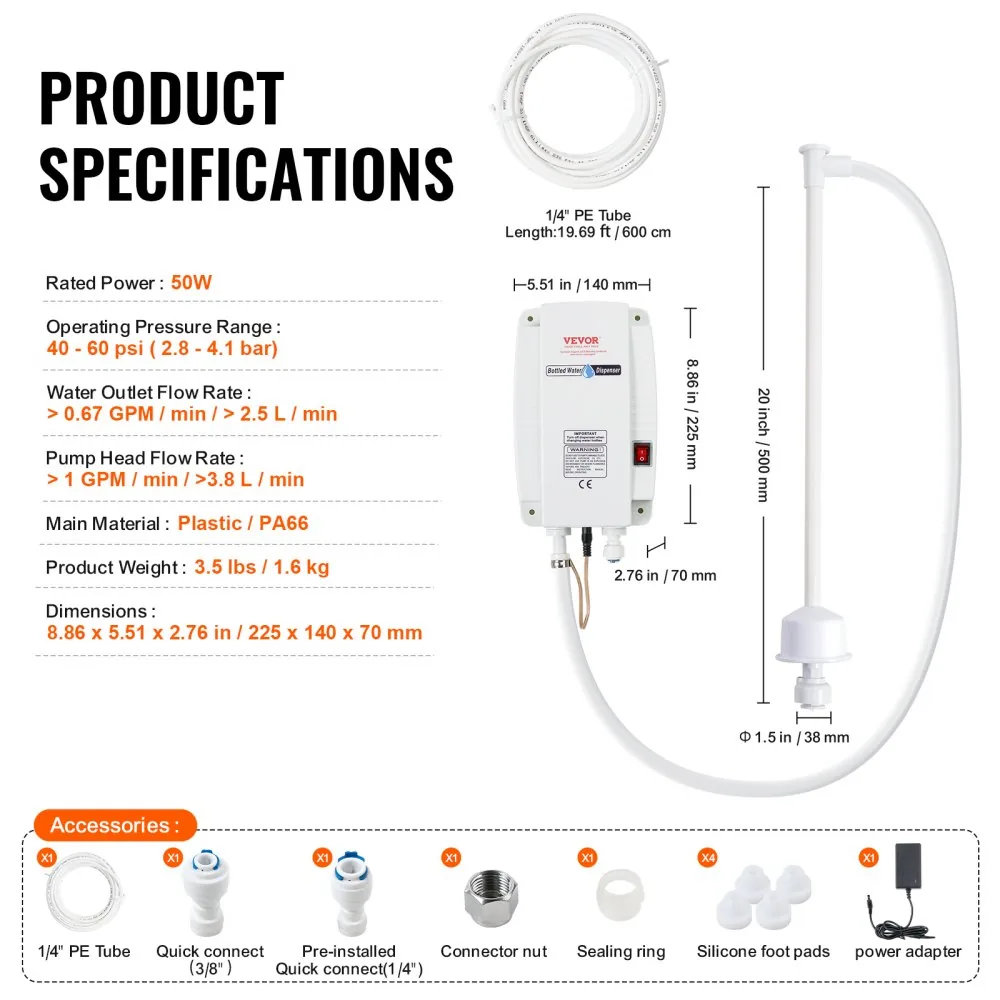

Specifications

Brand	VEVOR
Rated Power	50W
No-load Power	12W
Operating Pressure Range	40-60 psi (2.8-4.1 bar)
Water Outlet Flow Rate	>0.67 GPM/min / >2.5 L/min
Pump Head Flow Rate	>1 GPM/min / >3.8 L/min
Product Weight	3.5 lbs / 1.6 kg

0 reviews for VEVOR 5-Gallon Water Dispenser Pump, 100-240V Wide Voltage

Customer reviews

No reviews found

No reviews match your current filters. Try adjusting or clearing your filters to see more reviews.

Be the first to review “VEVOR 5-Gallon Water Dispenser Pump, 100-240V Wide Voltage” Cancel reply

Your email address will not be published. Required fields are marked *

Review Title (optional) 0 / 100

Your rating *

Your review *

Add Photos/Videos (optional)

Drag & drop files here or browse

Images: up to 5 files, max 5MB each | Videos: up to 2 files, max 50MB each, 60 sec max

Name

Post this review anonymously

Frequently Asked Questions

Q: What kind of bottles does it use?

A: The pump is designed for standard 5-gallon bottled water. The bottle is not included, and the pickup and cap arrangement must fit the bottle you use.

Q: What pressure does it produce?

A: The listed operating range is 40-60 psi / 2.8-4.1 bar. Check that every tube, fitting and appliance downstream is rated for that pressure.

Q: How much water can it deliver?

A: The listing gives >0.67 GPM / >2.5 L/min outlet and a pump-head flow of >1 GPM / >3.8 L/min pump head. This is a point-of-use dispenser, not a whole-house booster pump.

Q: Does it start automatically?

A: Yes. The pressure switch starts the pump when outlet pressure drops and stops it when the set pressure is reached.

Q: Can I connect it to a coffee machine or ice maker?

A: Yes, if the appliance accepts a 40 to 60 psi supply and its inlet fittings are compatible. Use a pressure-rated line and check for leaks before leaving it connected.

Q: Are the bottles included?

A: No. The bottle, faucet and appliance are not included; the listing is for the pump system and the tubing and fittings shown in the package.

Q: What is included in the box?

A: The pump, 1/4 in. PE tubing, a pre-installed quick connector, a connector nut, a sealing ring and four silicone foot pads. Check the gallery for the exact package layout.

Q: Can it run dry?

A: No. Keep the pickup in water and stop the system if the bottle empties. Running without water can damage the pump.

Q: Which water pump should I choose?

A: Choose this model when the adapter voltage range or the lighter 3.5 lb body is the priority. Choose the single-inlet 15 W model when lower no-load draw matters, or the dual-inlet model when two bottles must feed one line.
