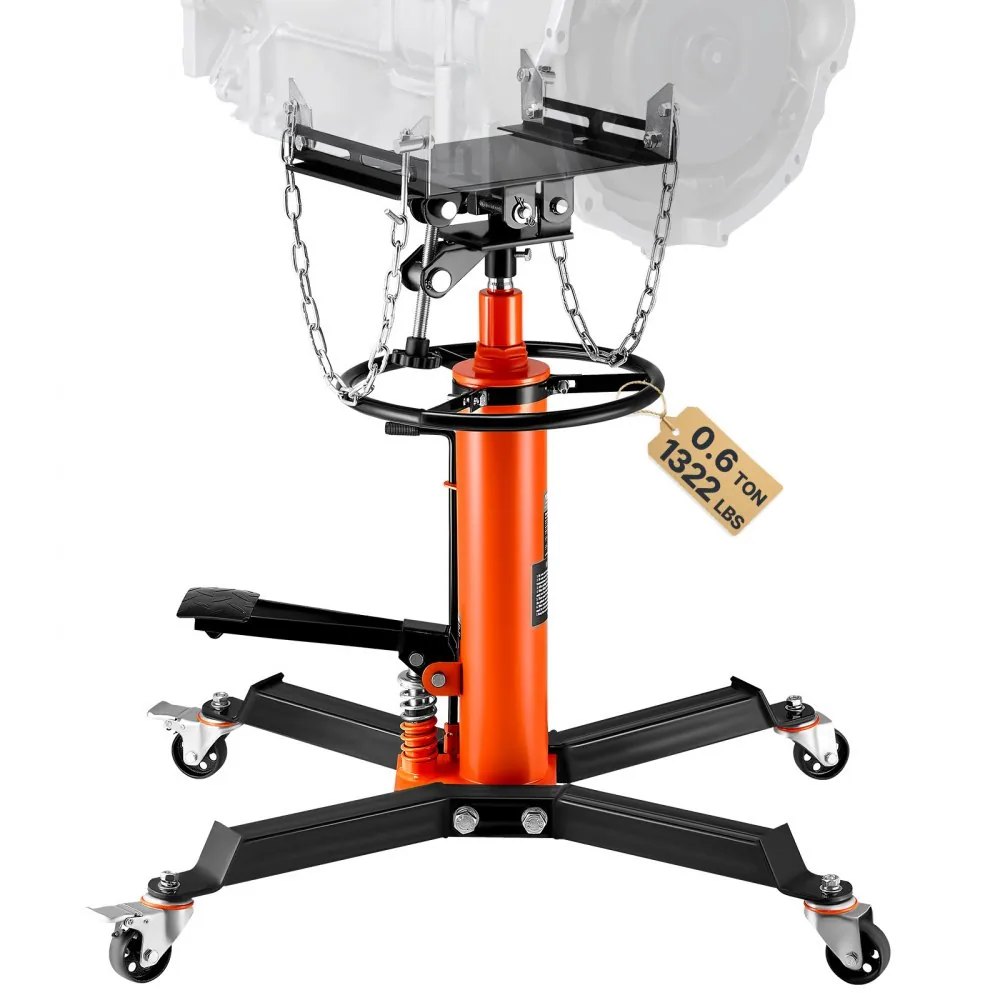

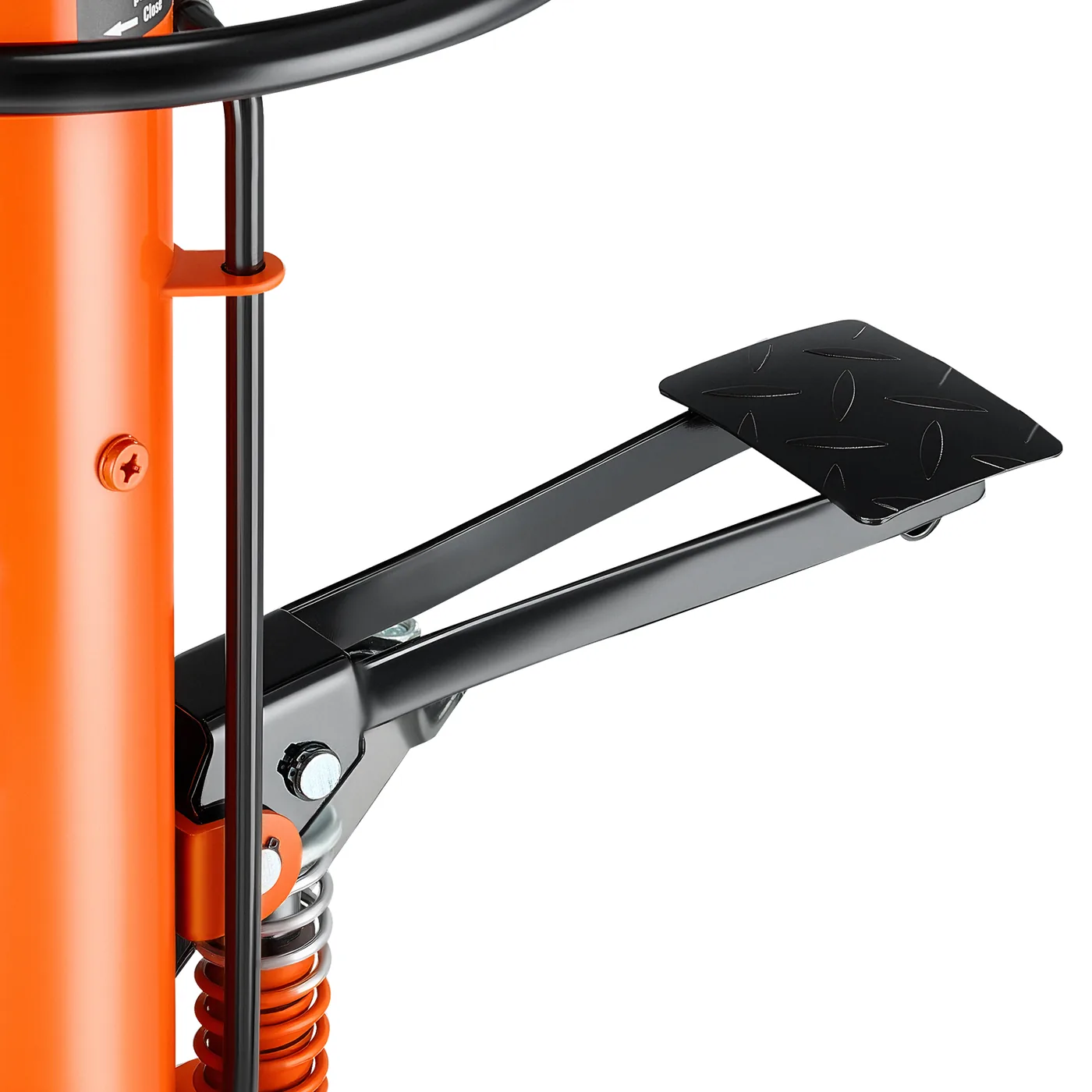

VEVOR Transmission Jack, 1322 LBS Hydraulic Telescoping Transmission Jack, 32″-67″ High Lift Floor Jack Stand with Foot Pedal, 360° Swivel Wheel
Original price was: $209.90.$188.90Current price is: $188.90.Wholesale price, no minimum order
Key Features
68.5 in (1,740 mm) maximum lift
1,322 to 1,660 lb capacity range
92.6 lb (42 kg) steel floor stand measuring 24.6 x 30.9 x 34.3 in

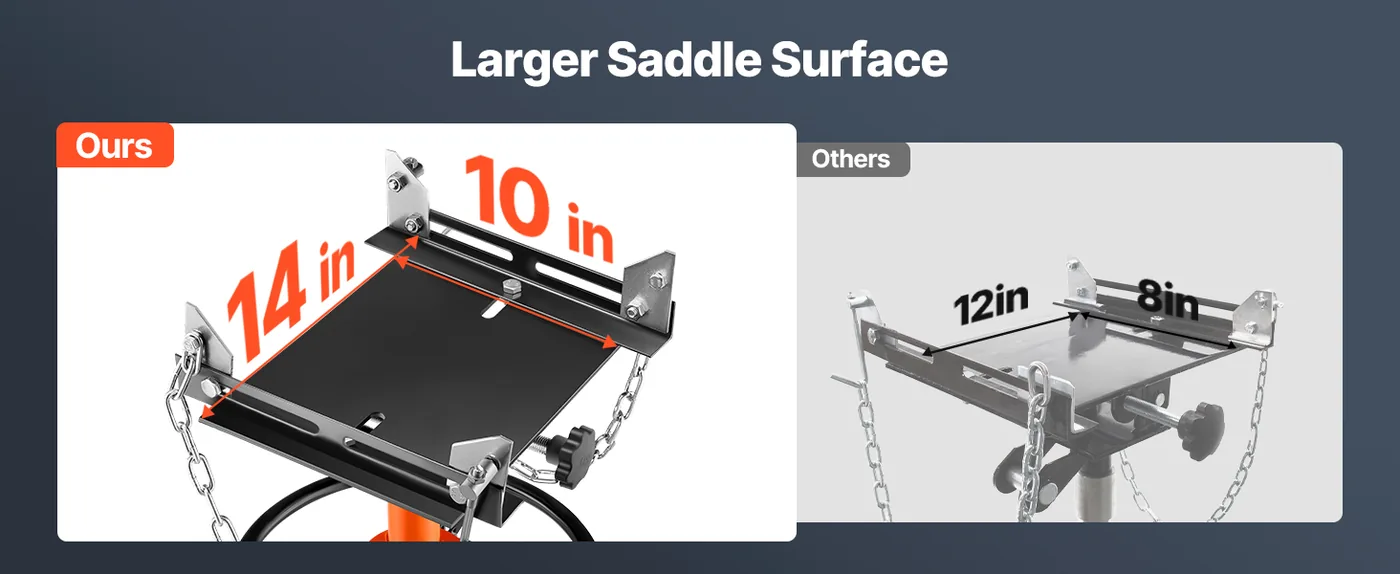

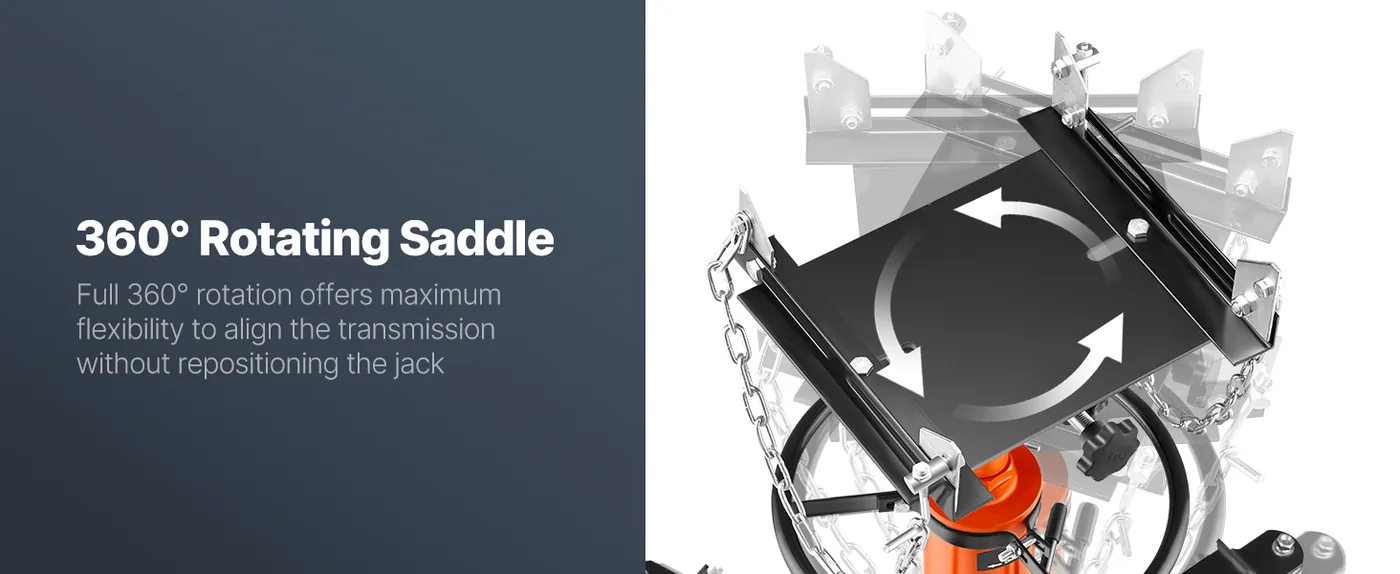

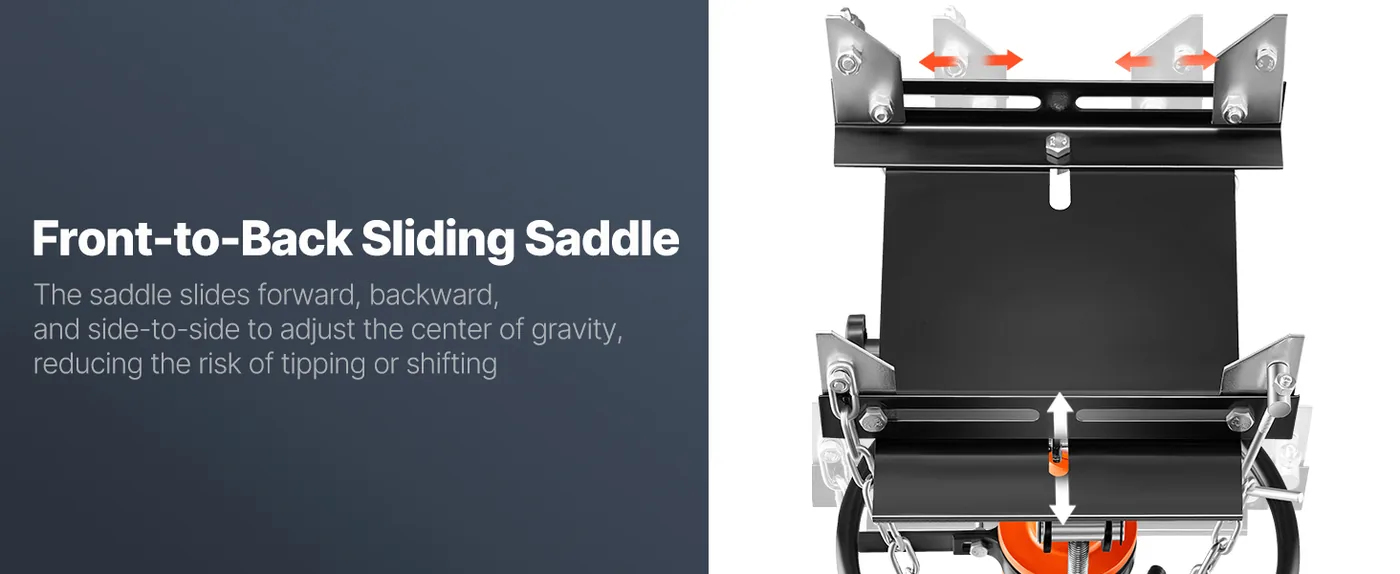

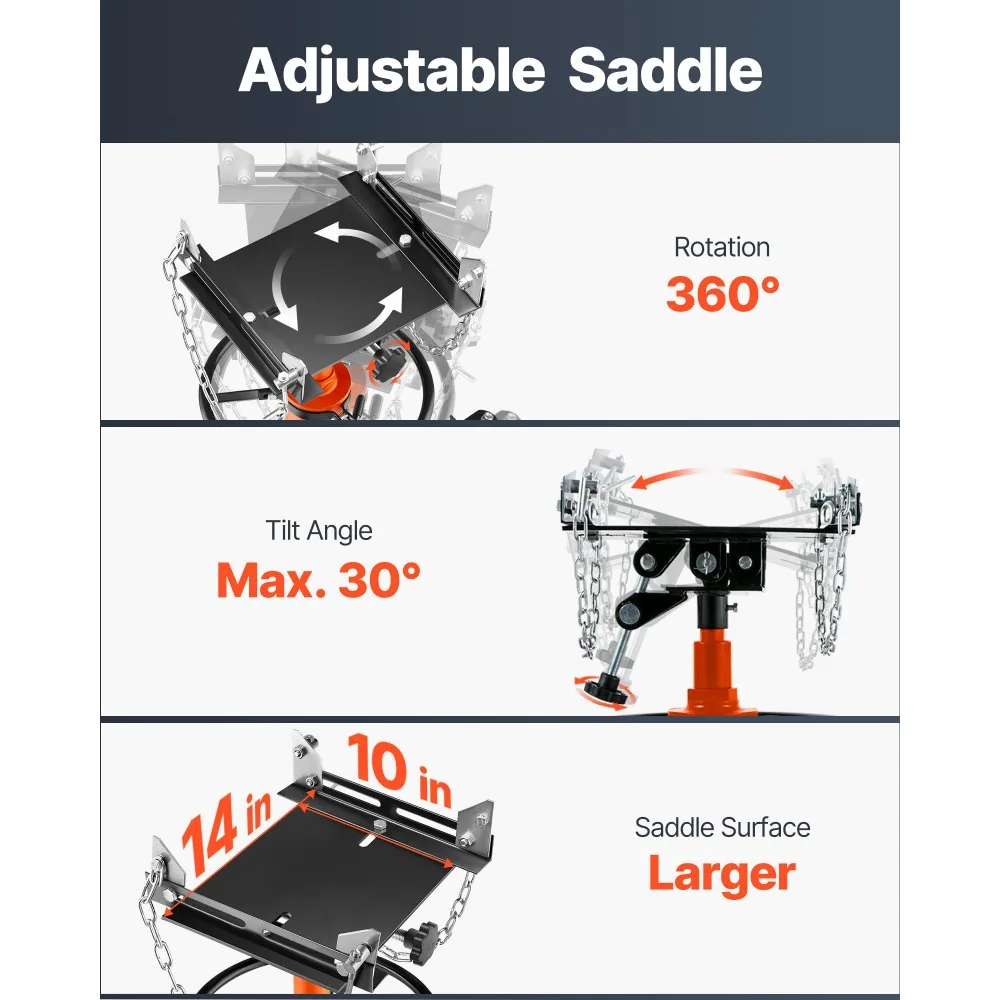

360 degree swivel saddle
Adjustable height within a narrow working band
In stock
Quick Answer

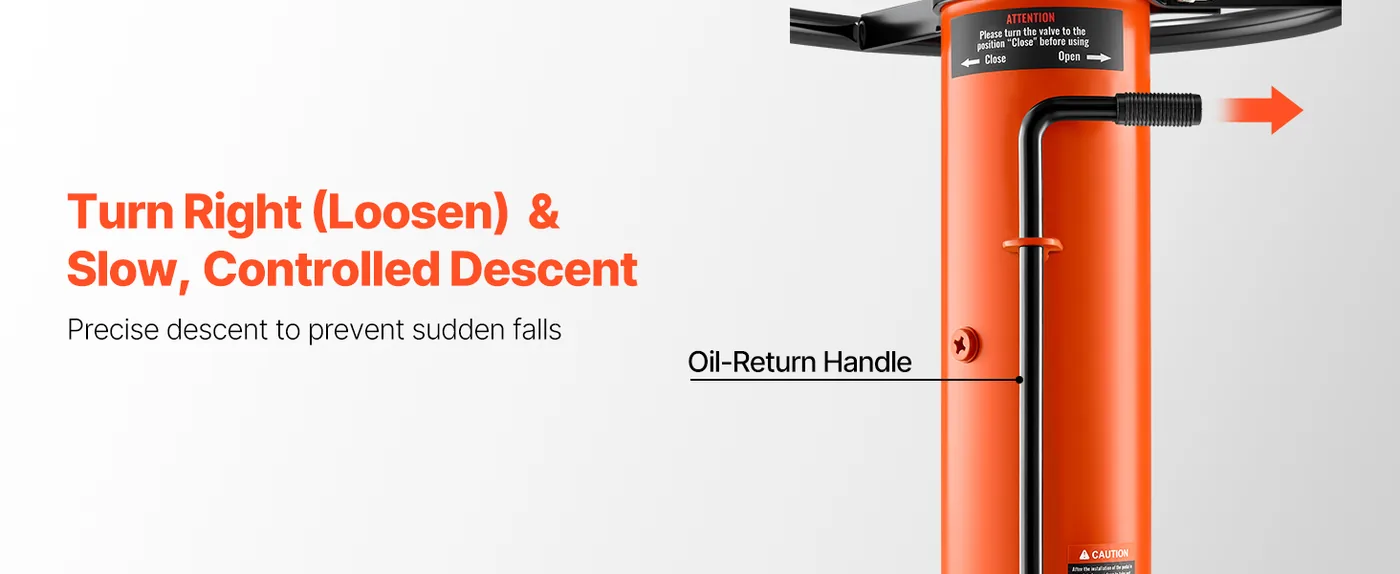

This tall transmission jack ships free from a US warehouse with 30-day returns and manufacturer warranty. It supports 1,322 to 1,660 lb through a 34.3 to 68.5 in (870 to 1,740 mm) lift on a 92.6 lb (42 kg) steel floor stand. The 360 degree swivel saddle positions the transmission on the way down, and the stabilised stand keeps the load steady at full height.
Description
At a Glance
A floor-stand transmission jack with the tallest reach here: 1,322 to 1,660 lb from 34.3 up to 68.5 in, on a 92.6 lb steel base. It is the model for a tall shop bay or a two-post lift, where the transmission comes out well above waist height and a low jack has nothing to meet it with.

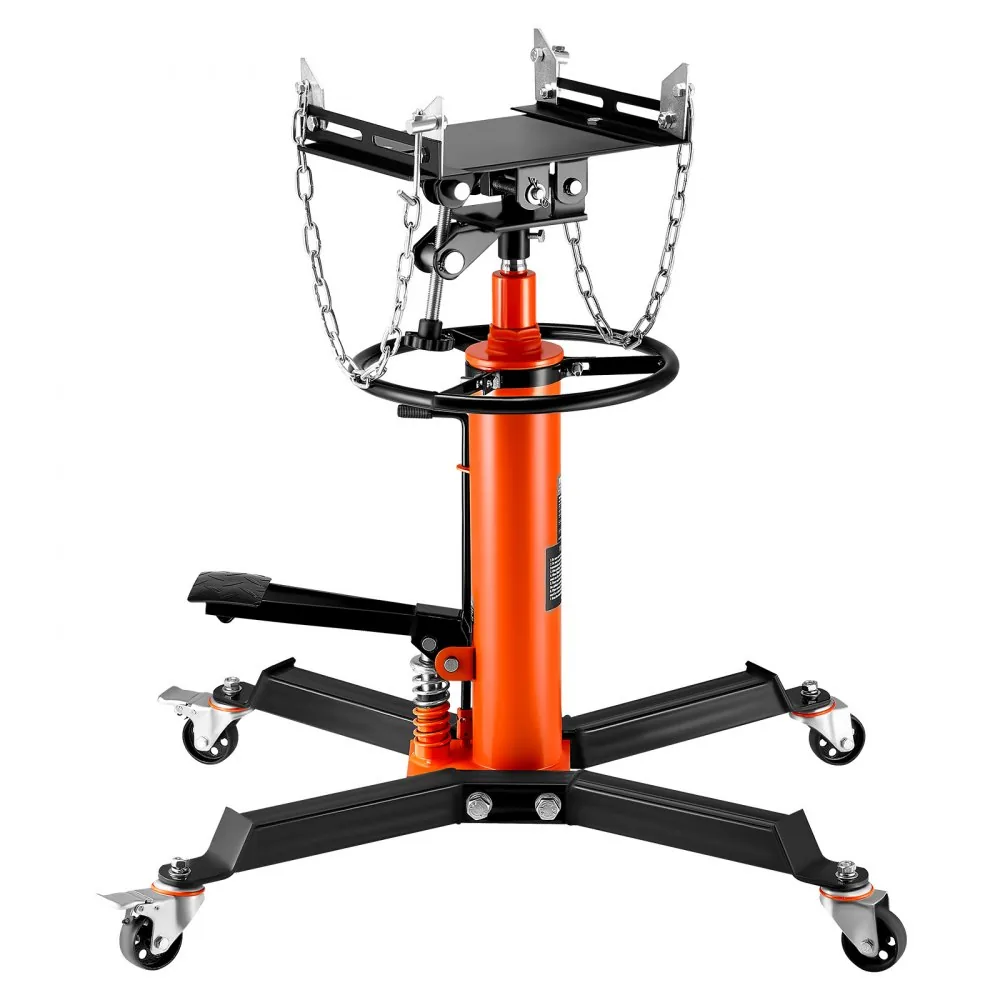

Transmission Jack: HTJ-1322, 1,322-1,660 lb, 34.3-68.5 in Lift
This VEVOR hydraulic telescoping transmission jack supports 1,322-1,660 lb with a lifting range of 34.3-68.5 in (870-1,740 mm). The floor-stand design measures 24.6 x 30.9 x 34.3 in (625 x 785 x 870 mm), weighs 92.6 lb (42 kg), and the 360° swivel saddle positions transmissions in tall shop bays.
Which Transmission Jack Is This For?
For tall truck bays and heavier units, this HTJ-1322 model lifts higher than the 33.5-67 in jacks and carries up to 1,660 lb. If your shop has standard ceiling height and lighter loads, the 1,100 lb 2-stage jacks are more compact and easier to move around.

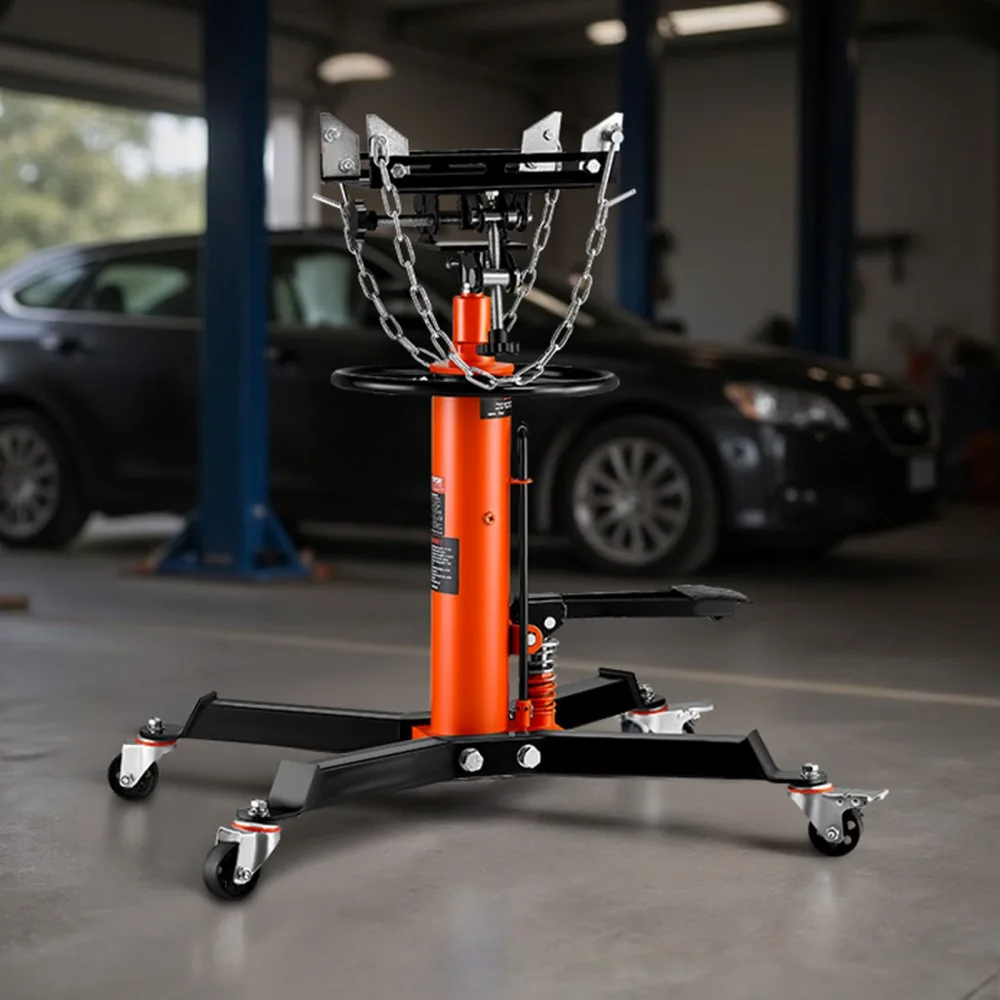

VEVOR Transmission Jack Orange and Black 1322 lbs Overview

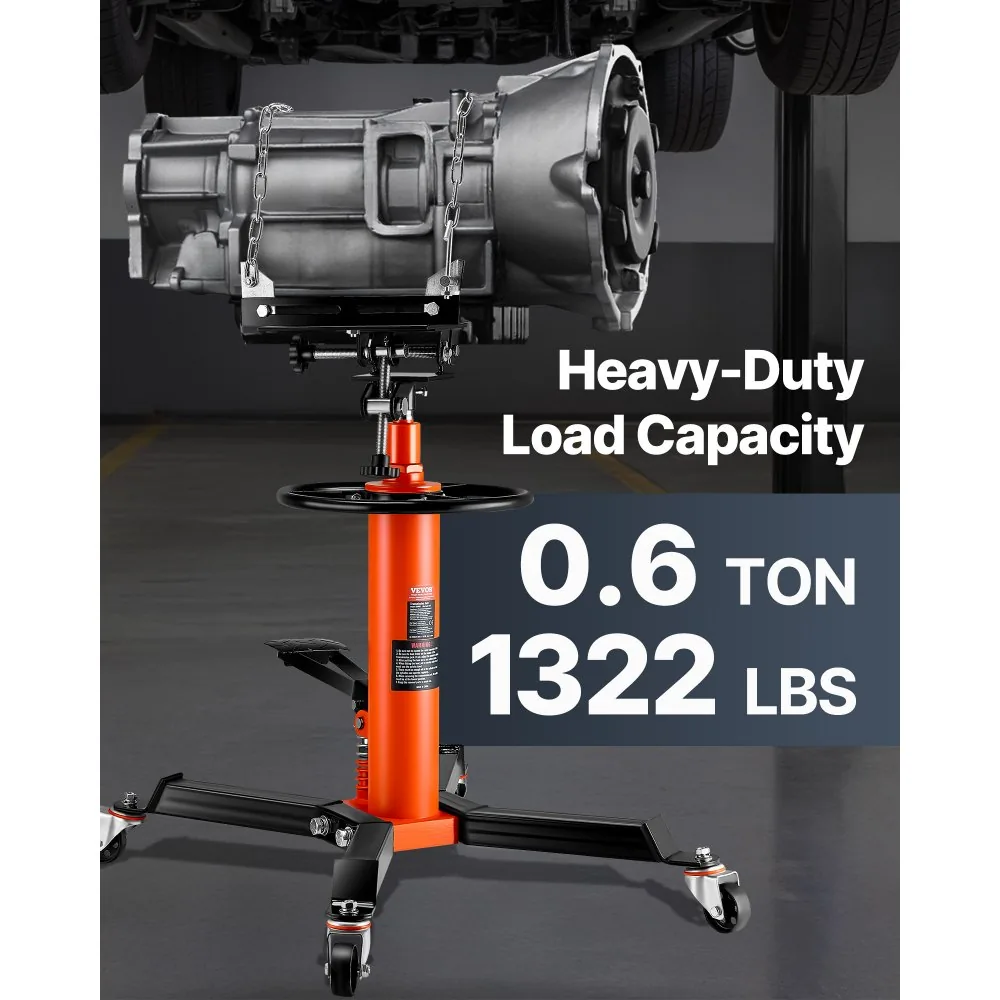

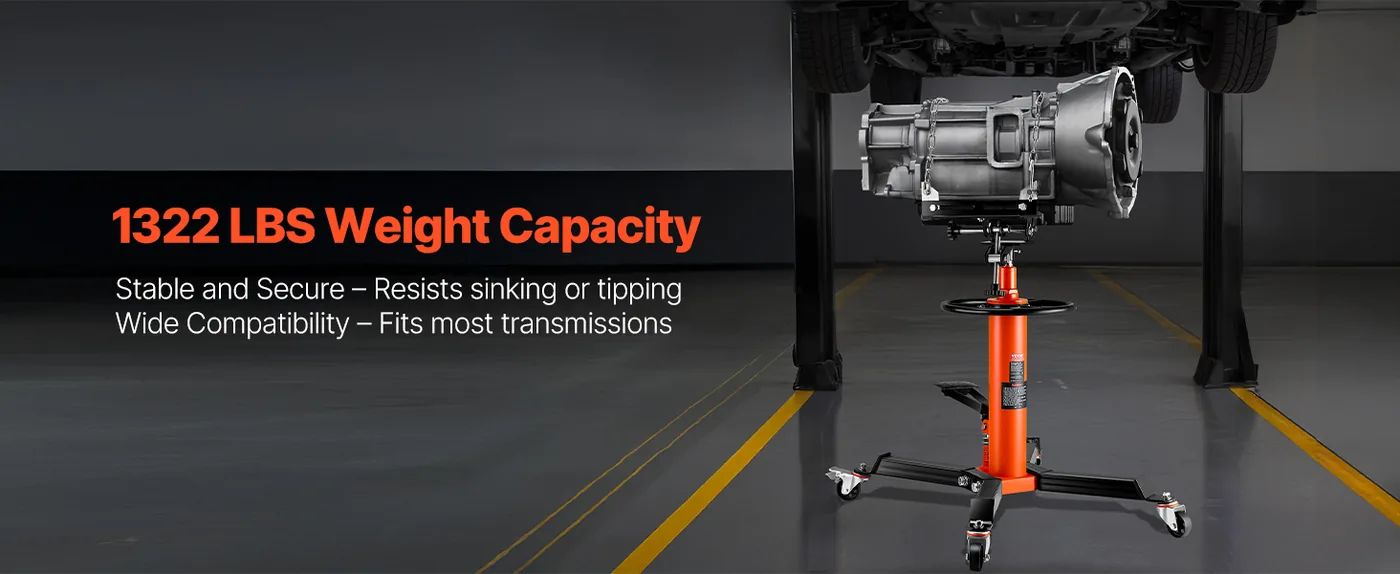

1322 lbs-1660 lbs Bearing Capacity: The VEVOR Transmission Jack – your ultimate solution for installing or removing transmissions from most automobiles and light trucks.
Performance & Applications
Key Features

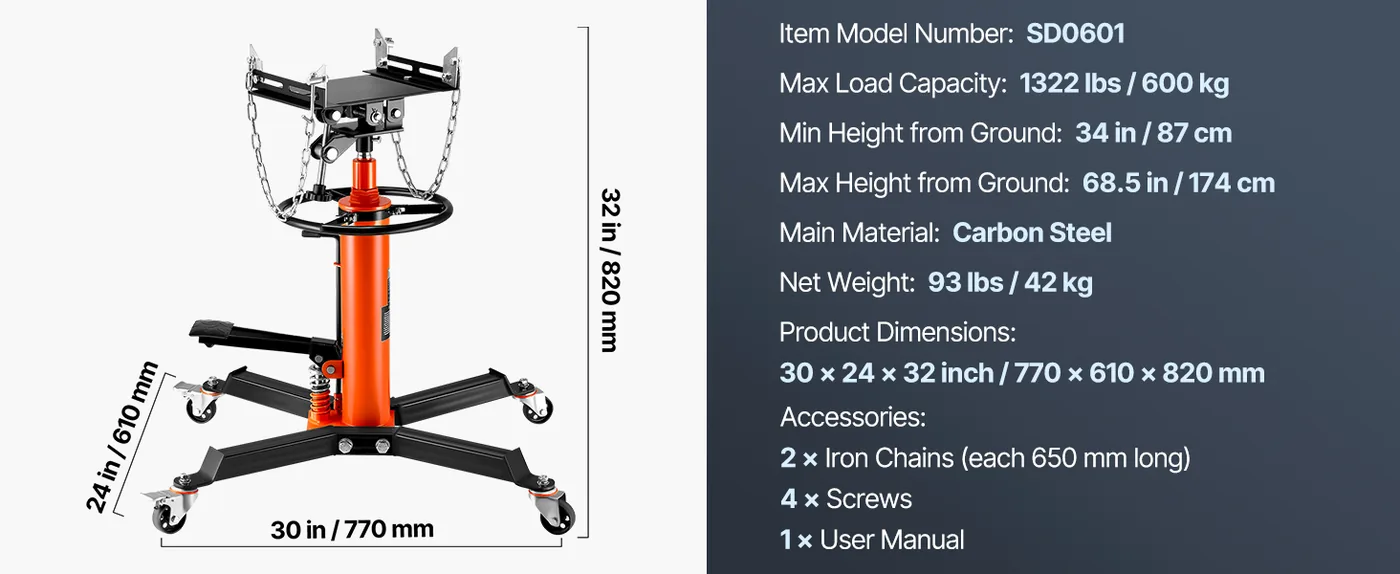

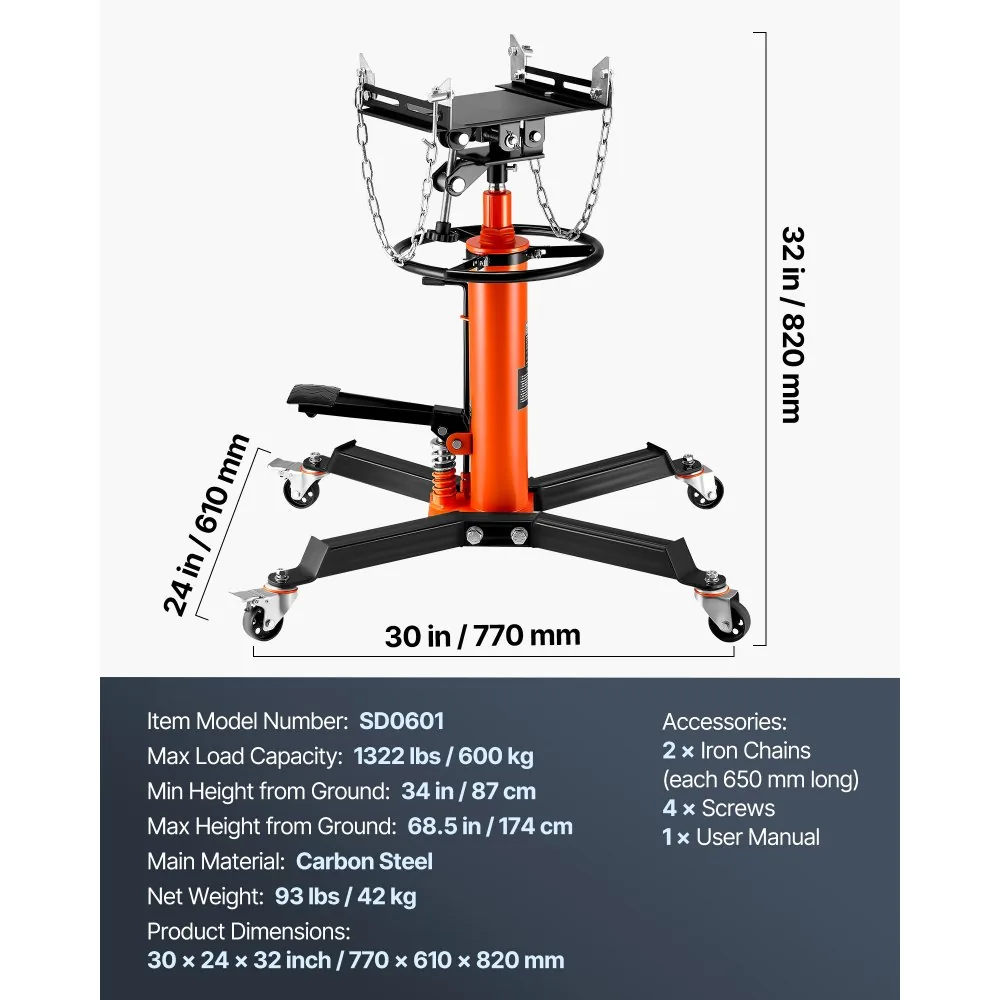

Specifications
| Brand | VEVOR |
| Item Model Number | HTJ-1322 |
| Product Size | 24.6 x 30.9 x 34.3 inch/625 x 785 x 870 mm |
| Capacity Range | 1322 lbs - 1660 lbs |

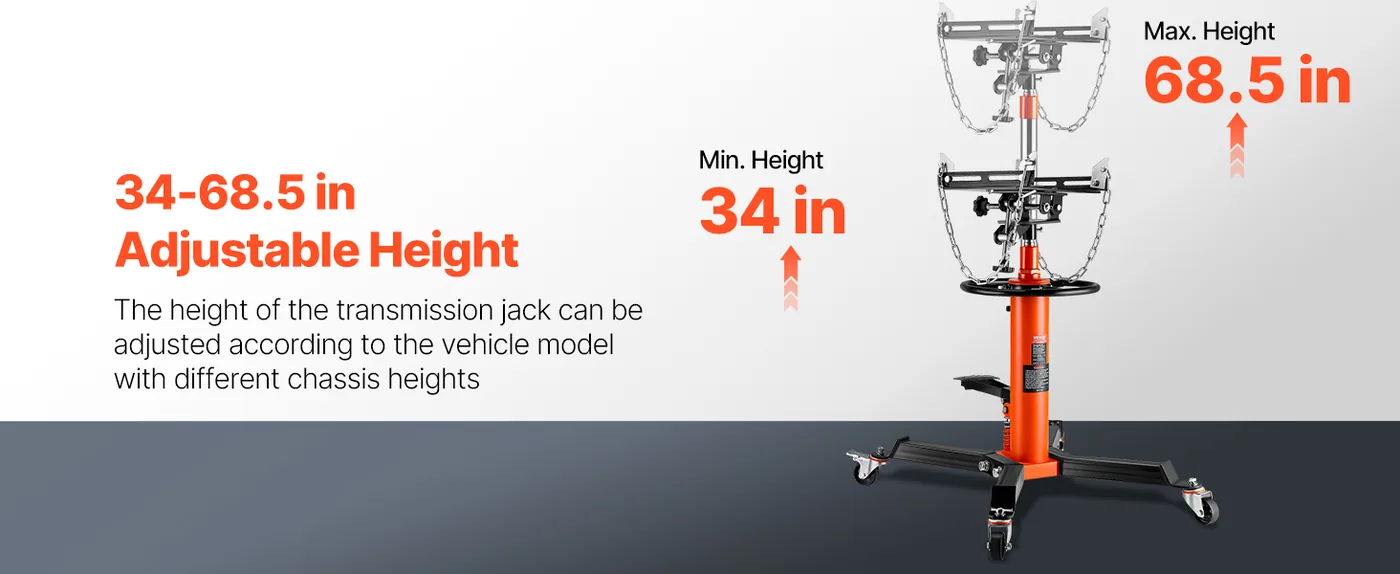

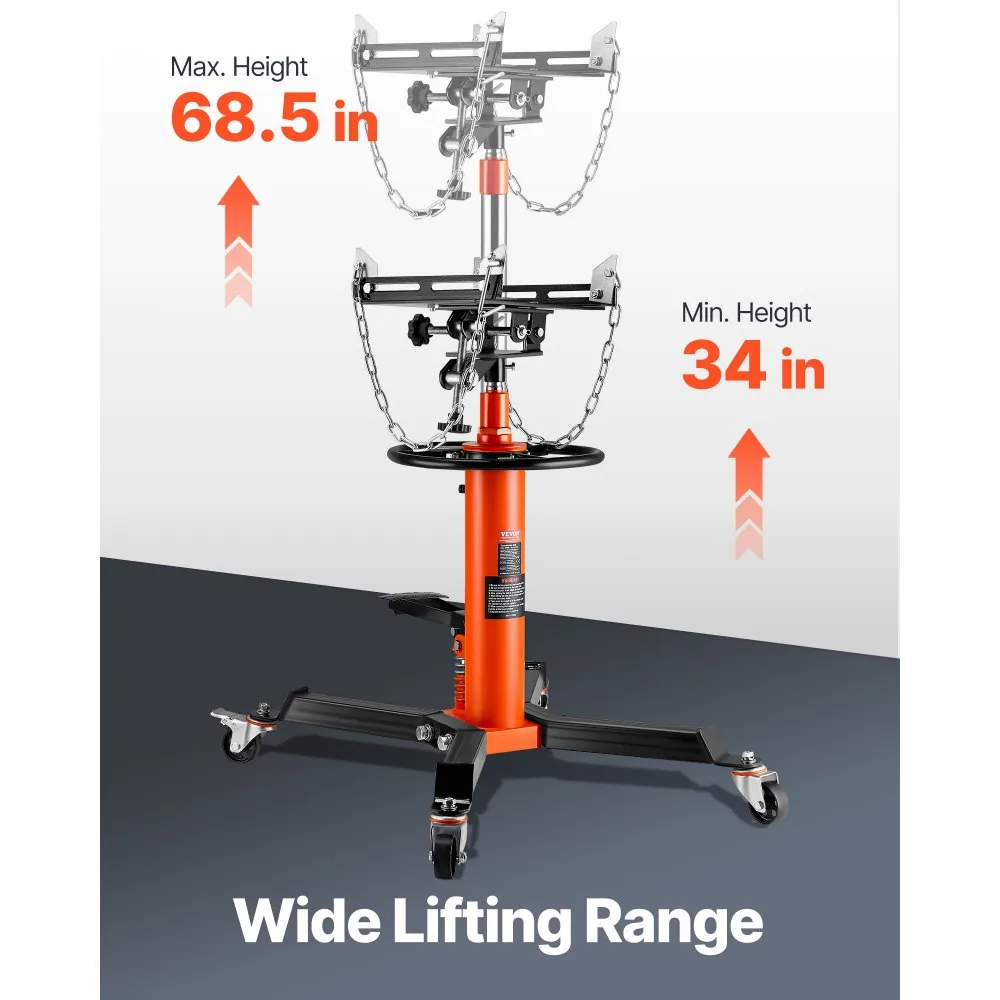

| Lifting Range | 34.3-68.5 inch/870-1740 mm |
| Net Weight | 92.6 lbs/42 kg |
Be the first to review “VEVOR Transmission Jack, 1322 LBS Hydraulic Telescoping Transmission Jack, 32″-67″ High Lift Floor Jack Stand with Foot Pedal, 360° Swivel Wheel”
Frequently Asked Questions
Q: Why does the height of a transmission jack matter?
A: Because a transmission does not come out at a fixed height. On a lift, it sits well above 34 in; on stands, it is much lower. A jack that tops out around 34 in cannot meet a transmission on a lift at all, which is when people start stacking blocks under a jack.
Q: What capacity do I need for a truck transmission?
A: Read the figure from a service manual rather than guessing. The 1,322 to 1,660 lb band covers heavier automatics and light truck gearboxes; a commercial or 4x4 heavy-duty unit may sit outside it.
Q: Is a floor-stand design more stable than a rolling jack?

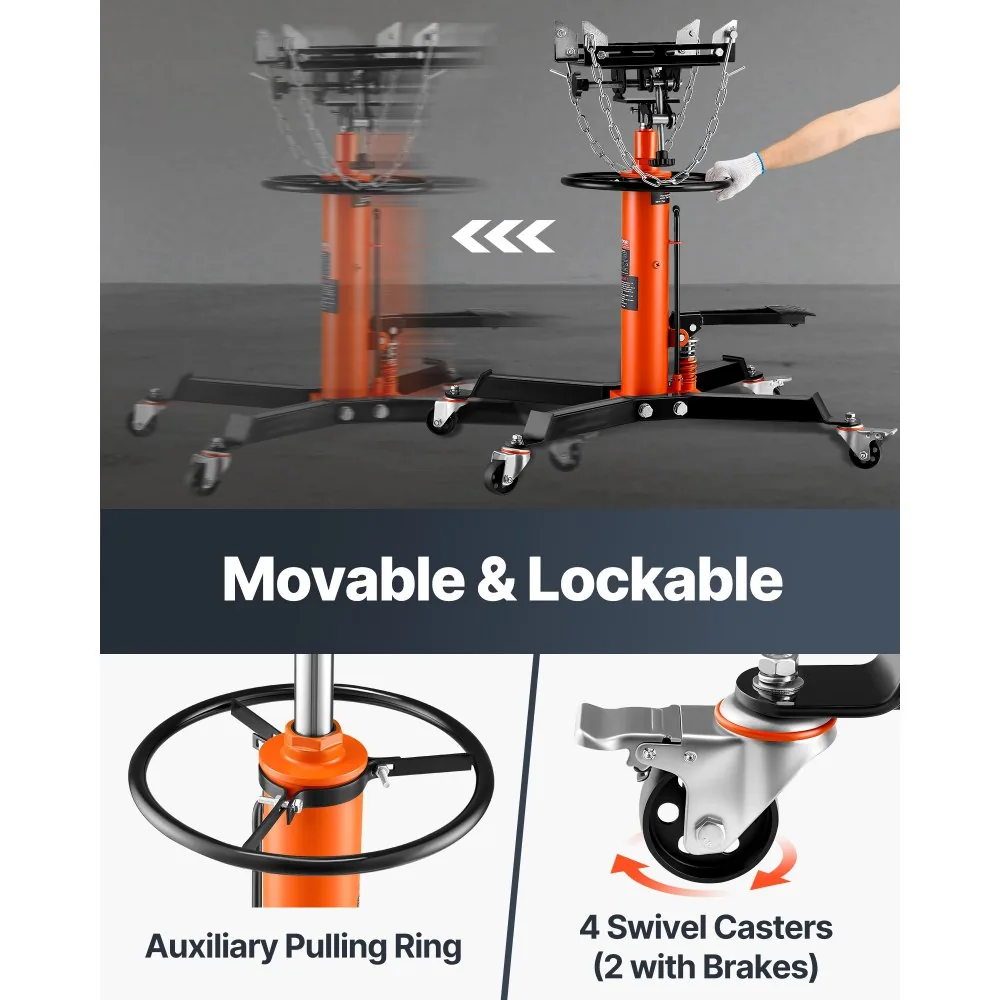

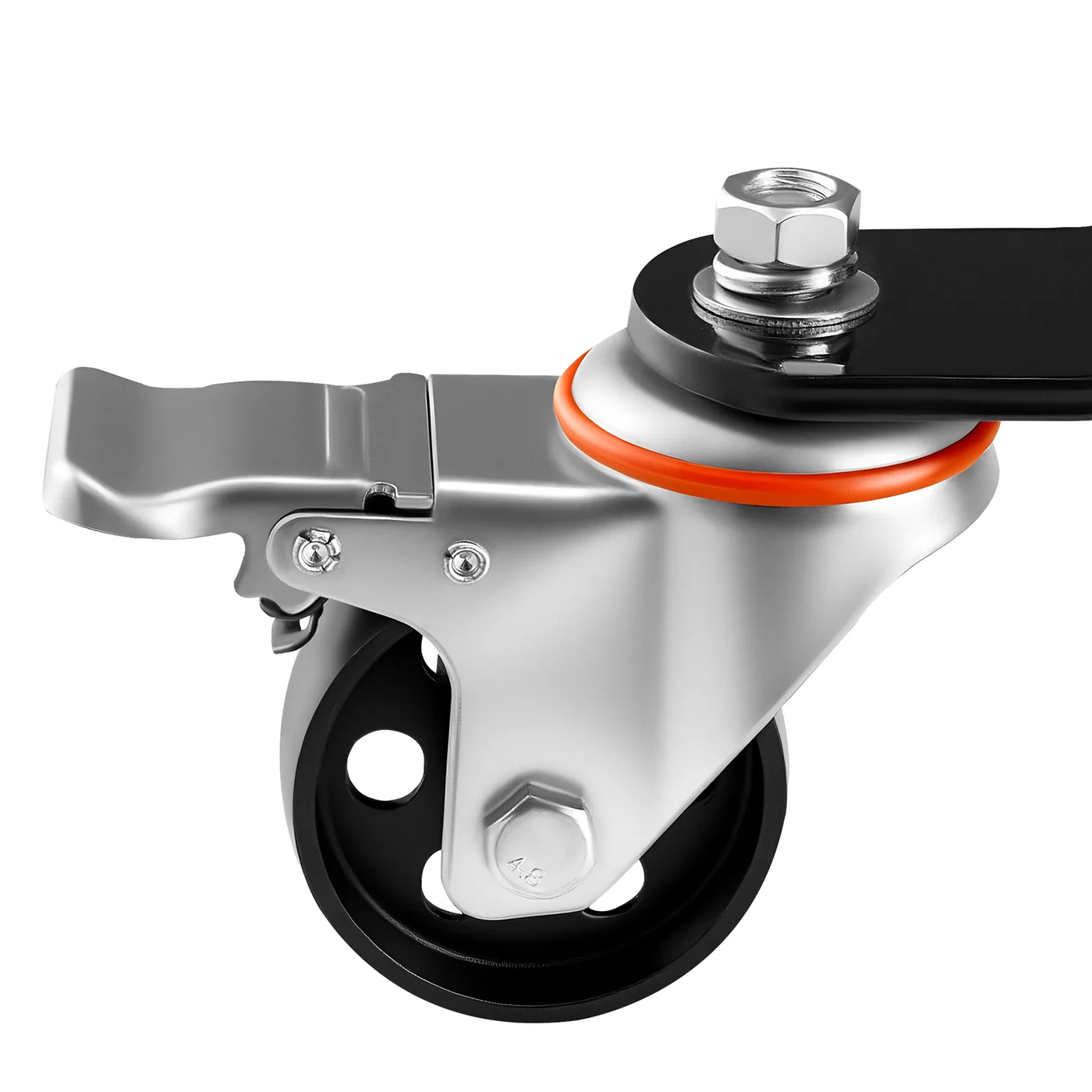

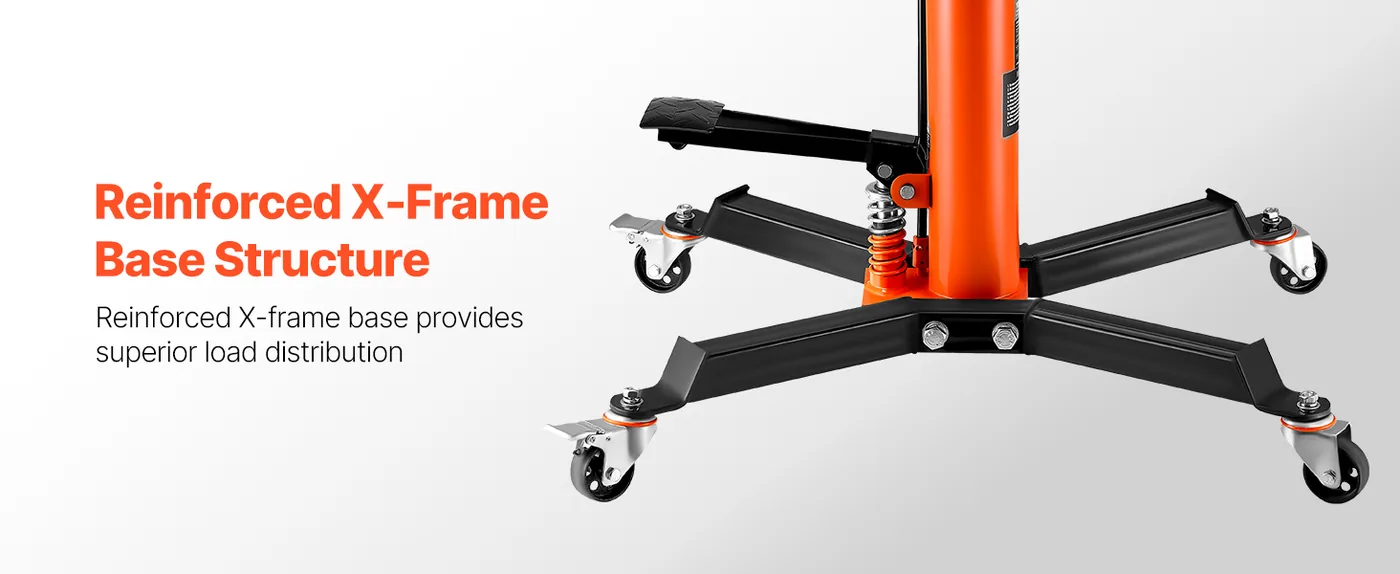

A: The wide base is what gives it stability at 68.5 in, and the weight is in the base rather than the column. It still rolls, so locking the casters before the load goes on matters as much as it does on any other transmission jack.
Q: Can one person get a transmission back in with this?
A: Usually, with the swivel saddle doing the alignment work. Support the engine, chain the transmission to the saddle, and use the fine height adjustment to bring the input shaft to the clutch. Forcing it in with the bolts is what damages the shaft and the clutch.
Q: How do I keep the transmission from tipping?
A: Chain it to the saddle before anything else happens, keep the saddle under the centre of mass rather than one end of the case, and lock the casters. A transmission that is off-centre on the saddle will tip as the column comes down.
Q: Do I need to support the engine at the same time?
A: Yes. Once the bellhousing is unbolted the transmission stops supporting the back of the engine, so the engine needs support before the last bolt comes out.
Q: What maintenance does the jack need?
A: Keep the column and ram clean, store it with the load off, and check the reservoir if the lift feels soft. Grit on a telescopic column is what makes it bind on the way up.
Q: How much space does it take when not in use?
A: The base is 24.6 x 30.9 in and the stand is around 34 in tall at rest, so it parks against a wall rather than eating a bay.
