10x20 Carport Replacement Cover, White No-Hem Top

VEVOR 10 x 20 ft Carport Replacement Canopy Cover, White, No-Hem Top

$48.90Wholesale price, no minimum order

Key Features

Frame fit

designed for a 10 x 20 ft peak-roof frame measuring 600-610 cm / 19.69-20.01 ft long, 300-305 cm / 9.84-10.01 ft wide, with a slope up to 175 cm / 5.74 ft.

Fabric

210g PE plastic woven fabric, listed by VEVOR as waterproof and UV protected.

Attachment

40 aluminum eyelets with ball bungees for even tension.

Scope

replacement top cover only; the metal frame and rigid panels are not included.

Fit limit

intended for peak-roof frames, not arch-shaped frames.

In stock

📦 Free shipping to the 48 contiguous US states · Ships within 1-3 business days, arrives in 2-5 business days · 30-day returns and manufacturer warranty

SKU: CKPB10X20FTB3Z2RRV0 Category: Outdoor & Camping

Quick Answer

This is a replacement top cover only for a 10 x 20 ft carport frame, sized for frames about 600-610 cm long and 300-305 cm wide. VEVOR builds it from 210g PE woven fabric with 40 aluminum eyelets and lists it as waterproof and UV protected. The frame and rigid panels are not included, and VEVOR states that the cover is not suitable for arch-shaped frames.

Description

At a Glance

10 x 20 ft white carport replacement fabric for a peak-roof frame. Fits 600-610 cm / 19.69-20.01 ft long and 300-305 cm / 9.84-10.01 ft wide, with a maximum slope length of 175 cm / 5.74 ft. Replacement top cover only; frame not included.

10 x 20 ftCover size600-610 cm / 19.69-20.01 ft x 300-305 cm / 9.84-10.01 ftFits frame length x width175 cm / 5.74 ftMaximum slope length210g PE plastic woven fabricMaterial40Aluminum eyeletsWhiteColor10 lb / 4.5 kgNet weightReplacement top cover onlyScope

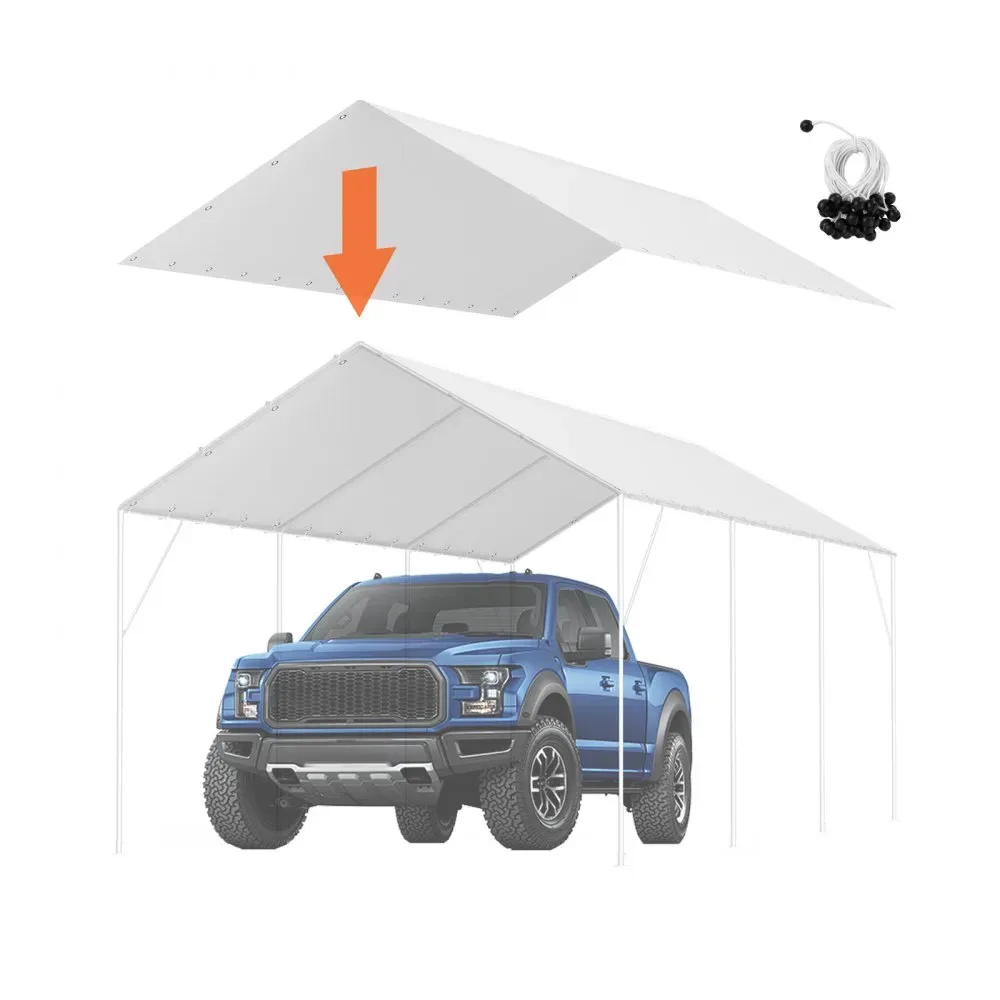

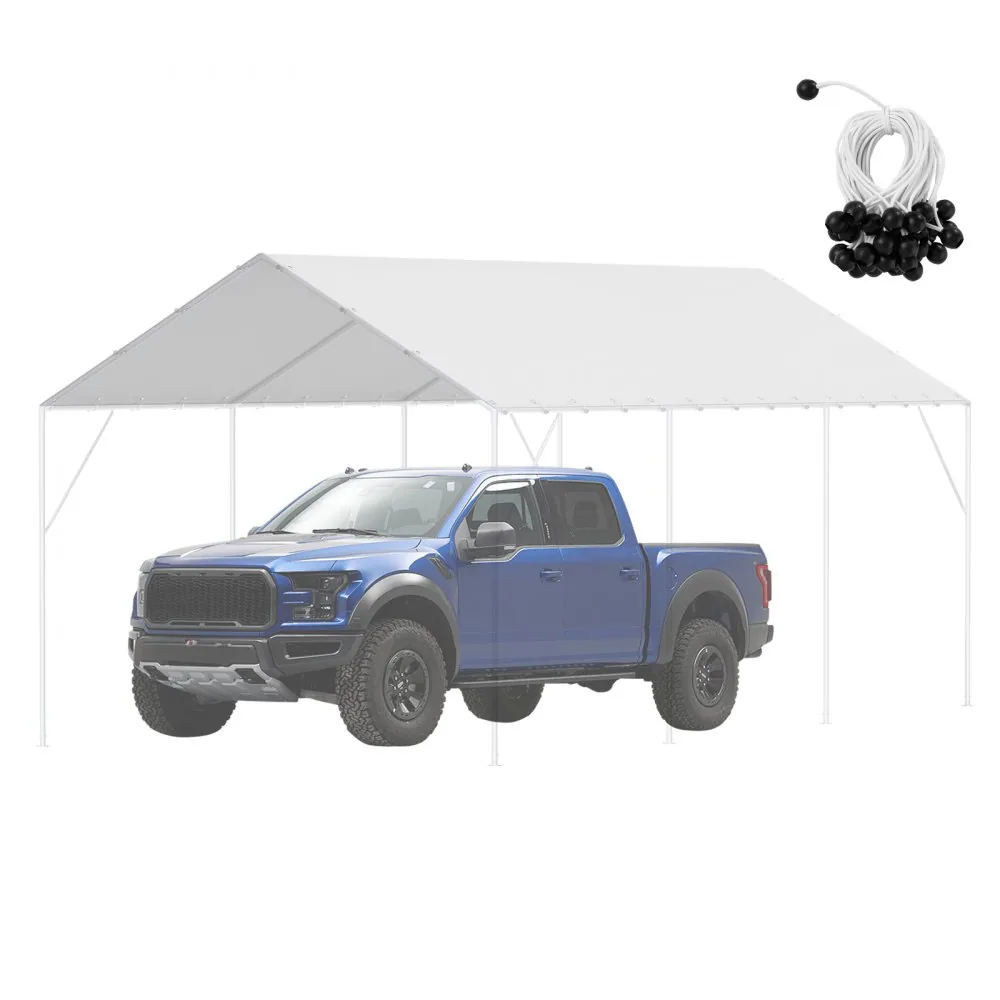

10 x 20 ft Carport Replacement Cover, Top Only

This white replacement cover is made for a 10 x 20 ft carport frame. It replaces the roof fabric while you keep the existing frame, which is the practical choice when the cover has torn, faded, or started to leak but the structure is still sound.

Frame not included. This listing is for the replacement canopy fabric only. The metal frame, legs, and any rigid panels are sold separately. VEVOR also states that this cover is not suitable for arch-shaped frames.

A 10×20 cover that matches the frame, not just the label

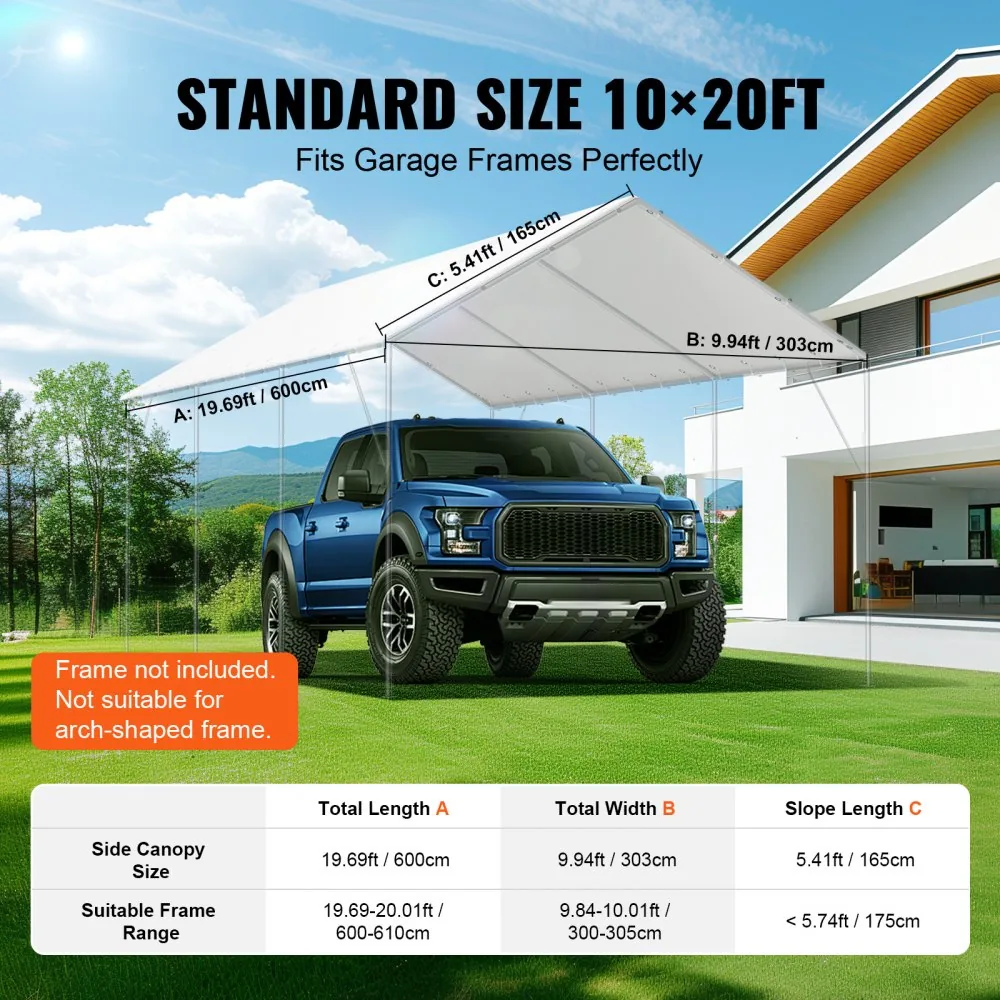

Carport sizes vary between brands, and a frame sold as 10×20 can measure slightly differently at the base and at the roof peak. VEVOR publishes a fit range for this cover. Measure the frame before ordering and compare the published length, width, and slope. VEVOR’s no-hem size chart does not publish a total height for this version, so check the roof peak against your frame as well.

Frame length: 600-610 cm / 19.69-20.01 ft
Frame width: 300-305 cm / 9.84-10.01 ft
Maximum slope length: 175 cm / 5.74 ft

If the frame falls outside these ranges, this cover is the wrong fit even when the frame is advertised as a 10×20 carport.

Fabric and weather protection

VEVOR uses 210g PE plastic woven fabric with 40 aluminum eyelets. VEVOR lists this version as canopy fabric without a hem. The cover weighs 10 lb / 4.5 kg. VEVOR lists the fabric as waterproof and UV protected for outdoor use.

Waterproof fabric is not the same as a sealed roof. Rain can enter where the cover meets the frame, around the eyelets, and at seams. Keep the cover tensioned so water runs off instead of pooling, and check the roof after heavy rain.

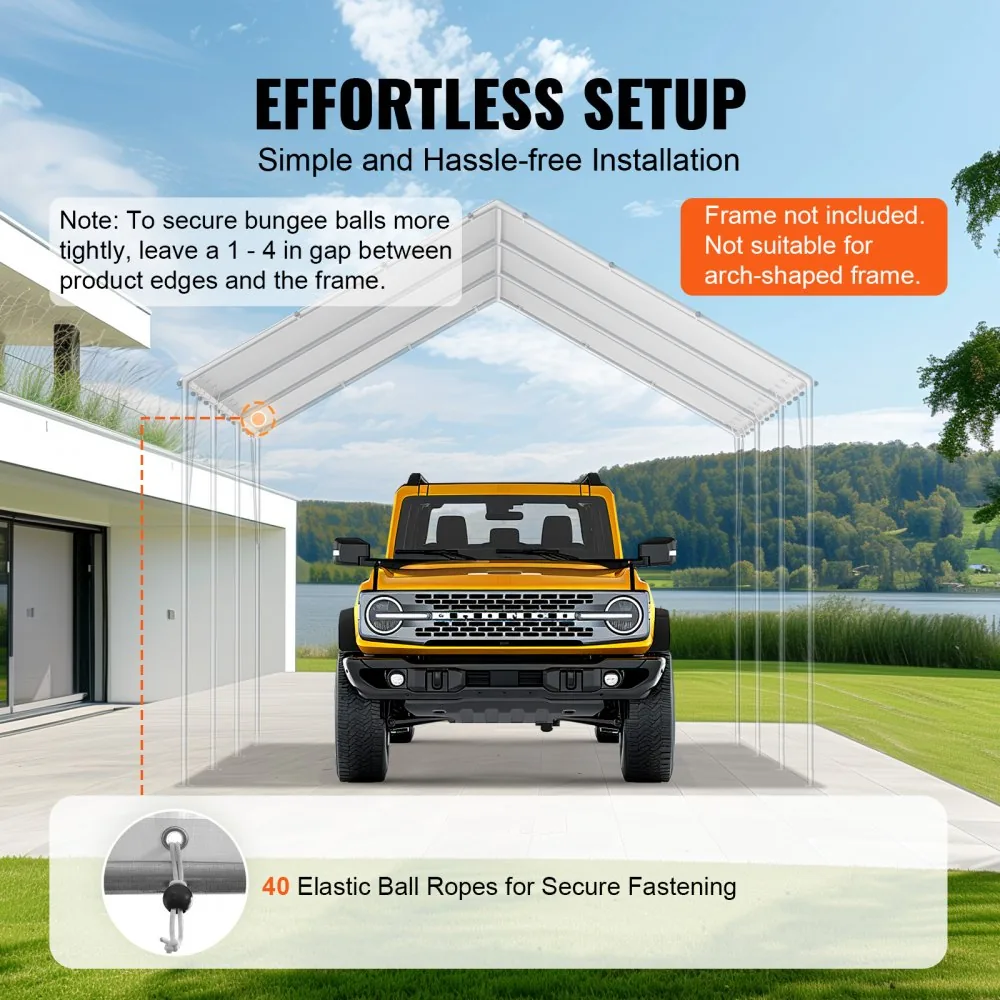

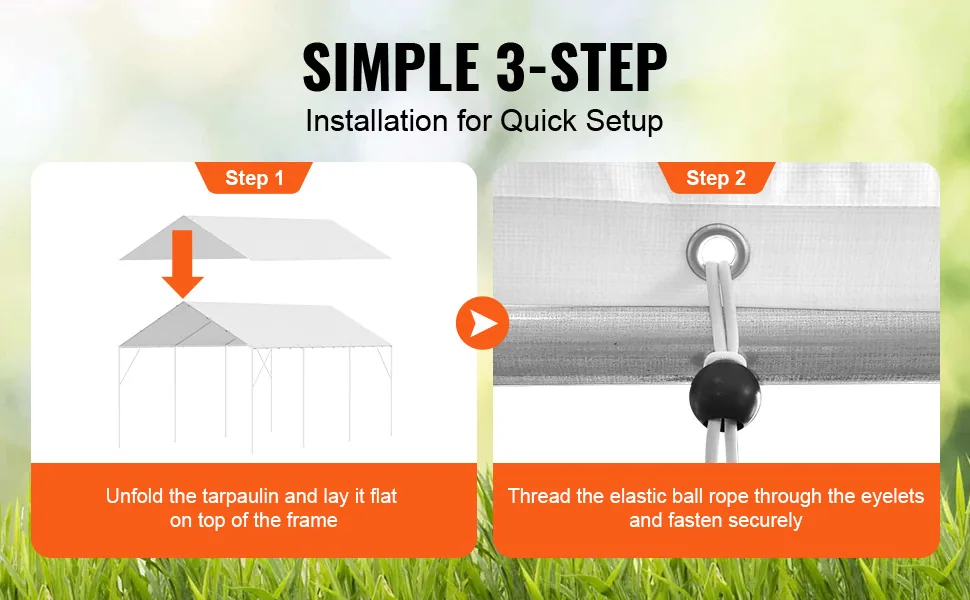

Installation and tensioning

Set up and inspect the frame first. Remove sharp edges, loose bolts, or damaged tubes that could rub the fabric.
Unfold the cover over the frame and align the peak and corners before attaching anything.
Thread the ball bungees through the aluminum eyelets and around the frame. Work from the middle toward the ends so the cover stays centered.
Tension evenly. A cover that is tight on one side and loose on the other will flap and wear at the eyelets.

Two people make the job easier on a 20 ft cover. Install it on a calm day, and keep the fabric clear of the frame’s sharp corners while pulling it into place.

Weather, storage, and realistic expectations

Remove snow rather than letting it sit, check the bungees after storms, and take the cover down or loosen it when high winds are forecast. The listing does not state a snow load rating. In winter, store the cover dry and folded away from sharp objects. A replacement cover extends the life of a sound frame; it does not turn a light-duty carport into a permanent building.

Why this version

This is the no-hem version. VEVOR lists the fabric as canopy fabric without a hem, and it weighs 10 lb / 4.5 kg, lighter than the strap-edge 10 x 20 top at 13.6 lb. Choose it when you want the lighter white top for a compatible peak-roof frame and do not need the perimeter strap edge.

Ordering

One unit, wholesale pricing. The listed price is our wholesale rate for a single cover. There is no minimum order quantity and no separate tier price, so you can order one replacement or several for a row of frames at the same unit price.

Performance & Applications

Specifications

Brand	VEVOR
Model	SXYQCPBBW10X20
Aluminum Eyelets	40
Main Material	210g PE Plastic Woven Fabric
Color	White
Net Weight	10lbs/4.5kg
Product Dimensions	20 x 10 x 2.8ft / 6000 x 3300 x 850 mm

0 reviews for VEVOR 10 x 20 ft Carport Replacement Canopy Cover, White, No-Hem Top

Customer reviews

No reviews found

No reviews match your current filters. Try adjusting or clearing your filters to see more reviews.

Be the first to review “VEVOR 10 x 20 ft Carport Replacement Canopy Cover, White, No-Hem Top” Cancel reply

Your email address will not be published. Required fields are marked *

Review Title (optional) 0 / 100

Your rating *

Your review *

Add Photos/Videos (optional)

Drag & drop files here or browse

Images: up to 5 files, max 5MB each | Videos: up to 2 files, max 50MB each, 60 sec max

Name

Post this review anonymously

Frequently Asked Questions

Q: Does this include the carport frame?

A: No. This is the replacement canopy cover only. The metal frame, legs, and any rigid panels are not included.

Q: What frame size does this 10x20 cover fit?

A: VEVOR's no-hem size chart lists a frame range of 600-610 cm / 19.69-20.01 ft long and 300-305 cm / 9.84-10.01 ft wide, with a maximum slope length of 175 cm / 5.74 ft. It does not publish a total height for this version, so confirm the roof peak against your frame before ordering.

Q: Is it suitable for an arch-shaped carport frame?

A: No. VEVOR states that this cover is not suitable for arch-shaped frames. It is intended for a peak-roof frame.

Q: Are ball bungees included?

A: VEVOR lists ball bungees with this cover. The frame is not included. Use the supplied bungees through the aluminum eyelets and check the package on arrival.

Q: Is the cover waterproof?

A: VEVOR lists the 210g PE woven fabric as waterproof and UV protected. Treat it as a weather cover, not a sealed roof: seams and eyelets can let water through, and pooled water can stretch the fabric.

Q: Can I leave it up in winter?

A: The listing does not state a snow load rating. Remove snow promptly and do not let it accumulate. Check the bungees and tension after high wind.

Q: Will it fit a ShelterLogic or Costco frame?

A: Only if that frame matches the published length, width, height, side height, and slope range and is not arch-shaped. VEVOR does not certify this cover for another brand's frame.

Q: How do I install it?

A: Inspect the frame, unfold the cover, align the peak and corners, then thread ball bungees through the eyelets and tension from the middle outward. Two people make a 20 ft cover easier to center.

Q: Can I use it as a standalone tarp?

A: No. It is cut for a 10x20 carport frame. A flat tarp has different eyelet placement and will not tension the same way.

Q: What is the difference between this no-hem cover and the strap-edge version?

A: VEVOR lists this one as canopy fabric without a hem, while the strap-edge version has a reinforced perimeter strap. This no-hem top weighs 10 lb / 4.5 kg; the white strap-edge 10 x 20 top weighs 13.6 lb / 6.15 kg. Both use 210g PE fabric and 40 aluminum eyelets.
