VEVOR 18 in Basketball Rim, Split Rim, 2 Springs, with Net
$46.90Wholesale price, no minimum order
Integrated$32.99
Split$46.90Key Features
Regulation size
Split rim with 2 springs
Steel and finish
Mounting
Replacement ready
In stock
Quick Answer

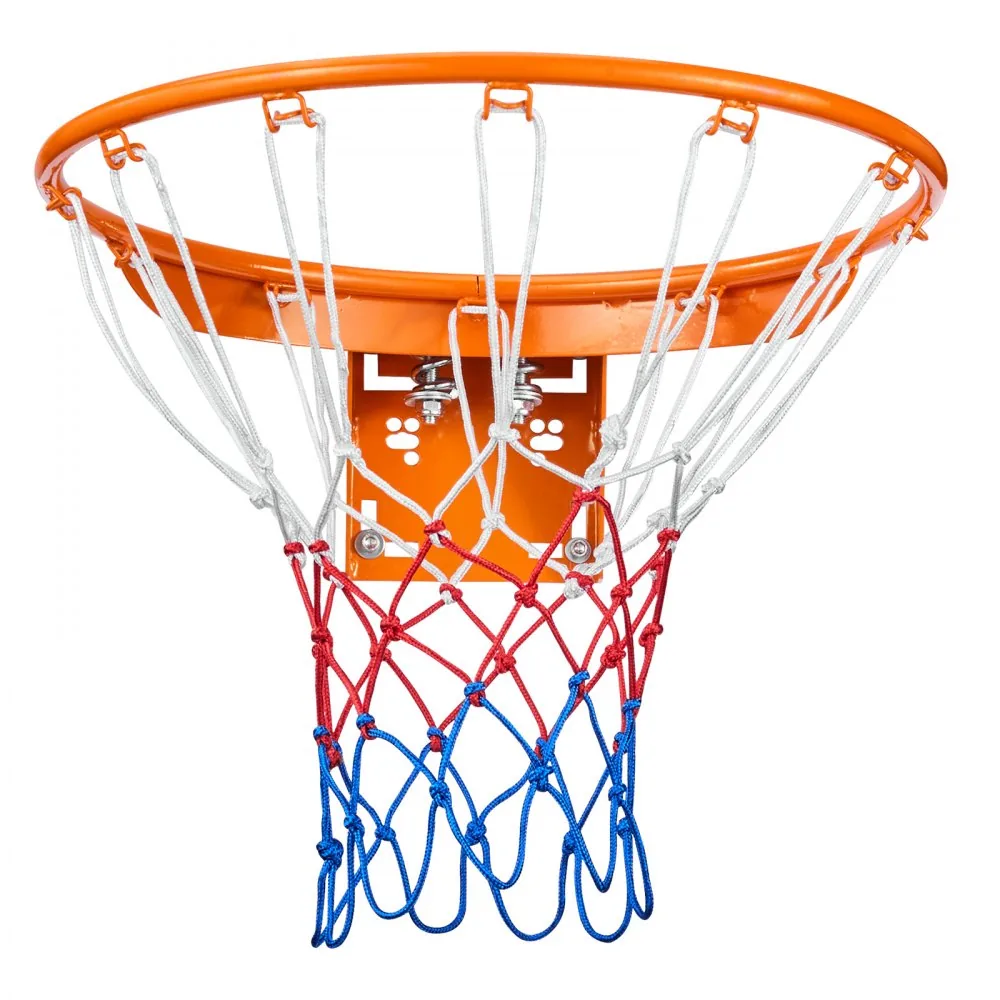

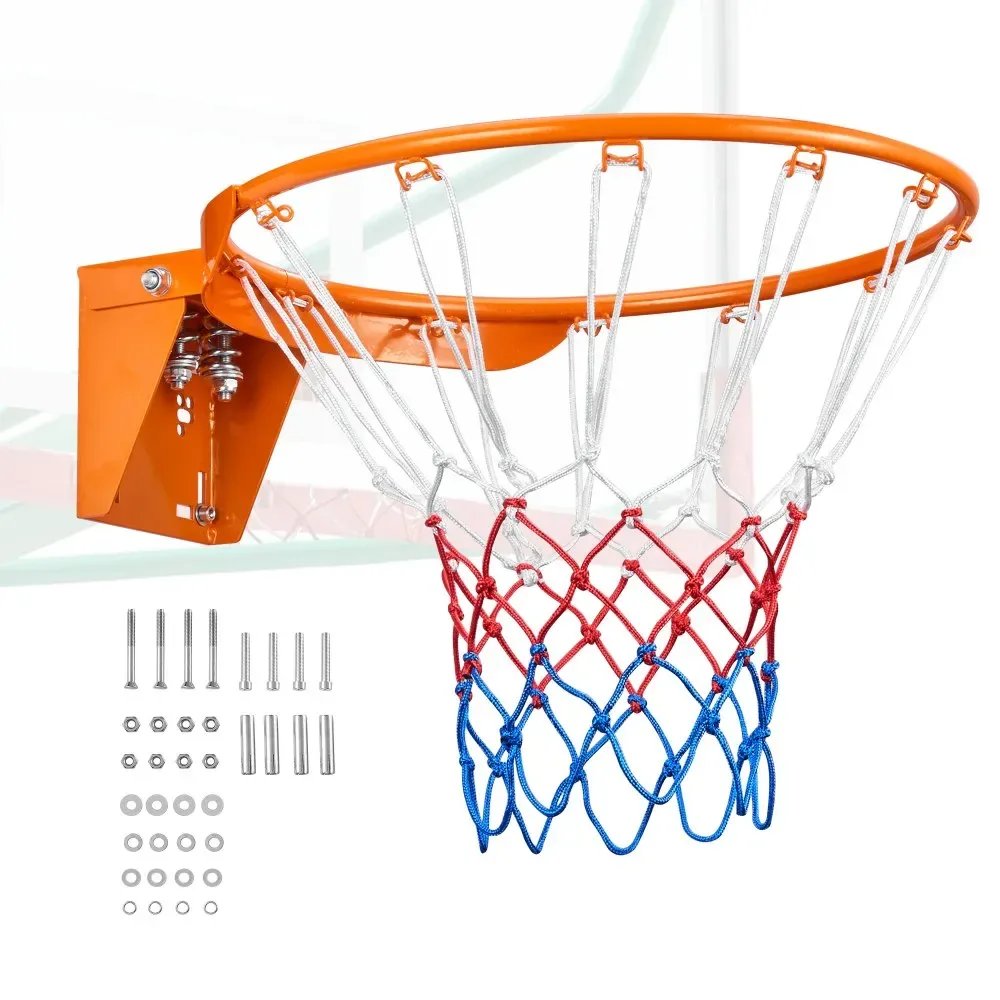

This is an 18-inch replacement basketball rim with a 16 mm steel tube and a nylon net. It is a split rim with 2 springs, finished in orange. The box includes four expansion bolts and four short bolts and one net. The backboard is not included.
Description
At a Glance
18 in split rim in Q235 steel with a 16 mm tube, 2 springs, orange oil-spray finish, nylon net and mounting bolts. Backboard not included.

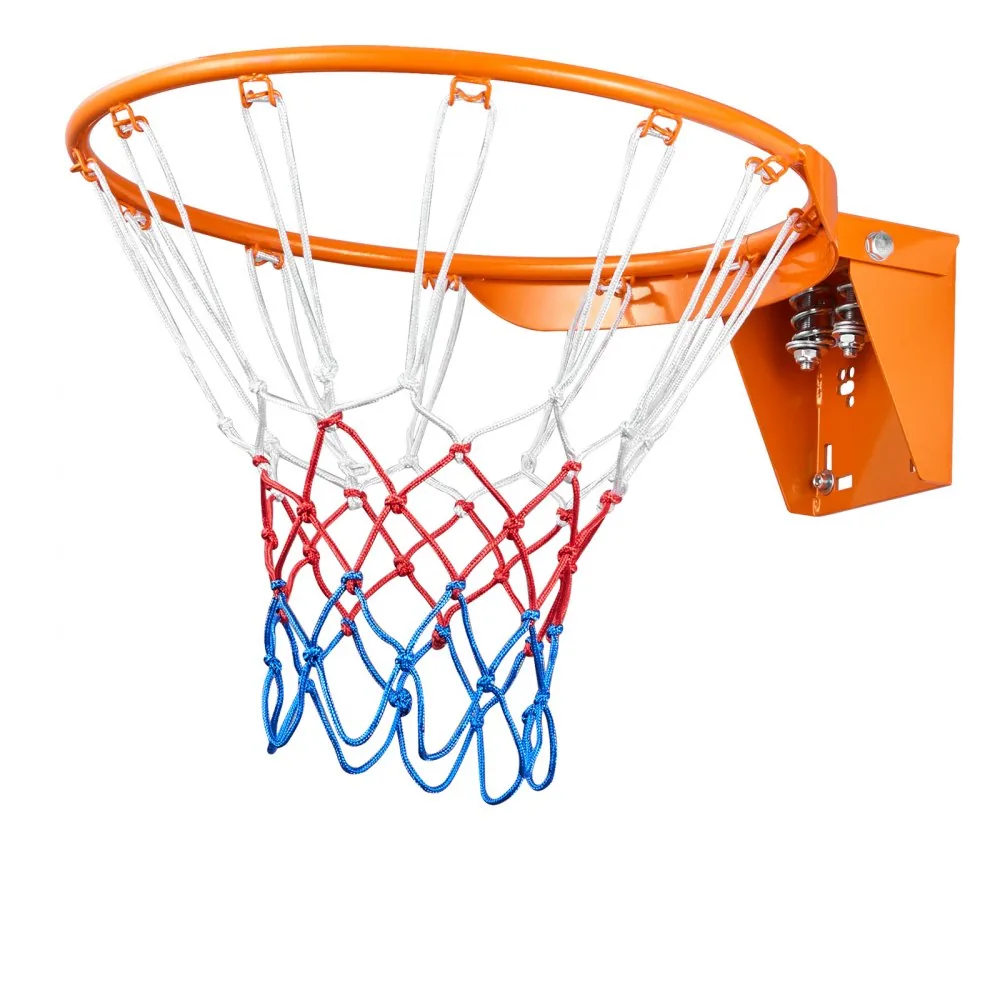

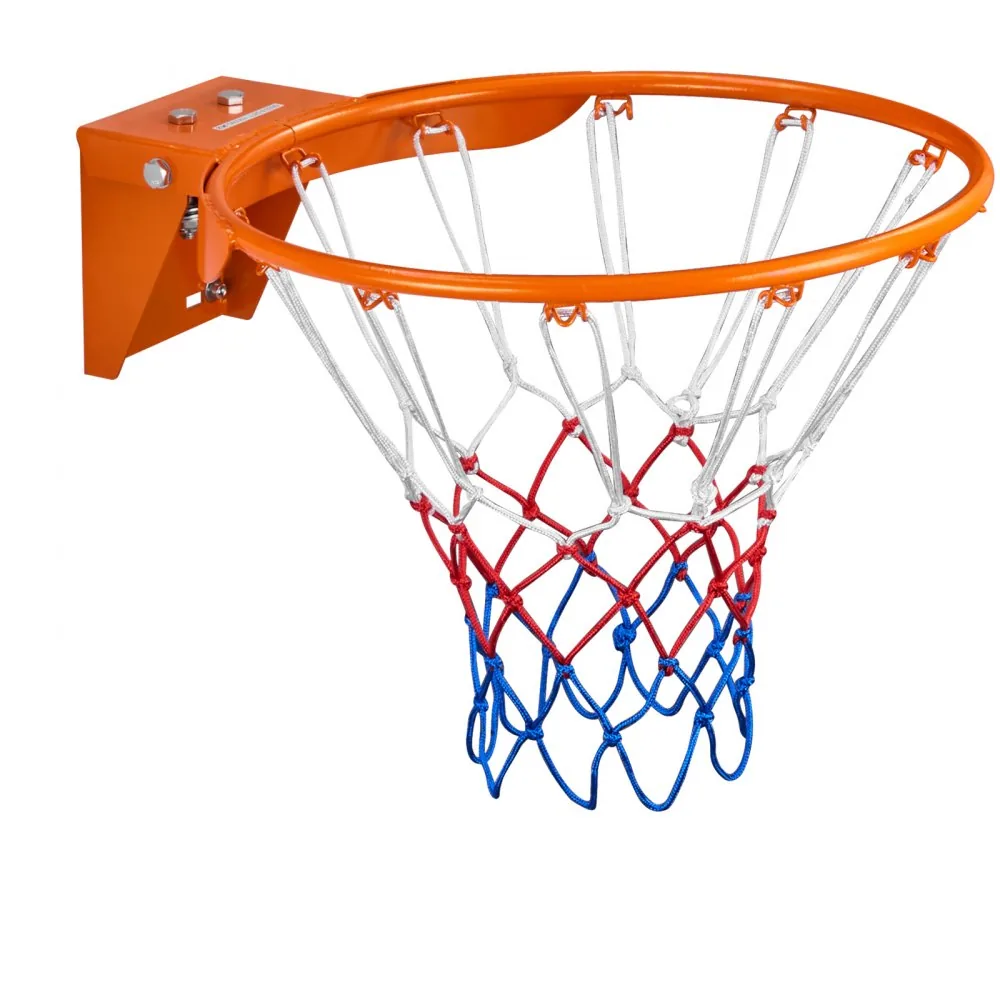

18 Inch Split Rim Basketball Rim, 2 Springs
A replacement rim has to do two things: fit the backboard and absorb the load of a missed dunk. This 18-inch rim uses a 16 mm Q235 steel tube, an orange oil-spray finish and a nylon net. It is the split rim version with 2 springs.
The backboard is not included. This is the rim, net and mounting bolts. Check the bolt spacing on your backboard before ordering, and measure the height of the old rim so the new one goes back at the same level.

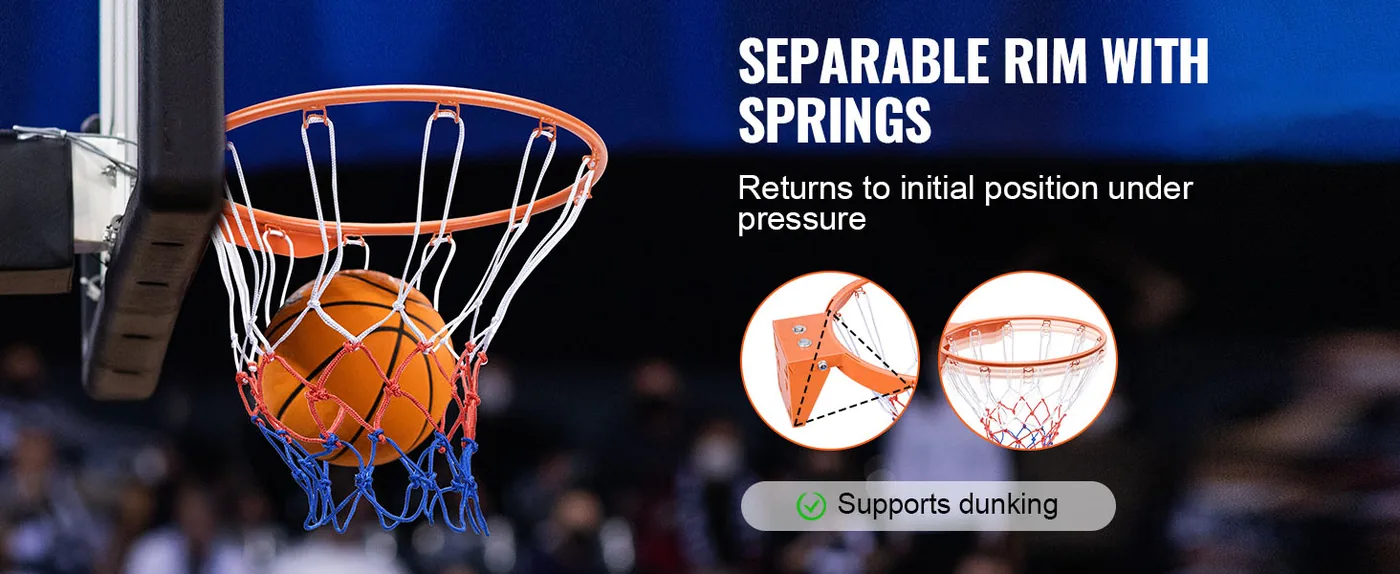

What the spring setup does
The split ring has a spring-loaded joint at the back, so the front of the rim gives under a hard dunk and springs back.
A sprung rim protects the backboard as much as the player. A fixed rim sends the whole load of a dunk into the glass or board; a spring-loaded rim gives first, then returns to level. The trade-off is a little more movement when the ball hits the front of the rim.

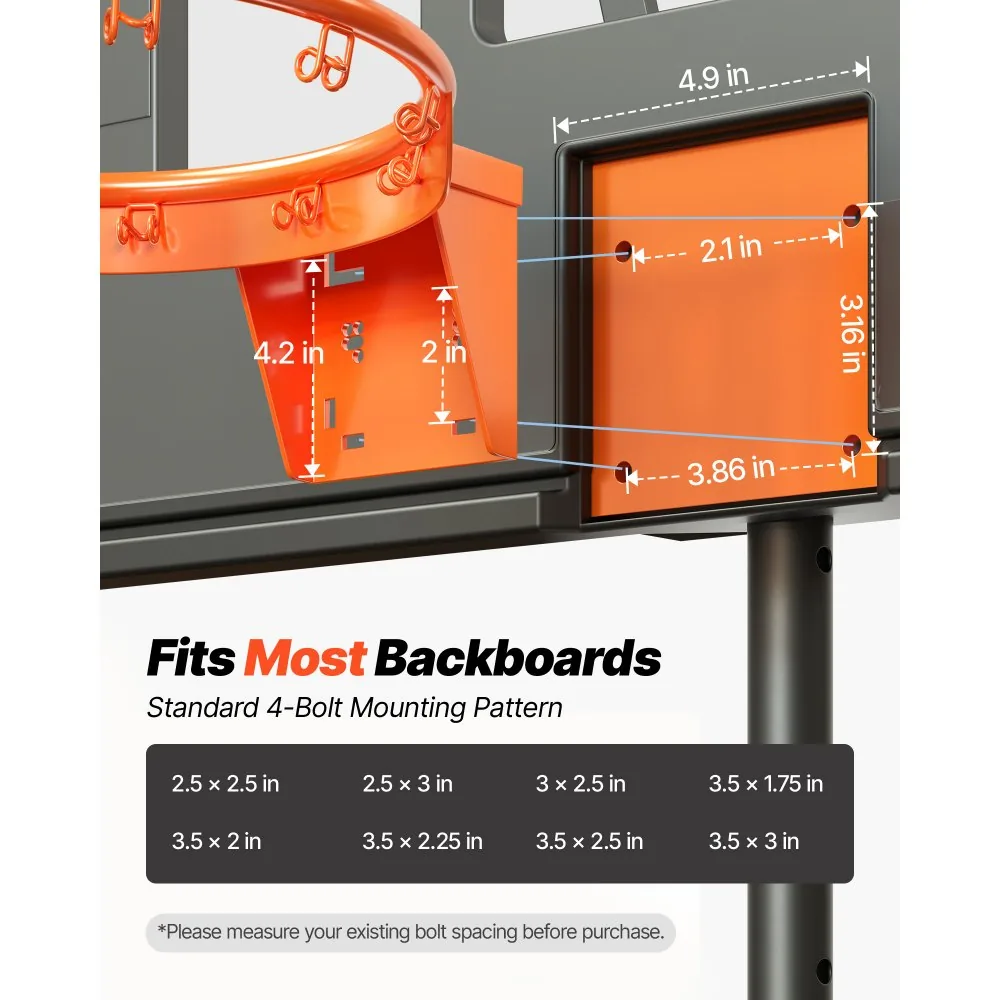

Fit and mounting pattern
The mounting plate is slotted to cover the common four-bolt backboard patterns rather than a single spacing. Measure the horizontal and vertical distance between the holes on your backboard, then compare it with the slot range.

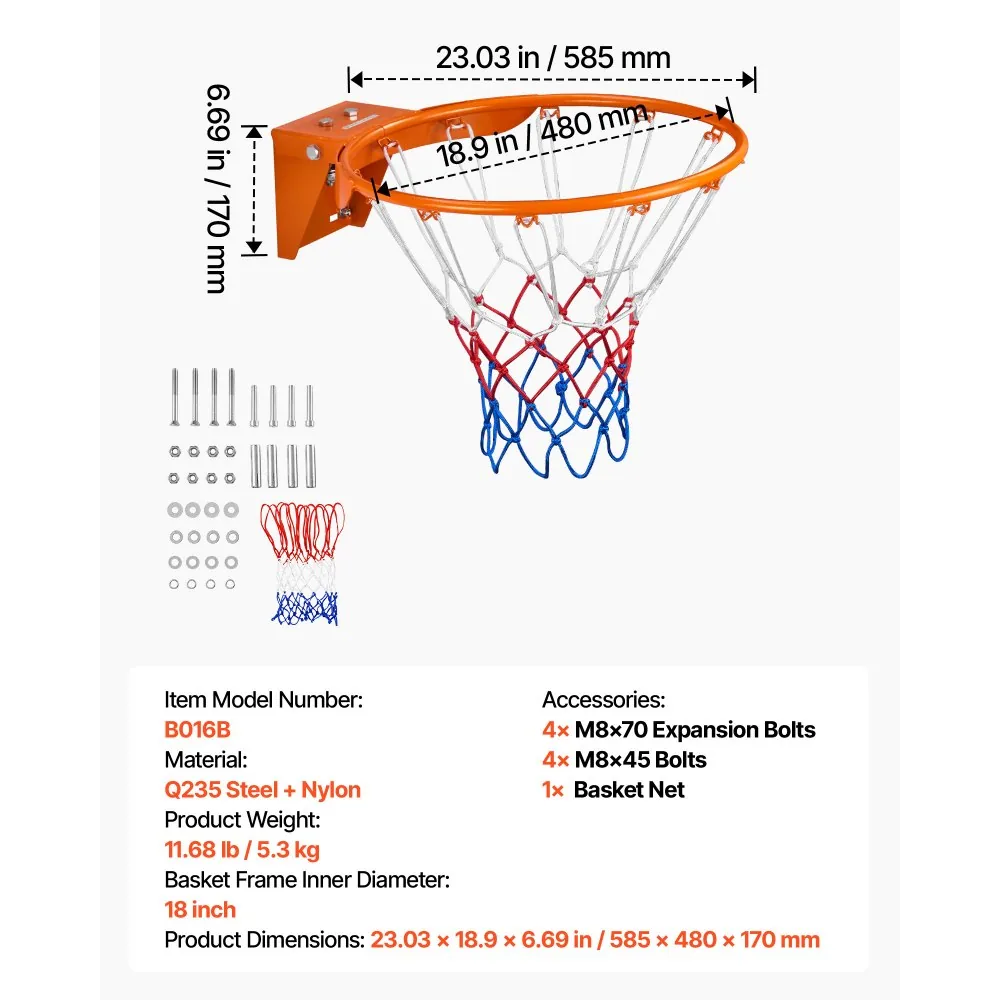

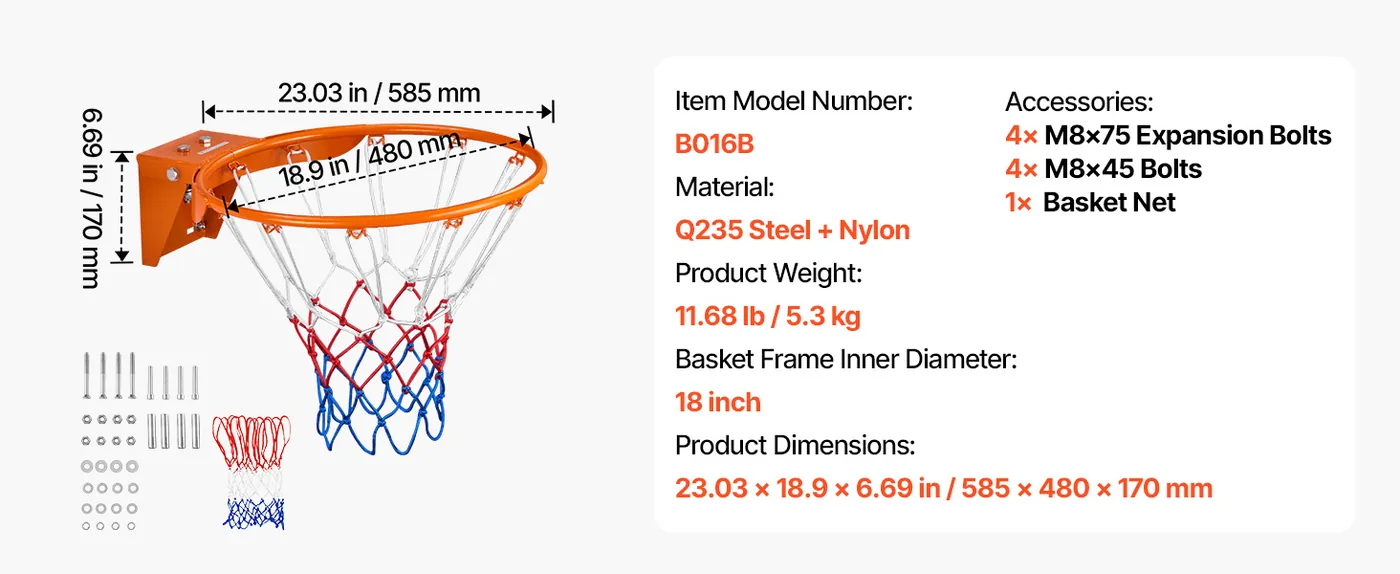

- Rim inner diameter: 18 in / 460 mm
- Tube: 0.63 in / 16 mm
- Overall size: 23.03 x 18.9 x 6.69 in / 585 x 480 x 170 mm
- Weight: 11.68 lb / 5.3 kg
Regulation play uses a rim 10 ft (3.05 m) above the floor. If you are replacing a rim on an existing pole, keep the same height and check that the new bracket does not push the rim further out from the board.
Steel, finish and net
The ring is Q235 steel with an oil-spray coating. That finish is designed for outdoor use, but it is a coating, not stainless steel; touch up chips before rust spreads. The net is nylon with a red, white and blue pattern and fits the 18-inch ring.
Installation
- Support the backboard and remove the old rim and net.
- Clean the mounting face and check the board for cracks around the bolt holes.
- Hold the new rim in place and start the four bolts by hand. Check that the rim sits level before tightening.
- Tighten the bolts evenly, then hang the net from the loops around the ring.
- Pull down on the rim to check the spring return, and re-check the bolts after the first week of play.
Which version to choose
The split rim is the heaviest and the most forgiving at the joint. The one-piece rim with two springs is lighter and flexes at the plate. The one-piece rim with no springs is the simplest fixed option for a driveway hoop or a replacement where the old rim had no breakaway.
Ordering
One rim, wholesale pricing. The listed price is our wholesale rate for one rim with its net and bolts. There is no minimum order quantity and no separate tier price, so one rim and several rims cost the same per rim.
Performance & Applications
Specifications
| Brand | VEVOR |
| Item model number | B016B |
| Basket size | Solid, Outer diameter |
| Tube diameter | Φ0.63 inch / 16 mm |
| Basket material | Q235 |
| Surface treatment | Oil spray |
| Color | Orange |
Be the first to review “VEVOR 18 in Basketball Rim, Split Rim, 2 Springs, with Net”
Frequently Asked Questions
Q: Is this a standard 18-inch rim?
A: Yes. The inner diameter is 18 in (460 mm), the size used on most regulation and home hoops. The tube is 16 mm thick.
Q: Will it fit my backboard?
A: The plate has slotted holes for the common four-bolt patterns. Measure the horizontal and vertical bolt spacing on your board and compare it with the slot range before ordering.
Q: What is the difference between the split and one-piece rims?
A: The split rim has a spring joint in the ring itself. The one-piece rims flex at the mounting plate; one has two springs and the other has none.
Q: Does the spring rim stop the backboard from breaking?
A: It reduces the peak load on the board by giving under a dunk, but no rim can protect a cracked or rotten backboard. Check the board and its mounting before installing.
Q: Is the net included?
A: Yes. One nylon net is included, along with the mounting bolts listed in the box contents.
Q: Is the backboard included?
A: No. The listing is the rim, net and bolts. The backboard, pole and wall brackets are not included.

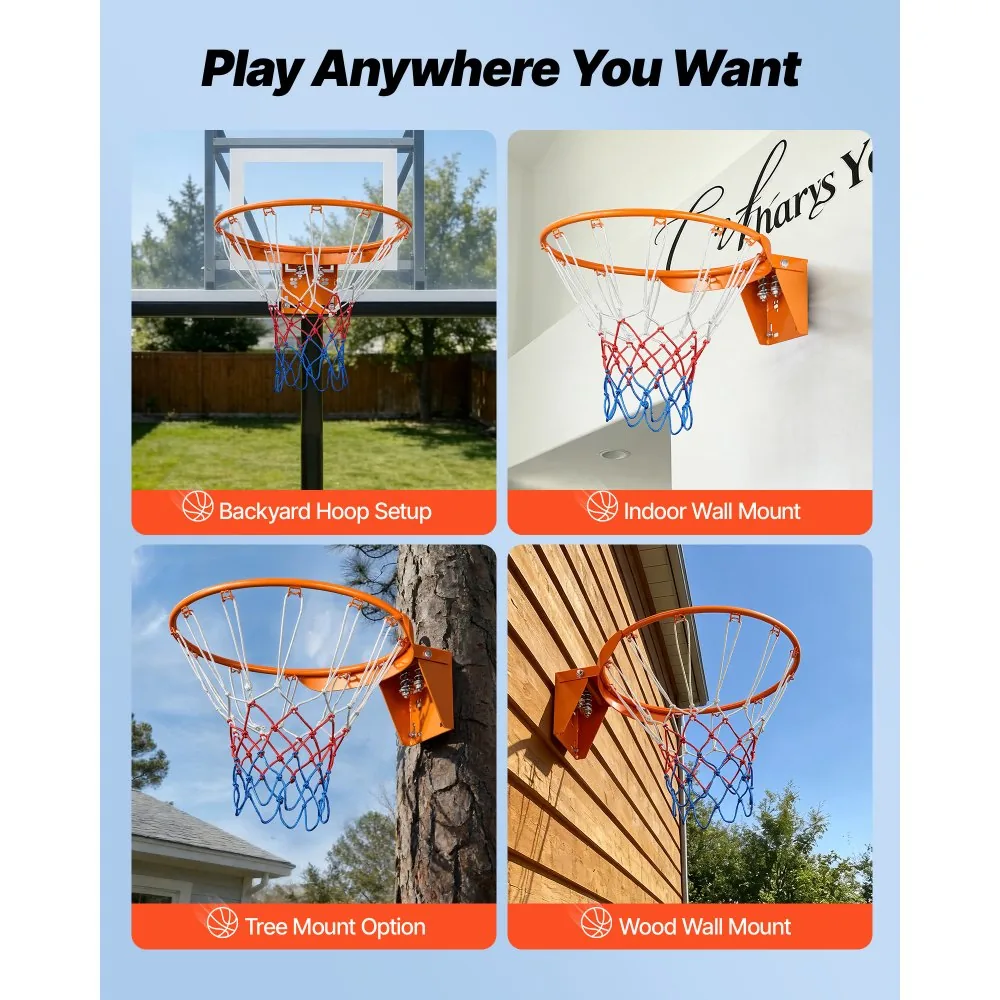

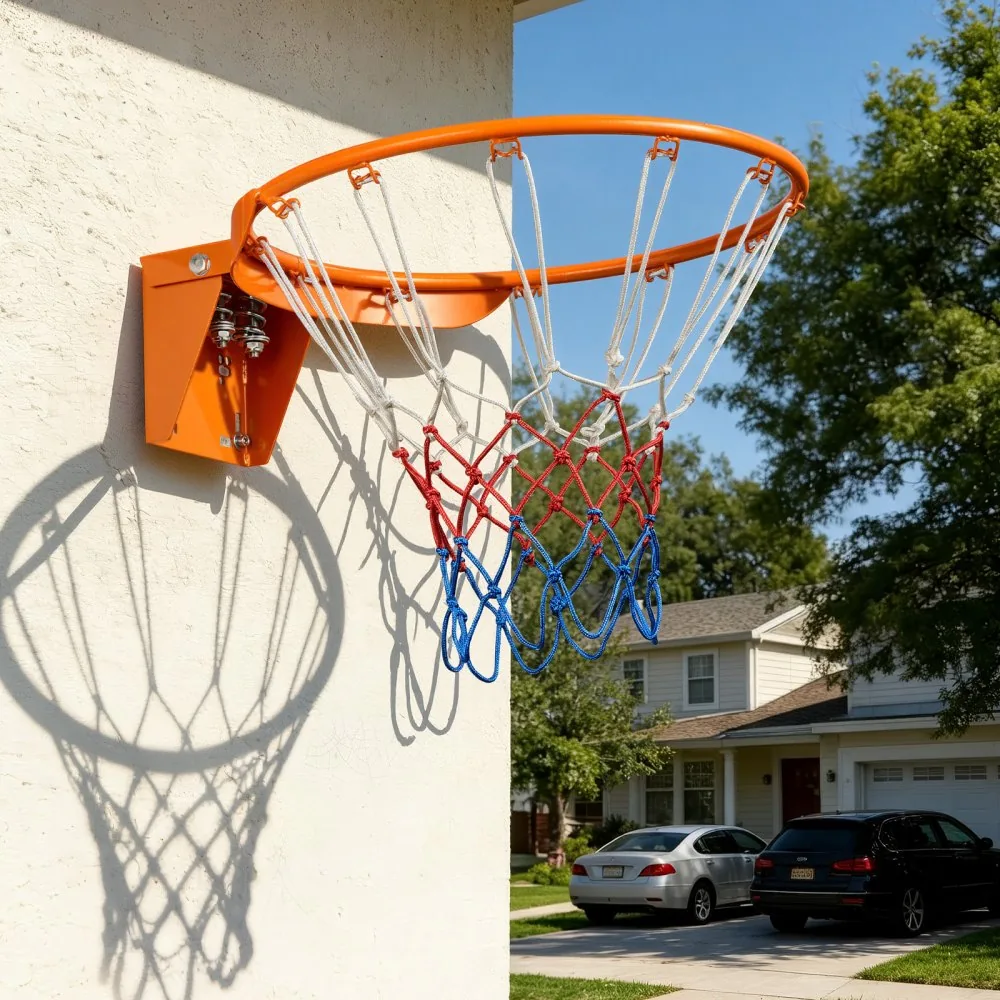

Q: Can it be mounted on a wall or a door?
A: The rim fits backboards and brackets with a matching four-bolt pattern. For a wall mount, use the expansion bolts in masonry; for a door or board, use the shorter bolts and check the fixing points.
Q: How high should the rim be?
A: Regulation height is 10 ft (3.05 m) to the top of the rim. Match the height of the rim you are replacing so the free-throw and shooting lines still make sense.
Q: Will the paint rust outdoors?
A: The oil-spray coating is made for outdoor use, but it can chip. Touch up bare spots and check the bolts and springs at the start of each season.
Questions & Answers
Related products
-

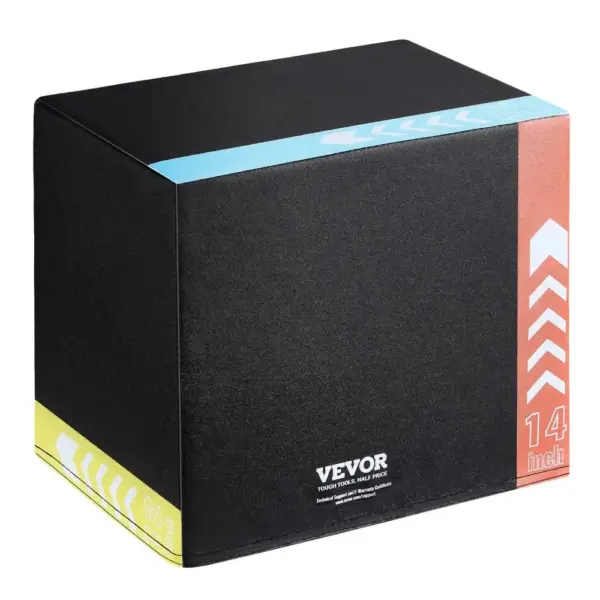

VEVOR 3 in 1 Plyometric Jump Box, 16/14/12 Inch Cotton Plyo Box, Platform & Jumping Agility Box
