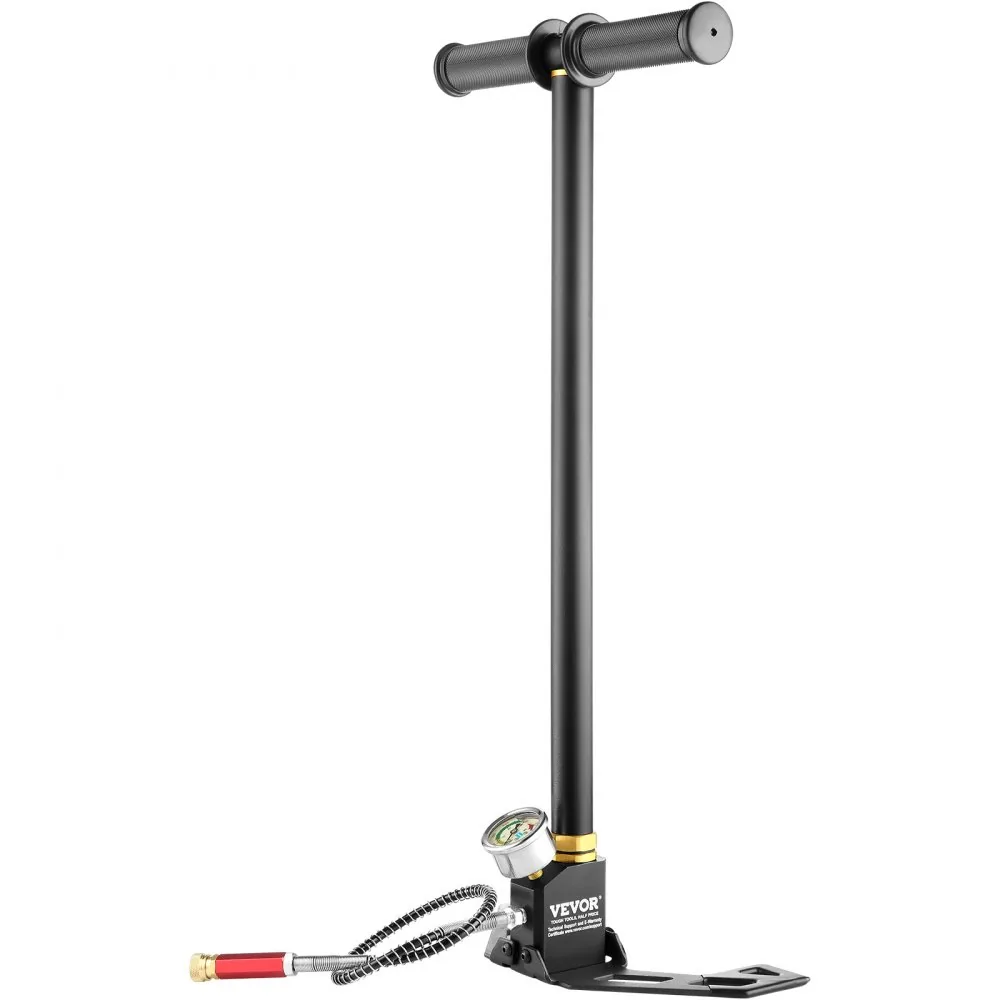

PCP Hand Pump with Oil-Moisture Filter, 4500 PSI

VEVOR 3-Stage PCP Hand Pump with Oil-Moisture Filter, 4500 PSI

$49.90Wholesale price, no minimum order

Key Features

The inline oil-moisture filter is the main difference from the silver pump and is intended to help keep oil and moisture out of the PCP reservoir.

Three stages, a 4500 psi ceiling and a 0 to 6000 psi gauge cover the full fill range with a readable pressure scale.

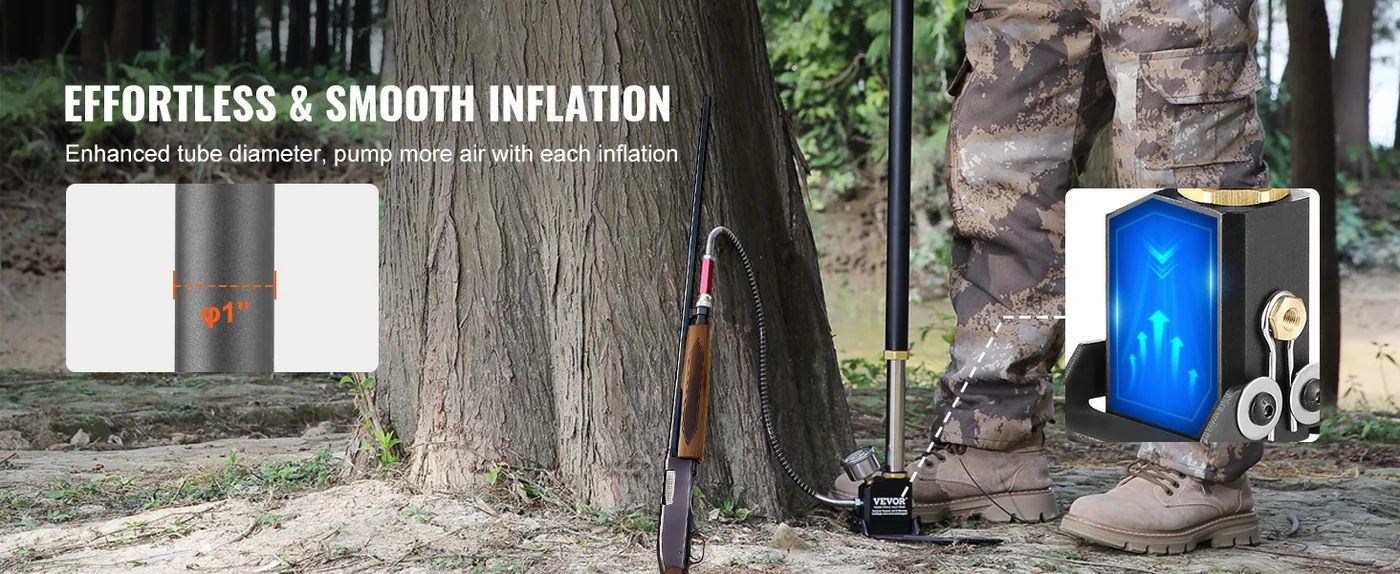

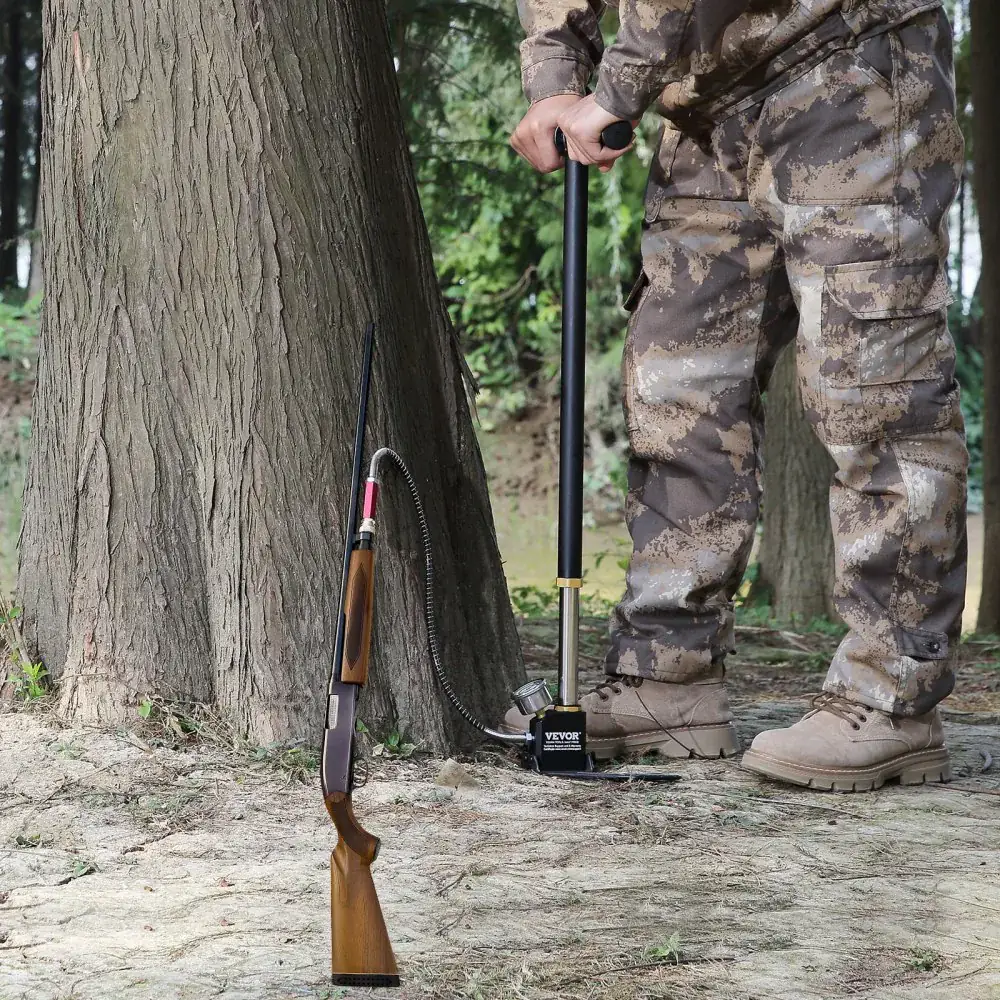

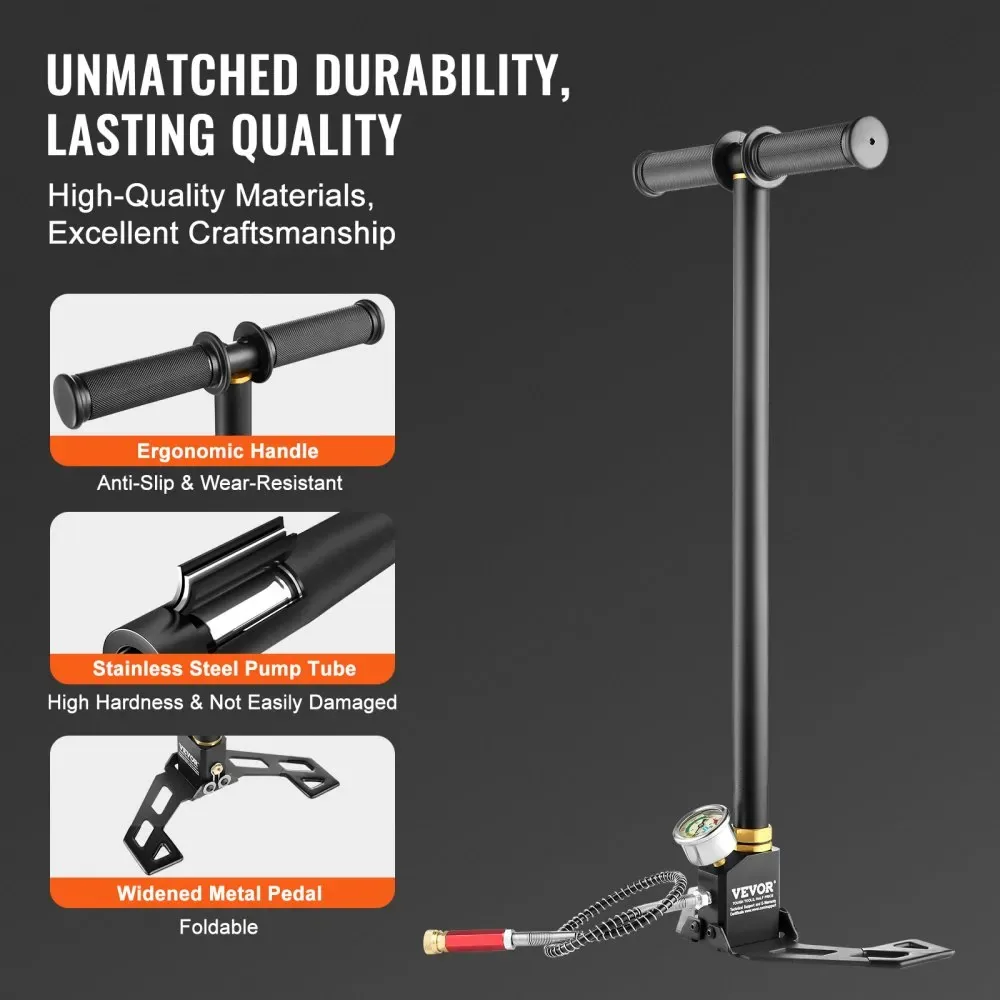

The 1.8 ft fill hose and foldable stirrup foot keep the pump stable while the hose reaches the rifle's fill port.

The 10.6 in handle gives both hands room to work without crowding the pressure gauge.

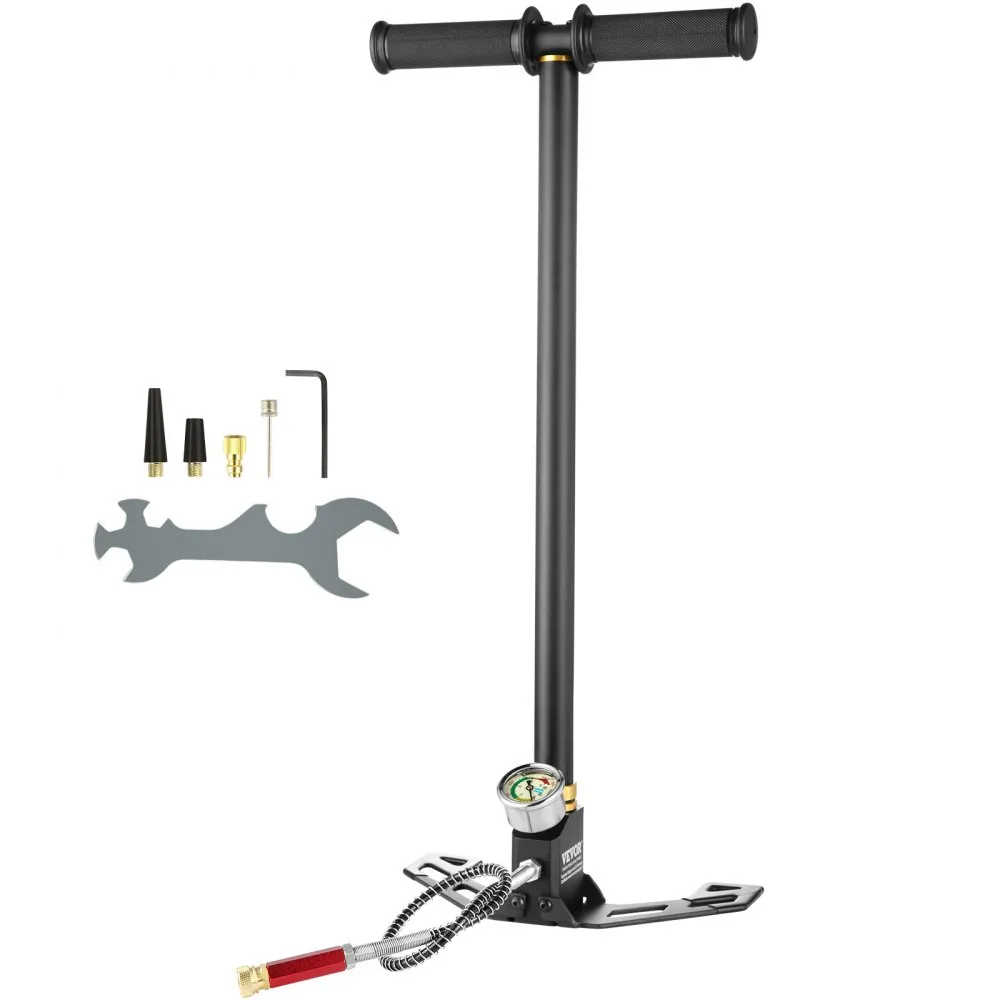

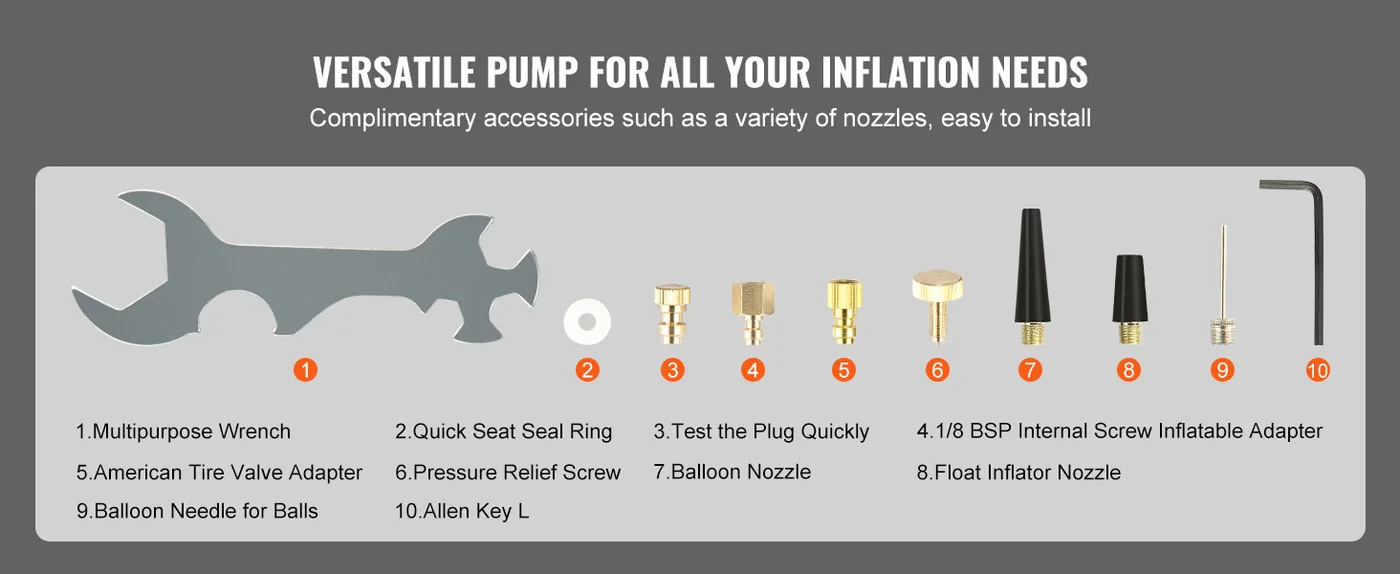

A wrench, hex key and spare O-ring parts are shown in the package for routine maintenance.

In stock

📦 Free shipping to the 48 contiguous US states · Ships within 1-3 business days, arrives in 2-5 business days · 30-day returns and manufacturer warranty

SKU: QQCQBXK0000000001V0 Category: Outdoor & Camping

Quick Answer

This black three-stage PCP hand pump is listed with an inline oil-moisture filter and a 4500 psi working limit. It has a 0 to 6000 psi gauge, a 1.8 ft fill hose and a 10.6 in handle. The package shown includes a wrench, hex key and spare O-ring parts for maintenance.

Description

At a Glance

DQT-3JHModel0-4500 psi / 0-30 MPaMaximum pressure0-6000 psi / 0-40 MPaGauge range1.8 ft / 560 mm fill hoseFill hose10.6 in / 270 mmHandle width5.8 lb / 2.6 kgWeight

PCP Hand Pump with Moisture Filter

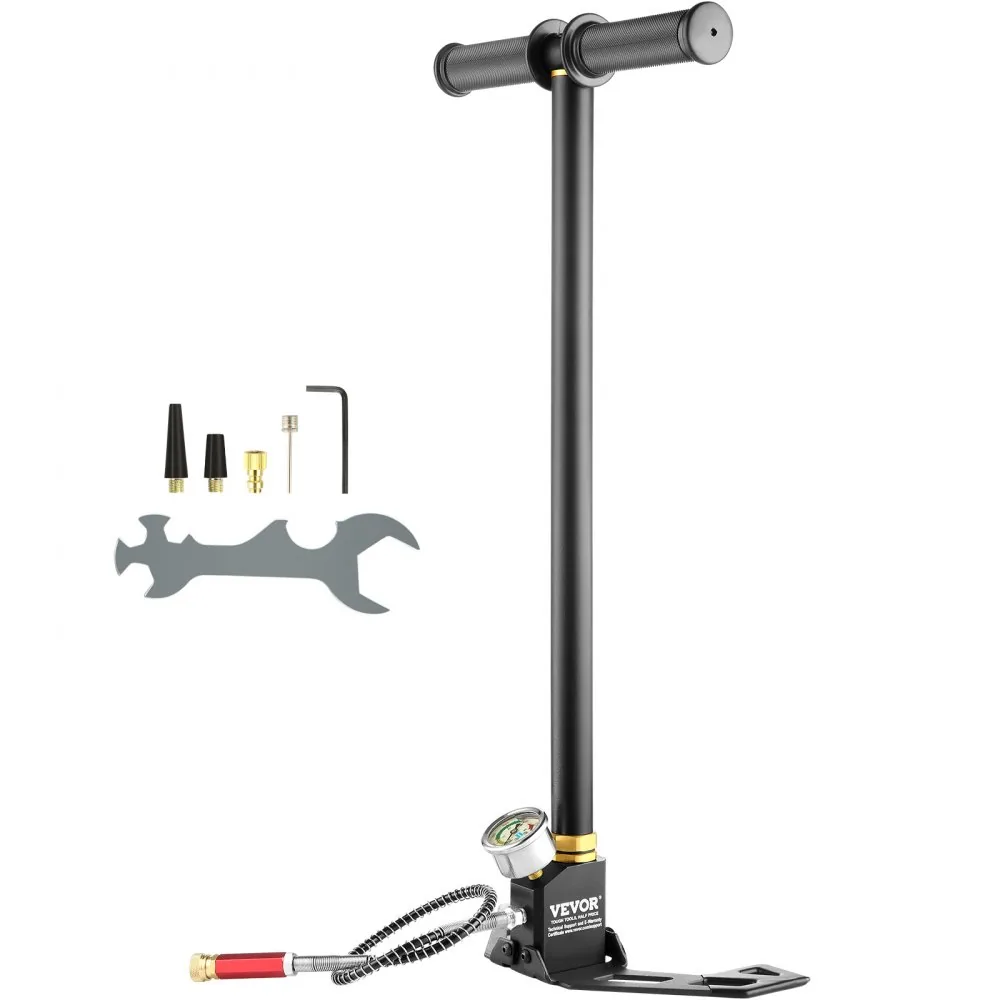

What is included: the pump, fill hose, pressure gauge, foldable stirrup foot, bleed valve, wrench, hex key and the small spare parts shown in the gallery. Always compare the package image with the listing before a trip.

How a three-stage PCP pump works

A three-stage hand pump divides the compression work across several chambers. That does not make the last part of a 4500 psi fill effortless, but it makes the pump more practical than a simple single-stage design over a wide pressure range. Pump in steady strokes, keep both feet stable on the stirrup and avoid side-loading the barrel.

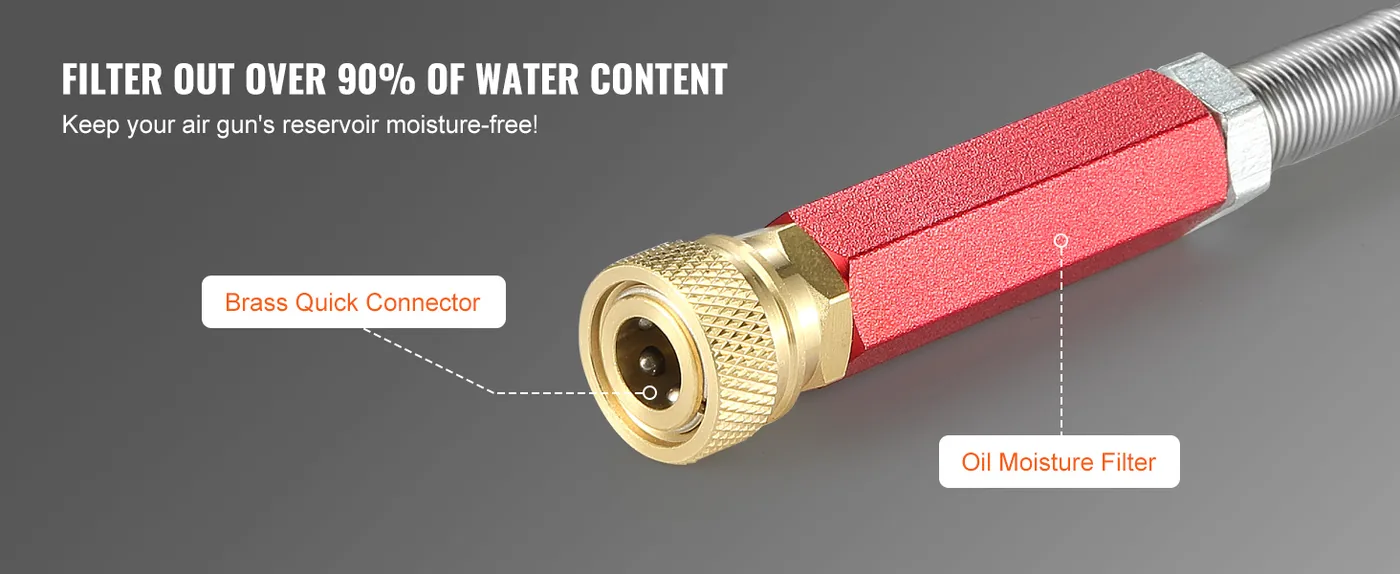

The inline oil-moisture filter is the reason to choose this version. It helps keep oil and condensation away from the reservoir, but it still needs inspection, draining and replacement according to the pump and rifle instructions.

Pressure, gauge range and the fill limit

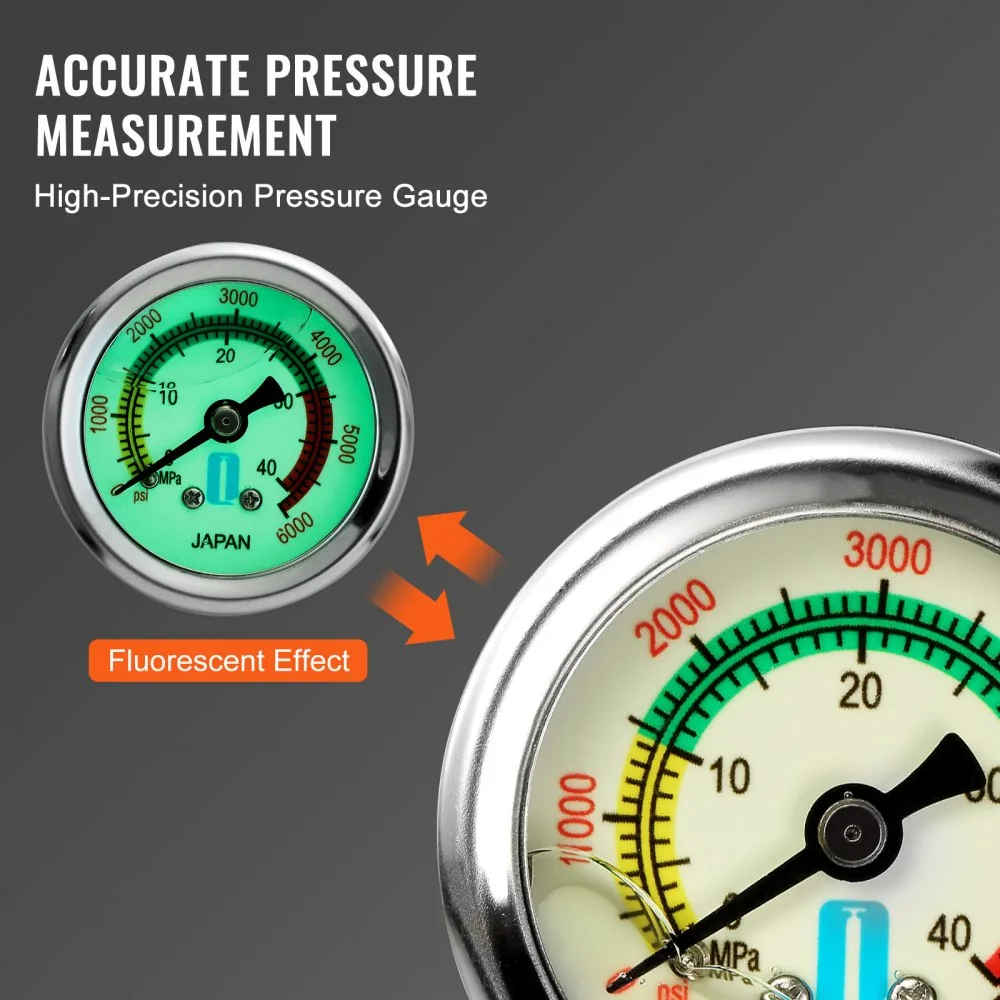

The working limit is 0-4500 psi / 0-30 MPa and the gauge reads 0-6000 psi / 0-40 MPa. The larger gauge scale is there to show pressure beyond the working ceiling; it does not raise the limit. Fill only the reservoir on a PCP air rifle or compatible PCP device, stop at the device manufacturer’s stated pressure and open the bleed valve before disconnecting the hose.

Heat and moisture

Compression heats both the air and the pump body. If the cylinder becomes hot, stop and let it cool. Rapid fills drive more moisture into the system and put extra wear on the O-rings. Keep the pump in a dry place, protect the connector from dust and inspect the hose for cracks or bulges before every use.

Fitting and maintenance

The fill connection is 1.8 ft / 560 mm fill hose. Confirm the thread and quick-connector type on the rifle before ordering. A small leak at the connector can look like a pump failure. Check the O-rings, clean the mating surfaces and use only the replacement parts specified for the pump. Do not lubricate the air path with ordinary oil.

Where it makes sense

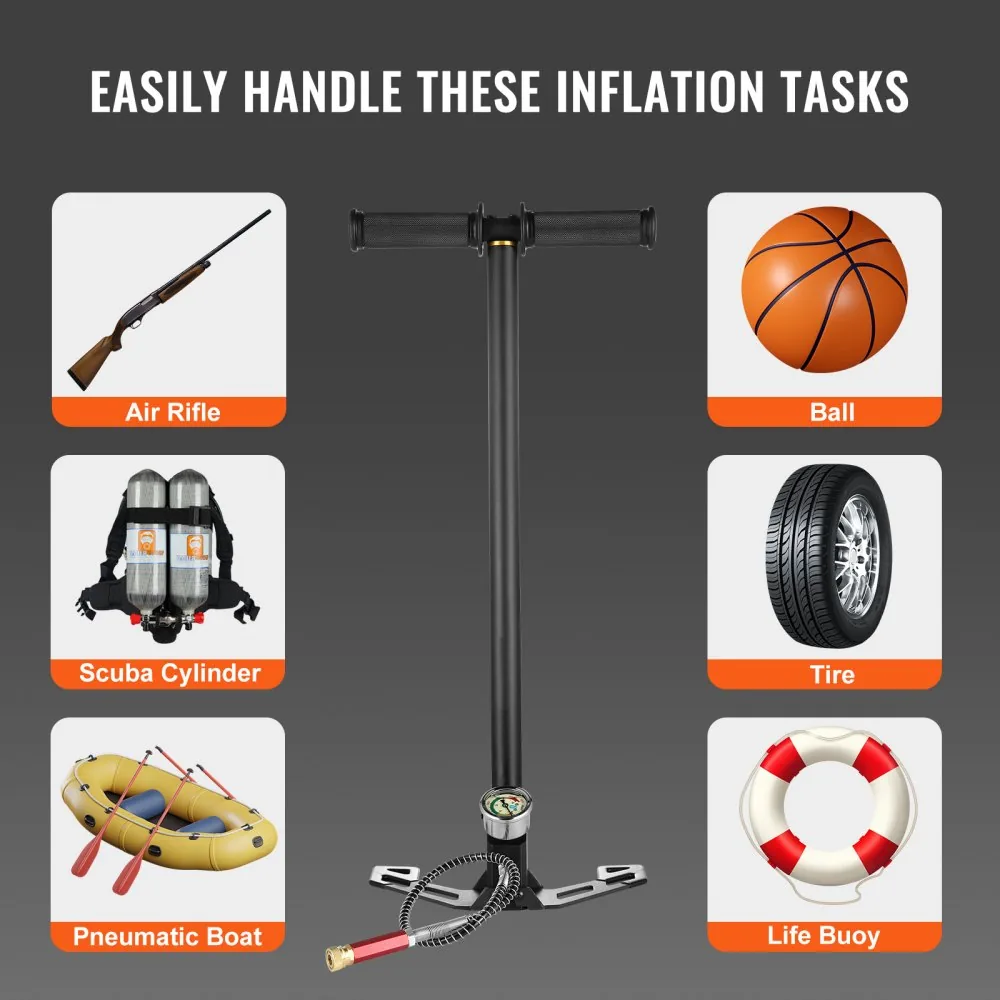

This pump is for filling PCP air rifles and compatible reservoirs where a portable hand pump is enough. It is not a breathing-air compressor and must never be used for scuba, SCBA or any application that supplies air to a person. If you fill a large bottle frequently, compare the time and effort with a regulated tank setup.

Choosing between the two PCP pumps

Choose the black filtered pump when moisture protection is a priority. Choose the silver model when you want the simpler 8 mm quick-connector setup and do not need the inline filter. If you fill very frequently, compare the effort and maintenance of a hand pump with a tank setup before committing.

Wholesale pricing

One unit, wholesale pricing. The listed price is the wholesale rate for one pump. There is no minimum order quantity and no separate tier price, so one pump and several pumps use the same listed unit price.

Performance & Applications

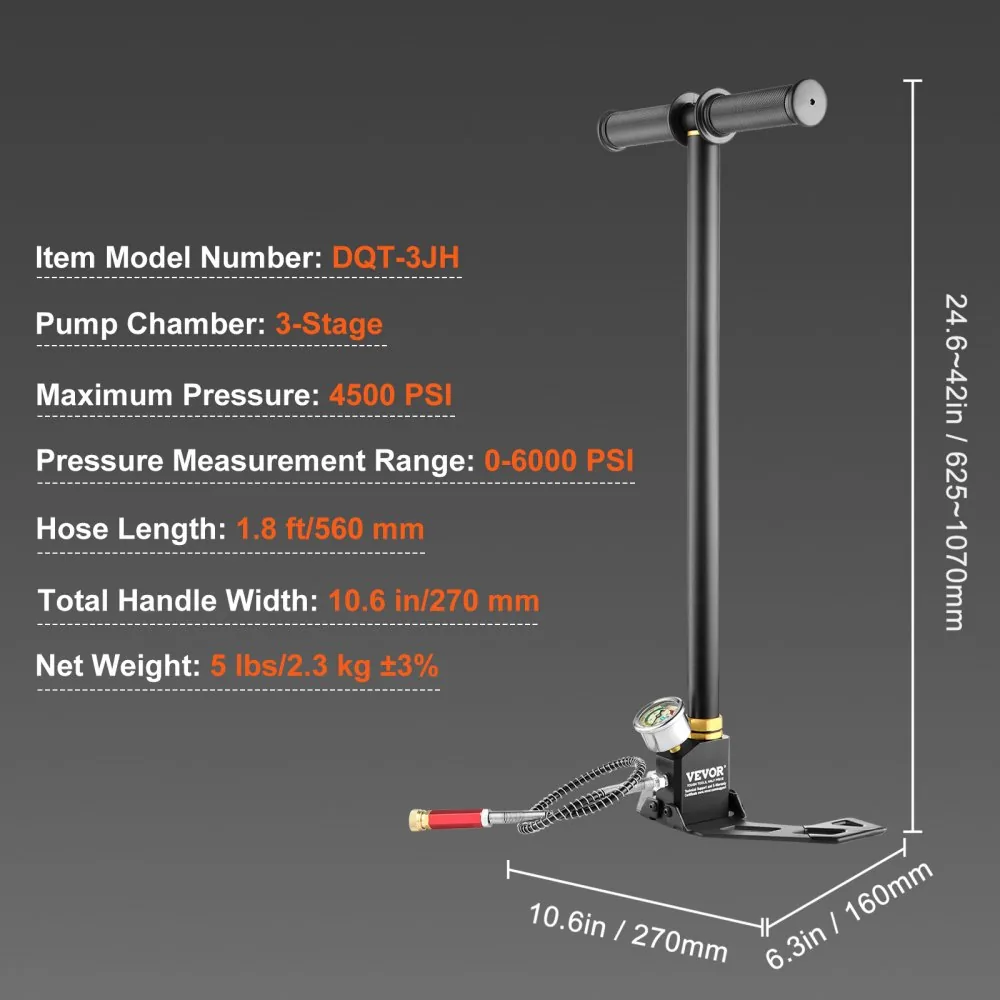

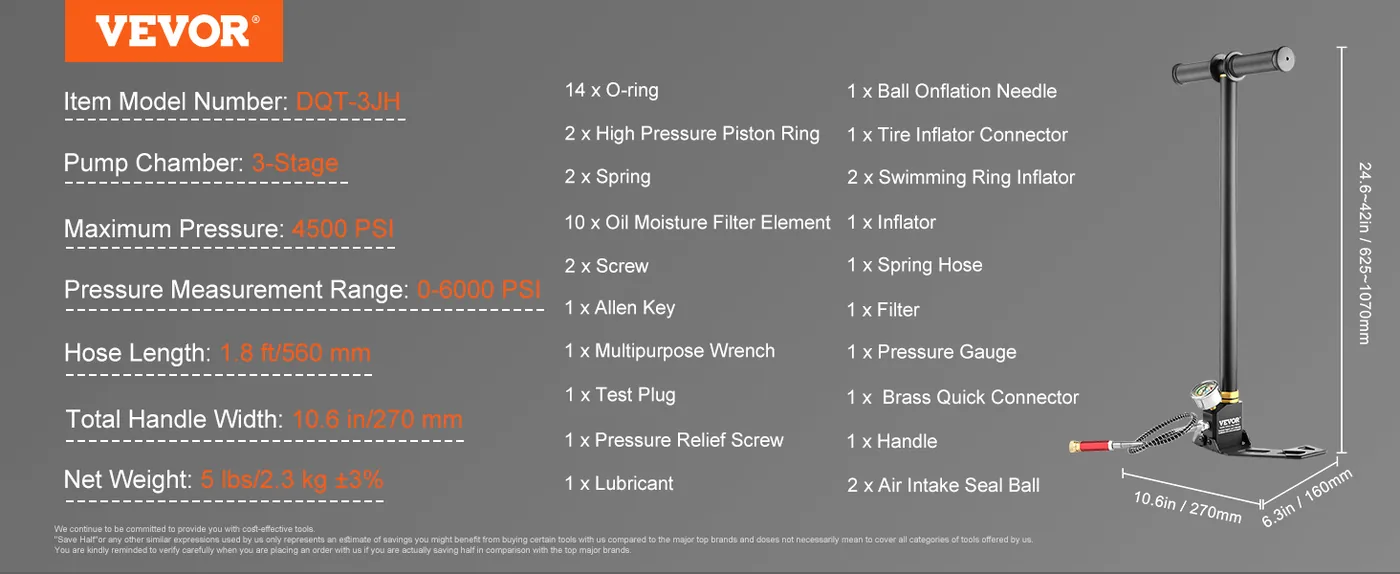

Specifications

Brand	VEVOR
Item Model Number	DQT-3JH
Pump Chamber	3-Stage
Maximum Pressure	4500 PSI
Pressure Measurement Range	0-6000 PSI
Hose Length	1.8 ft/560 mm
Total Handle Width	10.6 in/270 mm

0 reviews for VEVOR 3-Stage PCP Hand Pump with Oil-Moisture Filter, 4500 PSI

Customer reviews

No reviews found

No reviews match your current filters. Try adjusting or clearing your filters to see more reviews.

Be the first to review “VEVOR 3-Stage PCP Hand Pump with Oil-Moisture Filter, 4500 PSI” Cancel reply

Your email address will not be published. Required fields are marked *

Review Title (optional) 0 / 100

Your rating *

Your review *

Add Photos/Videos (optional)

Drag & drop files here or browse

Images: up to 5 files, max 5MB each | Videos: up to 2 files, max 50MB each, 60 sec max

Name

Post this review anonymously

Frequently Asked Questions

Q: What pressure can this pump reach?

A: The listed working range is 0-4500 psi / 0-30 MPa. Never exceed the fill limit printed on the PCP reservoir.

Q: What is the gauge range?

A: The pressure gauge reads 0-6000 psi / 0-40 MPa. A higher gauge scale does not increase the pump's working limit.

Q: What type of hose connection is included?

A: The listing gives 1.8 ft / 560 mm fill hose. Confirm the quick-connector and thread on your rifle before ordering.

Q: Can I use it for a scuba tank or breathing air?

A: No. This is a PCP air-rifle pump, not a breathing-air compressor. Never use it for scuba, SCBA or any air supply for a person.

Q: How hard is it to pump to 4500 psi?

A: The final pressure takes more effort and generates more heat than the early strokes. Pump steadily, stop between stages to let the body cool, and do not force the handle if it binds.

Q: What is included in the box?

A: The package image shows the pump, fill hose, gauge, foldable foot, bleed valve, wrench, hex key and small spare parts. Check the listing image for the exact contents.

Q: Can I leave it connected after filling?

A: Close the reservoir valve and bleed the hose before disconnecting. Do not leave a pressurized hose or pump unattended.

Q: How do I protect the pump O-rings?

A: Keep the connector clean, avoid cross-threading, store the pump dry and inspect the O-rings for cuts or flattening. Use only compatible replacement parts.

Q: What is the difference from the other PCP pump?

A: Choose the black filtered pump when moisture protection is a priority. Choose the silver model when you want the simpler 8 mm quick-connector setup and do not need the inline filter. If you fill very frequently, compare the effort and maintenance of a hand pump with a tank setup before committing.
