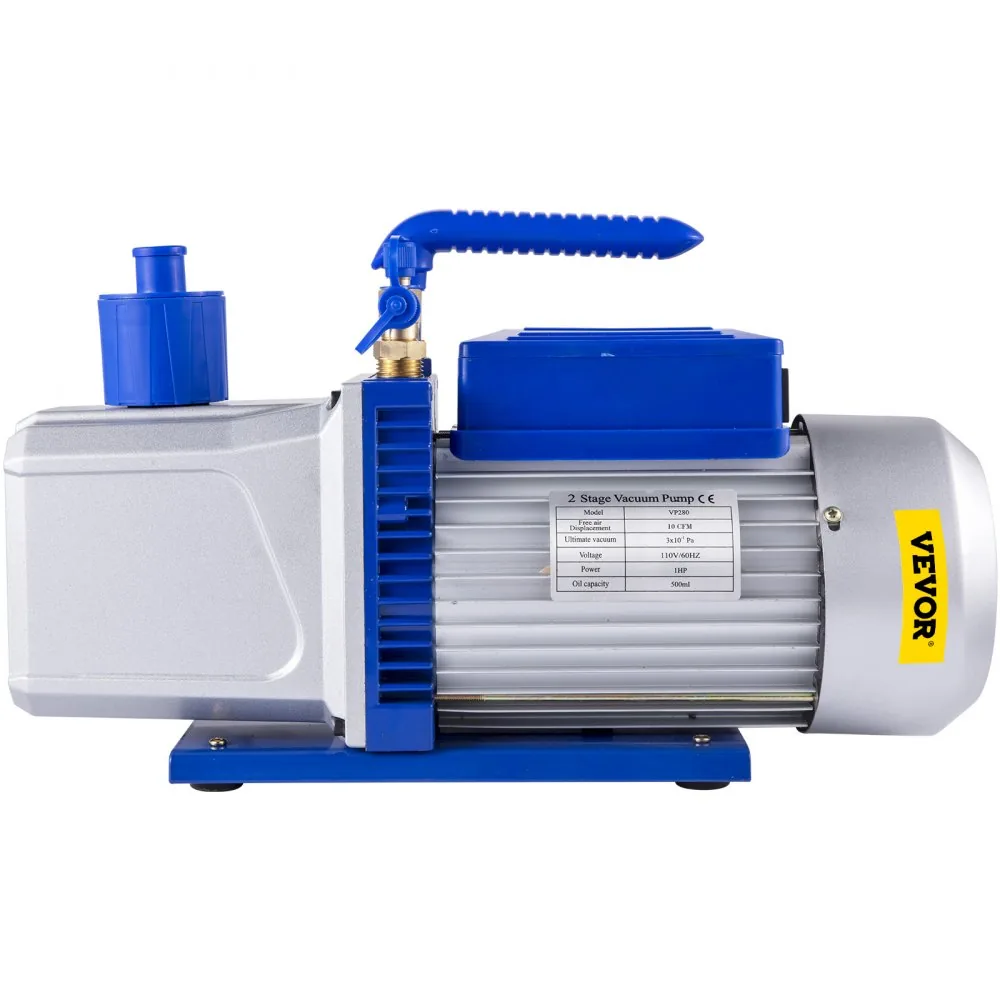

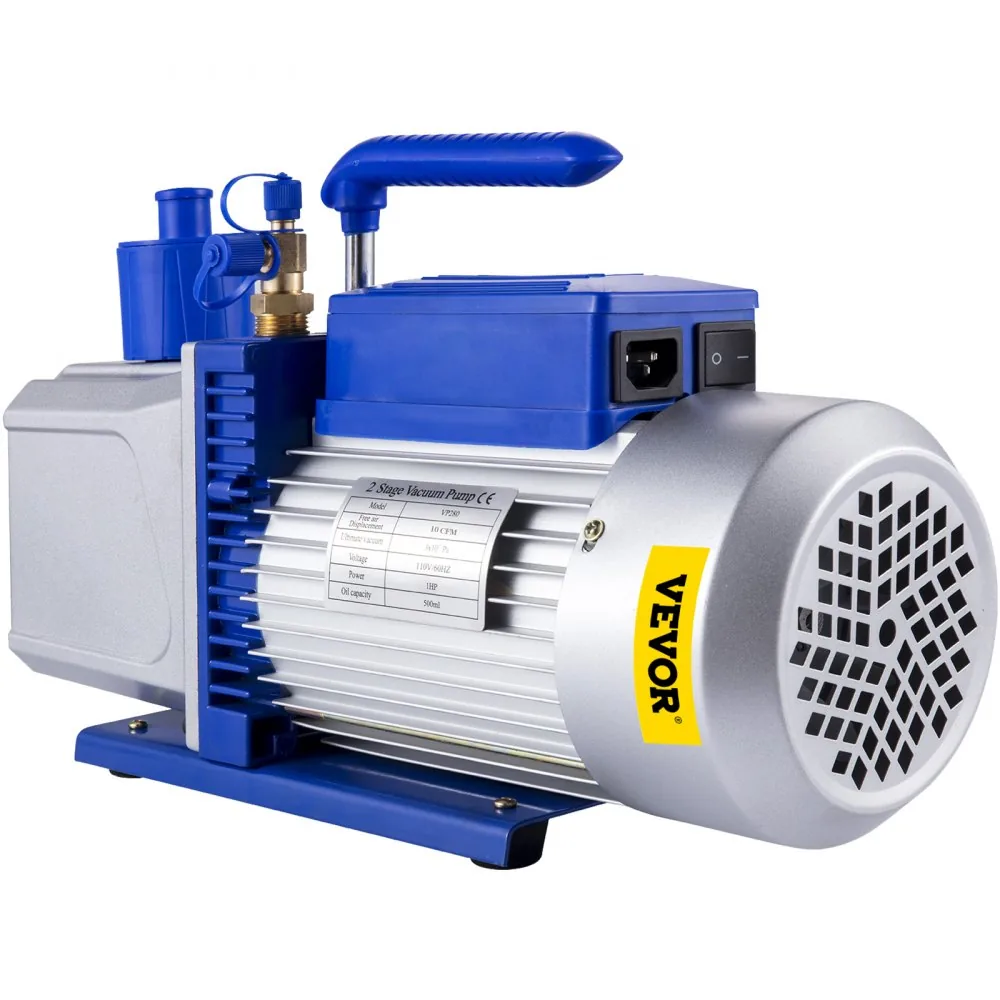

VEVOR Two-Stage Vacuum Pump, 1 HP, 25 Micron

VEVOR Vacuum Pump 12CFM 1HP Vane Vacuum Pump Two Stage 3 x 10-1 Pa Ultimate HVAC Rotary Auto AC Refrigerant Vacuum Pump

$175.90Wholesale price, no minimum order

Key Features

Two-stage rotary vane design with a 3 x 10^-1 Pa (25 micron) ultimate vacuum

the second stage pulls on the first stage exhaust, so the pump keeps removing moisture deeper into an evacuation instead of plateauing early.

10 CFM / 254 L/min free air displacement in the specification table

use this figure for planning evacuation time and hose sizing. The 12 CFM figure comes from the product name and is not the same measurement.

1 HP motor at 2,000 rpm

an aluminum alloy body and a copper motor, mounted on a shock-absorbing base to reduce vibration while the pump runs.

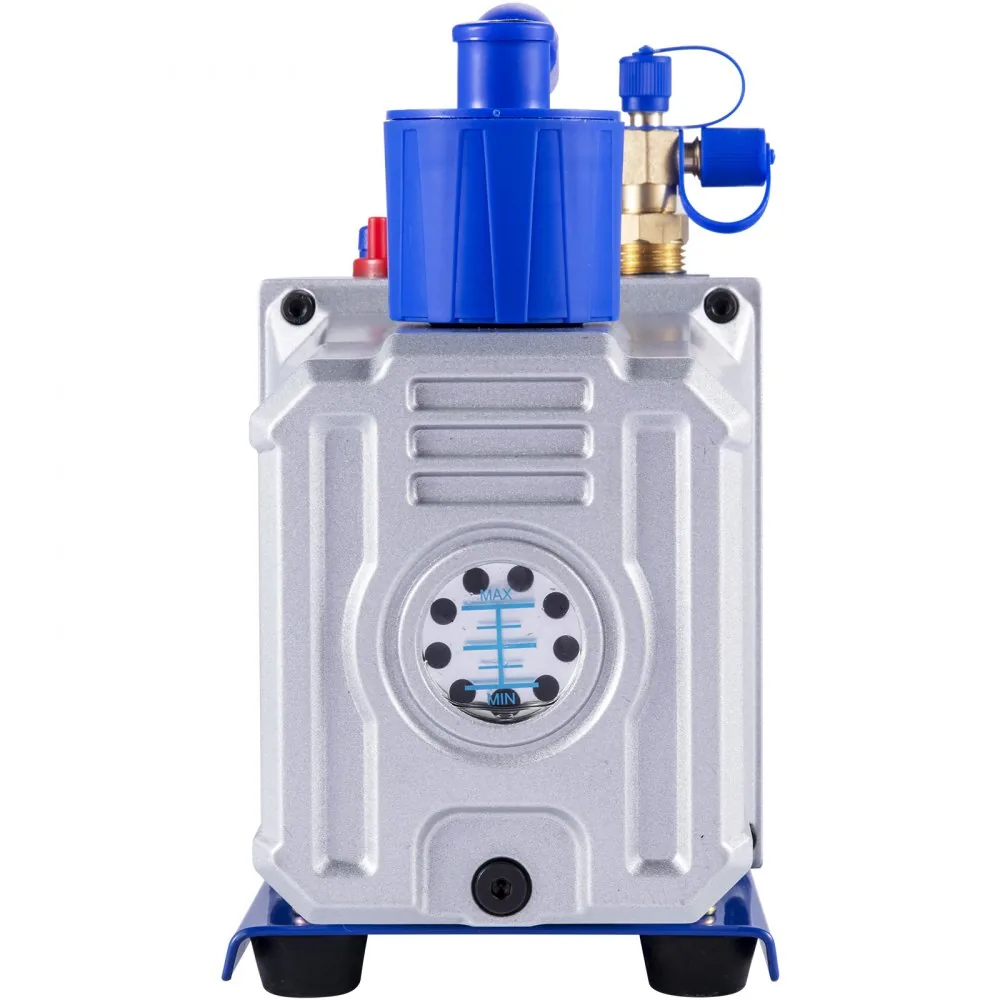

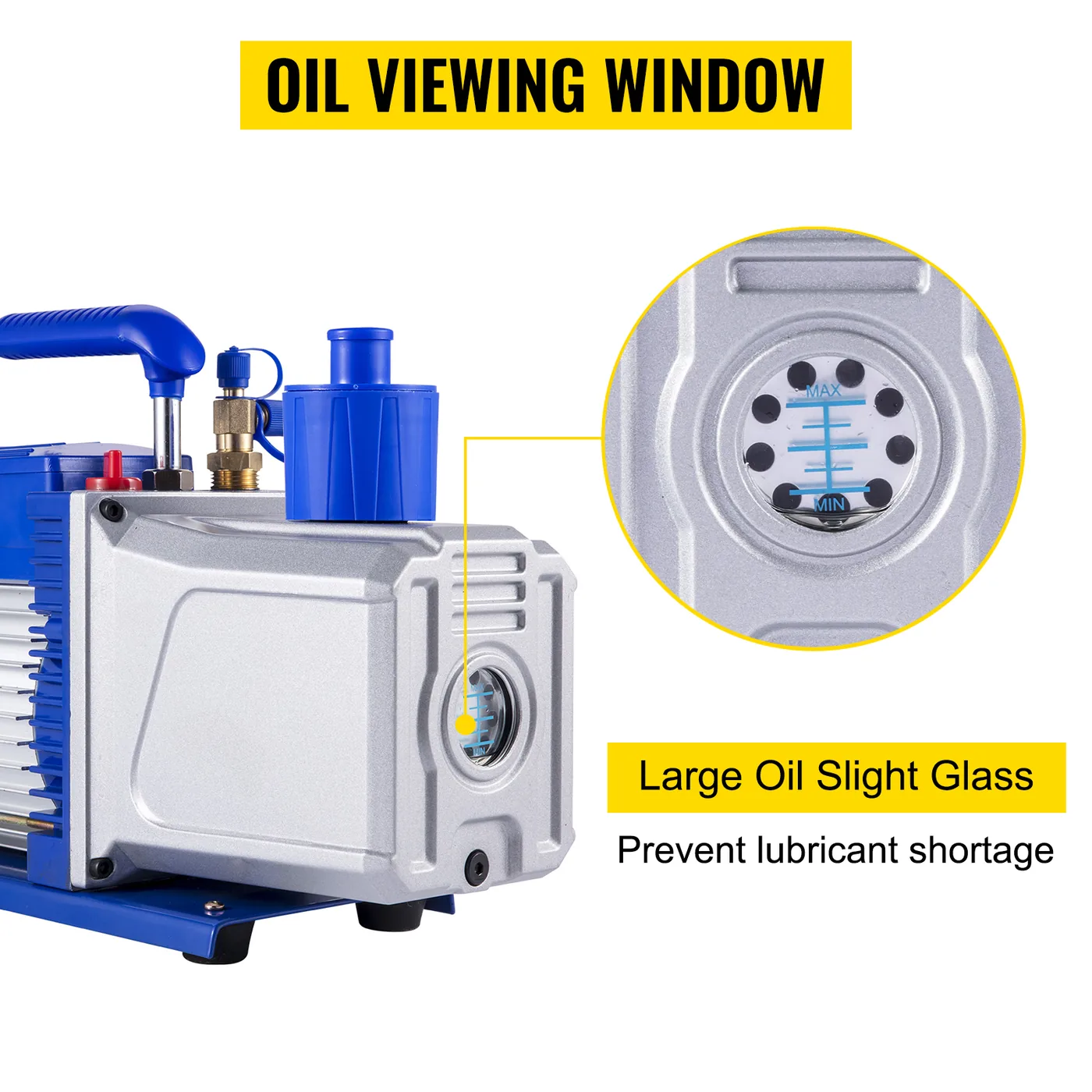

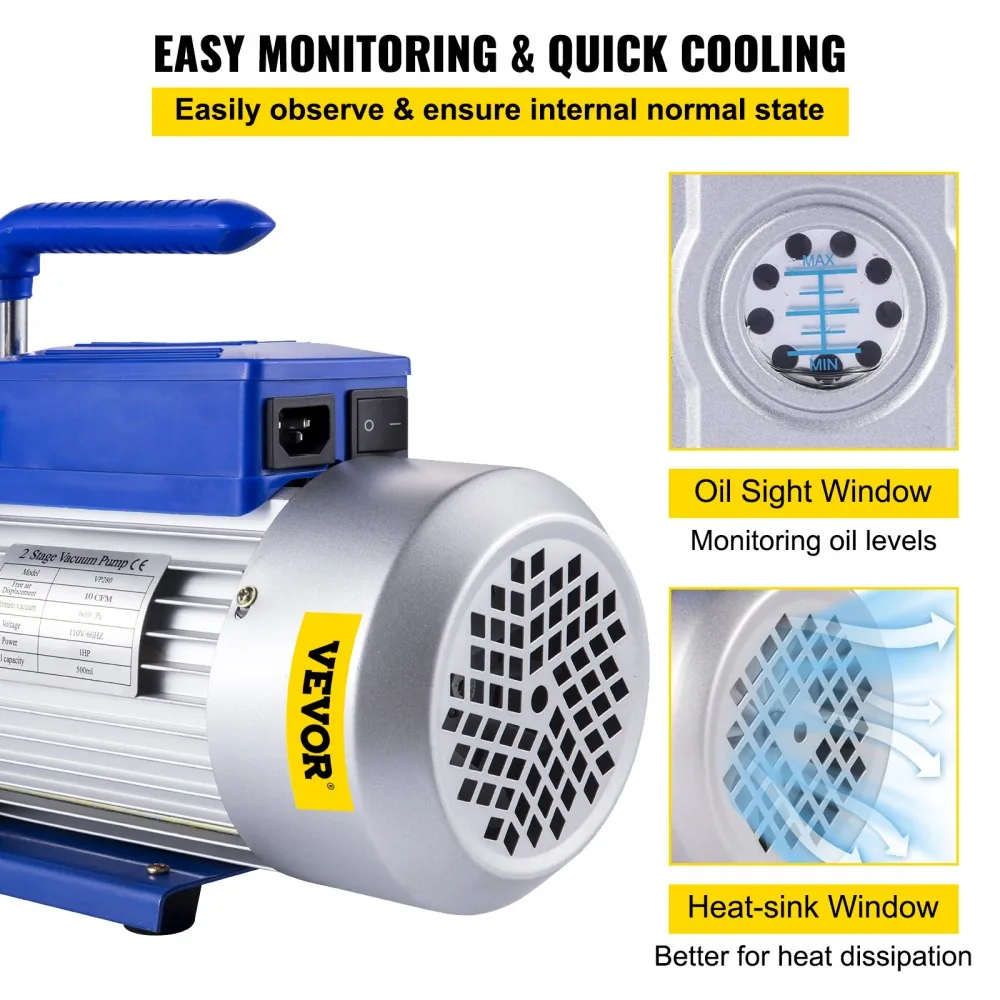

500 ml oil reservoir with a sight window

check level and condition without opening the pump. The 1/4 in fill port is reachable from the front or either side, and a drain hole at the base speeds up oil changes.

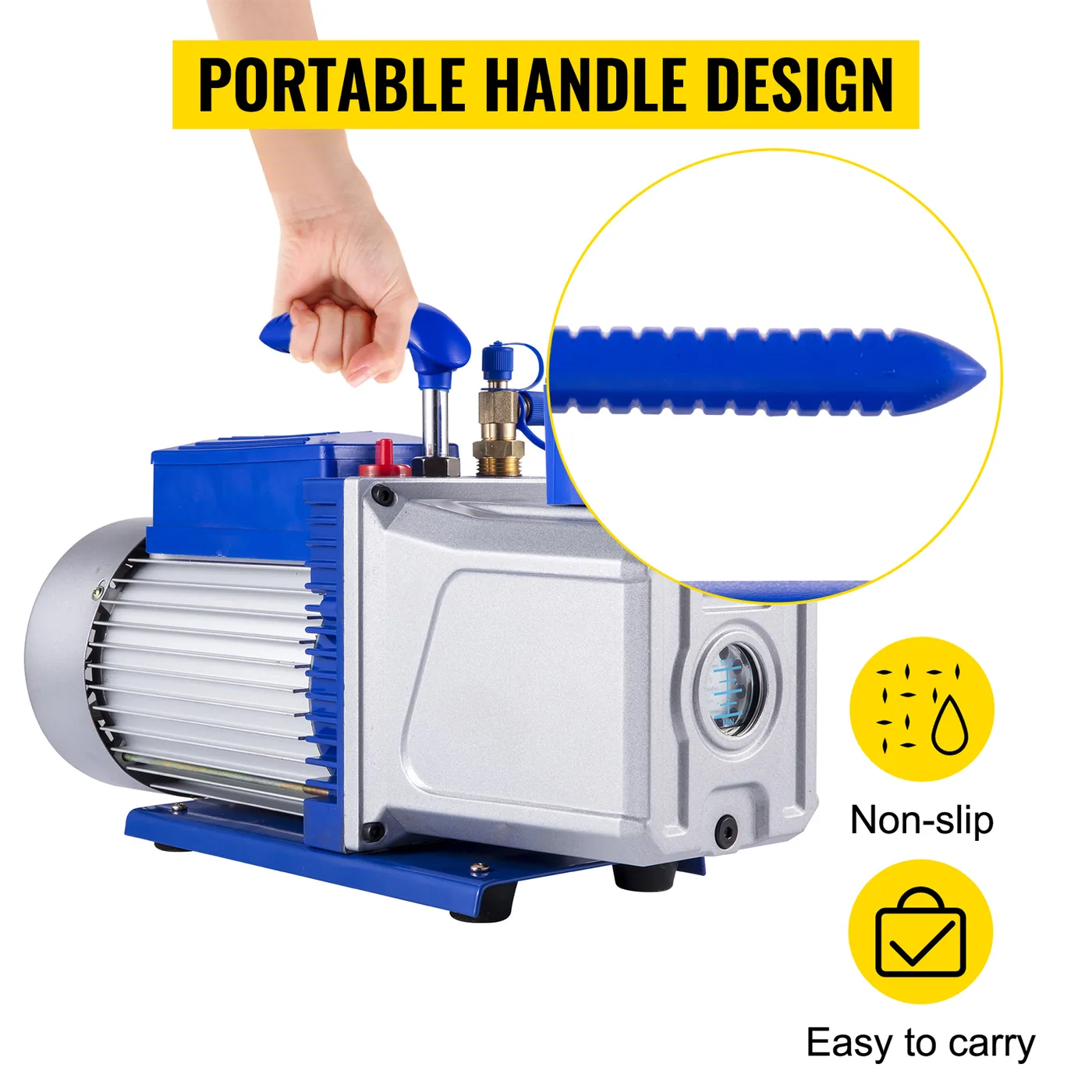

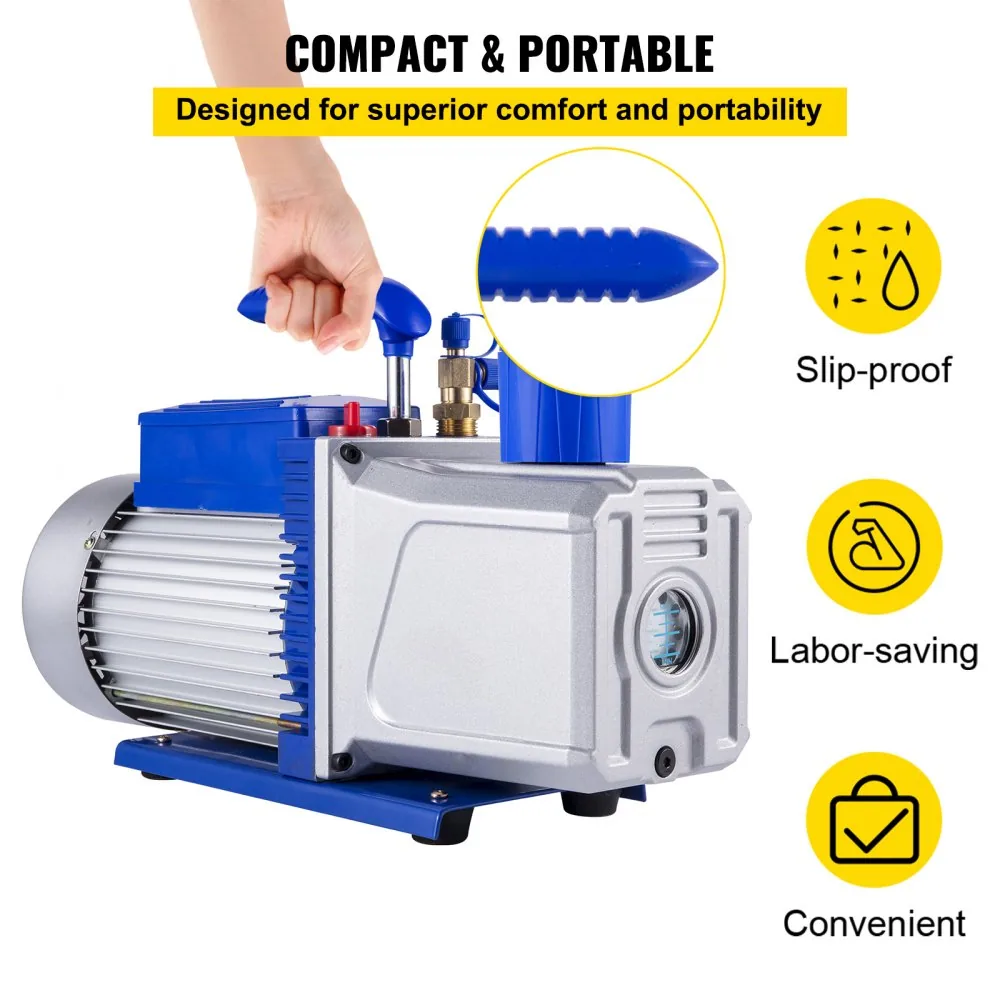

Backflow prevention and a carry handle

oil is kept from being drawn back into the system when the pump stops, and the handle makes the unit easier to move between jobs.

In stock

📦 Free shipping to the 48 contiguous US states · Ships within 1-3 business days, arrives in 2-5 business days · 30-day returns and manufacturer warranty

SKU: VP280ZKB000000001V1 Category: HVAC & Ductwork

Quick Answer

A 1 HP two-stage rotary vane vacuum pump rated to 3 x 10^-1 Pa (25 microns) ultimate vacuum, with a 500 ml oil reservoir and a pump speed of 2,000 rpm. The specification table lists 10 CFM / 254 L/min free air displacement. It is built for HVAC and automotive air-conditioning service work, and pump oil is not included.

Description

At a Glance

A two-stage vane pump for evacuating air and moisture from air-conditioning and refrigeration systems. The second stage pulls on the exhaust of the first, which is how the pump reaches a 25 micron ultimate vacuum. The oil reservoir holds 500 ml, the body has a sight window for checking oil condition, and backflow prevention keeps oil out of the inlet when the pump stops.

3 x 10^-1 Pa / 25 micronsUltimate Vacuum10 CFM / 254 L/minFree Air Displacement (specification table)2,000 rpmPump Rotating Speed2-stage rotary vanePump Type500 mlOil CapacityNot includedOil in the Box

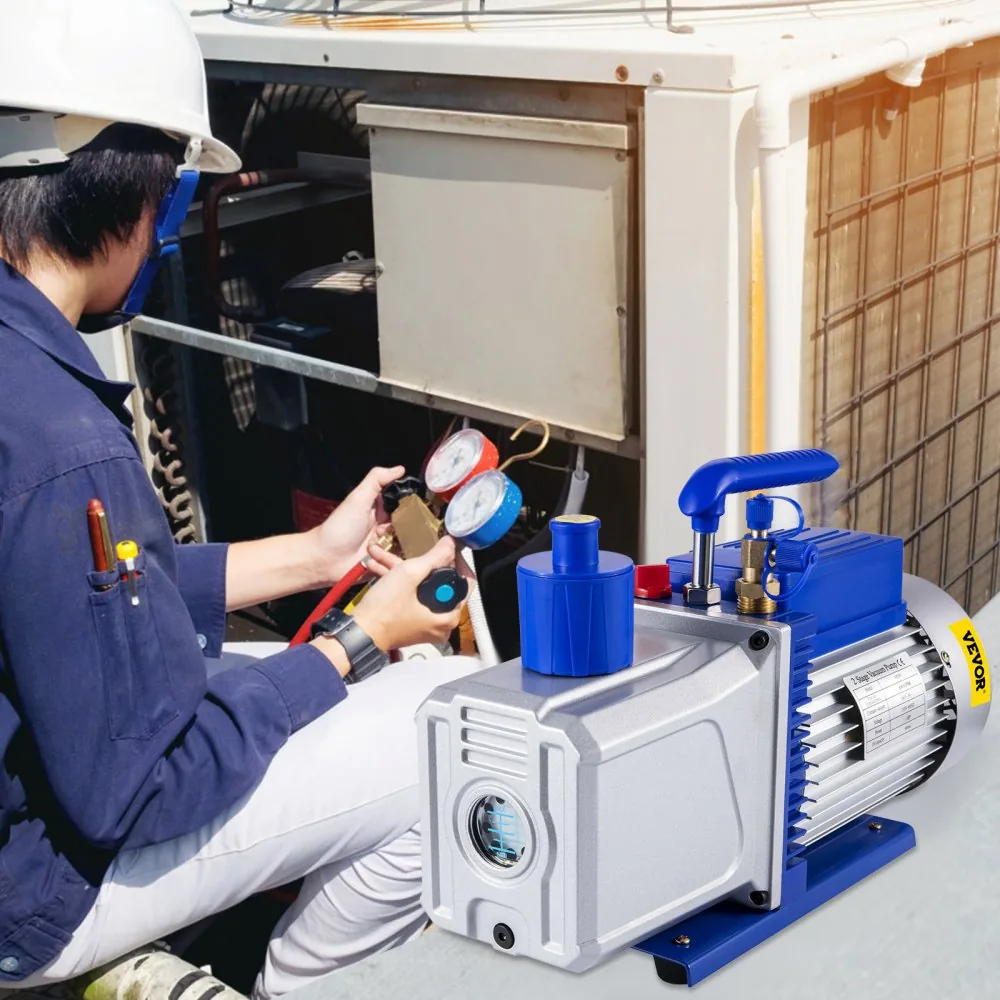

A Two-Stage Pump for AC and HVAC Evacuation

Before a system can be charged, the line set, evaporator and condenser have to be emptied of air and moisture. This 1 HP rotary vane pump is built for that job: two stages in series, a 2,000 rpm pump speed and an ultimate vacuum of 3 x 10^-1 Pa, which is the same as 25 microns. The lower the ultimate pressure, the more moisture vapor the pump can pull out of a system before it stops making progress.

Reading the Two CFM Numbers

The product name carries a 12 CFM label, while the specification table on this page lists 10 CFM / 254 L/min free air displacement. Those figures are not interchangeable. For planning evacuation time, hose sizing or comparing pumps, use the 10 CFM number. If a job sits close to the limit of what this pump can handle, size it on 10 CFM and leave margin.

Why Two Stages Matter

A single-stage pump compresses from atmosphere to its ultimate pressure in one step. A two-stage pump uses two rotors in series: the first stage does the bulk of the moving, and the second stage pulls on the first stage exhaust to reach a lower final pressure. In practice the pump keeps removing moisture deeper into the evacuation instead of plateauing early, which matters on systems that have been open to the air or have held a charge for years.

Oil, Sight Window and Backflow Protection

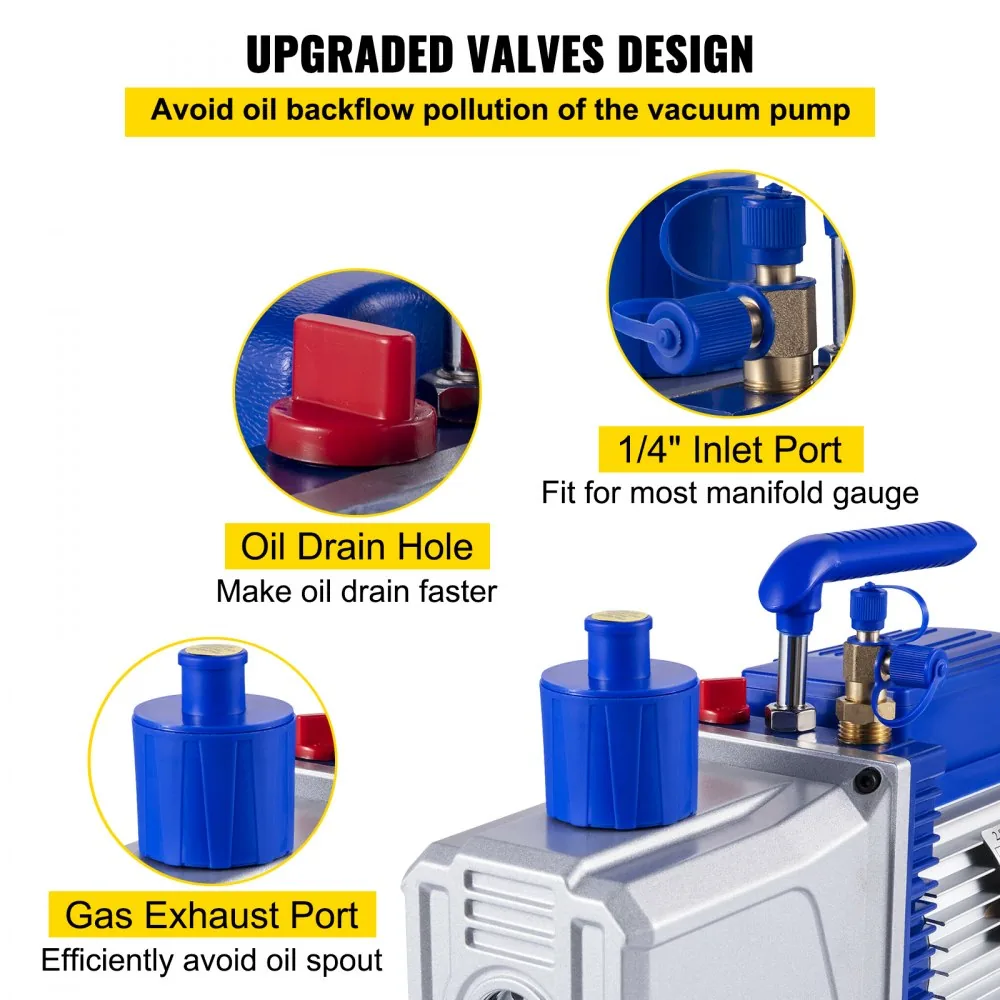

The pump holds 500 ml of oil. Oil is not included, so plan for a bottle of proper vacuum pump oil before the first use. A sight window lets you check the level and condition without opening anything. The 1/4 in fill port is reachable from the front or either side, and a drain hole at the base makes changes quicker. Fill to the marked level rather than to the top; overfilling can push oil out through the exhaust.

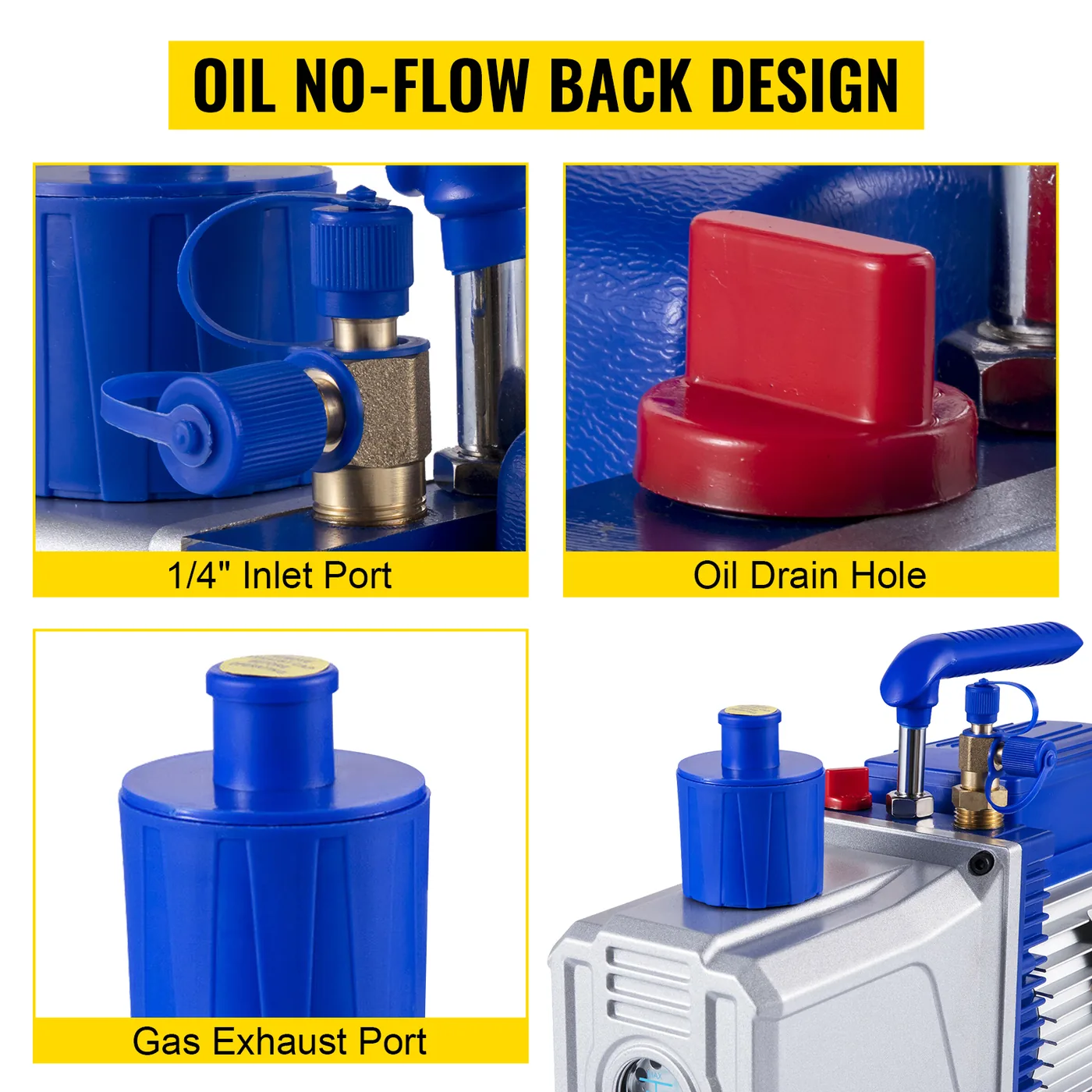

Backflow prevention is built in. When the pump stops, the design keeps oil from being drawn back into the system through the inlet, which is the failure that contaminates lines and gauges. It does not replace closing the valve on your manifold set, but it adds a second line of defense.

Build and Placement

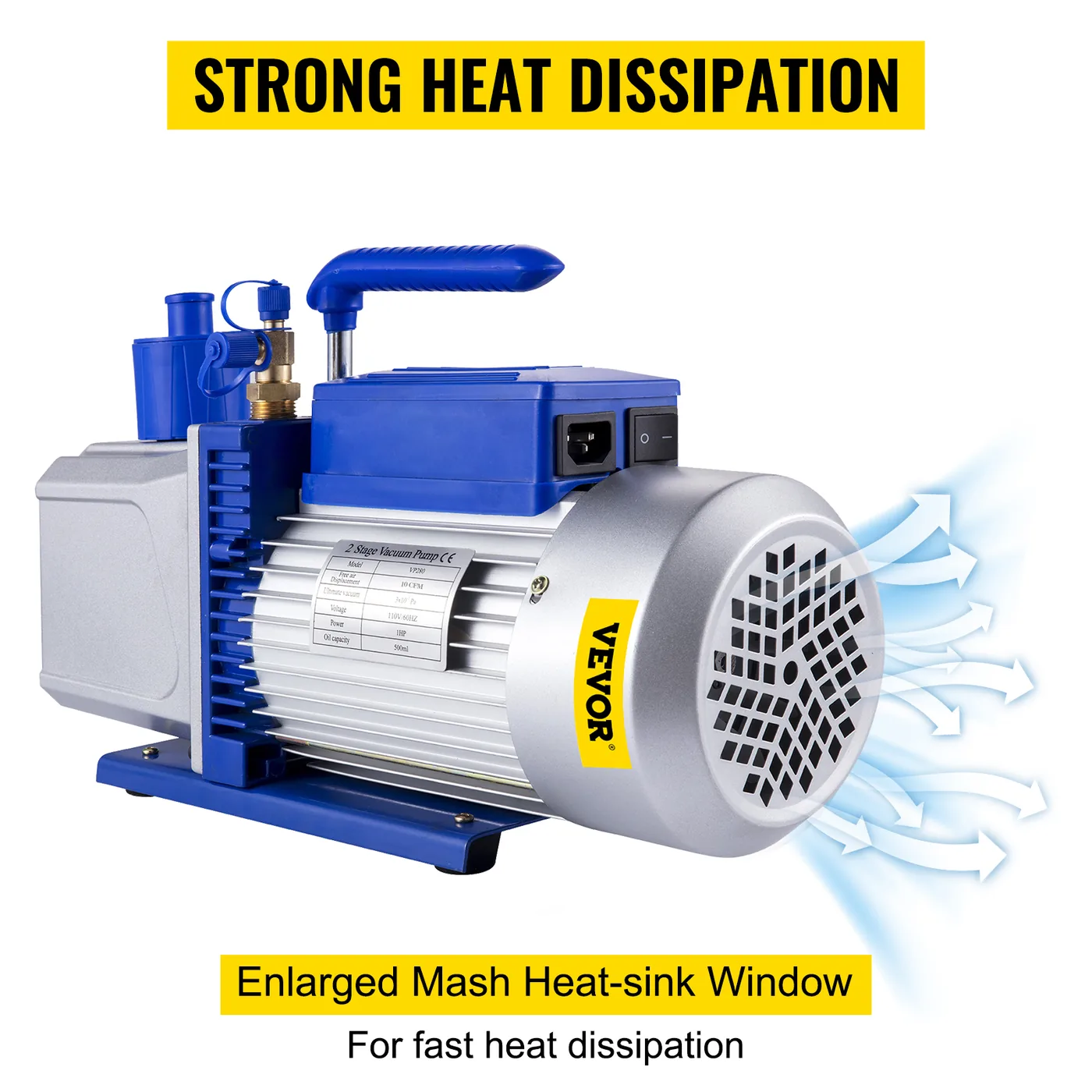

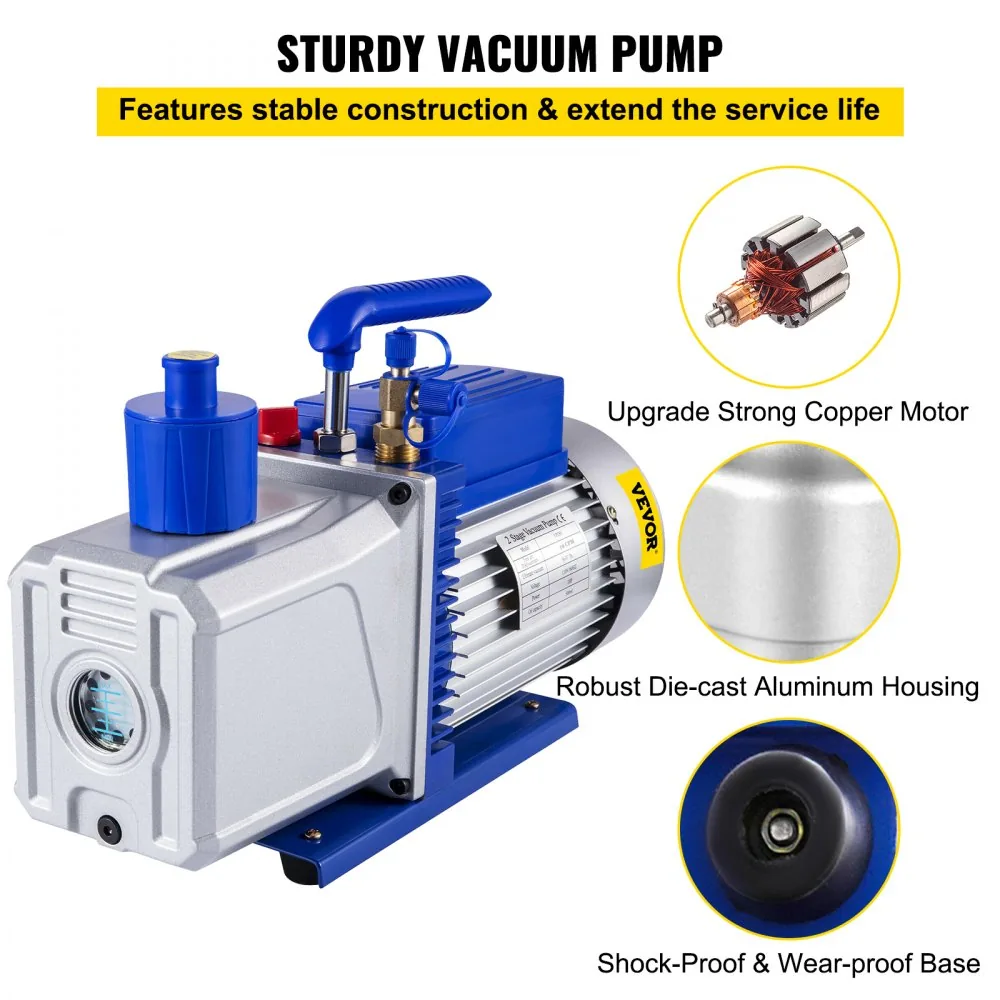

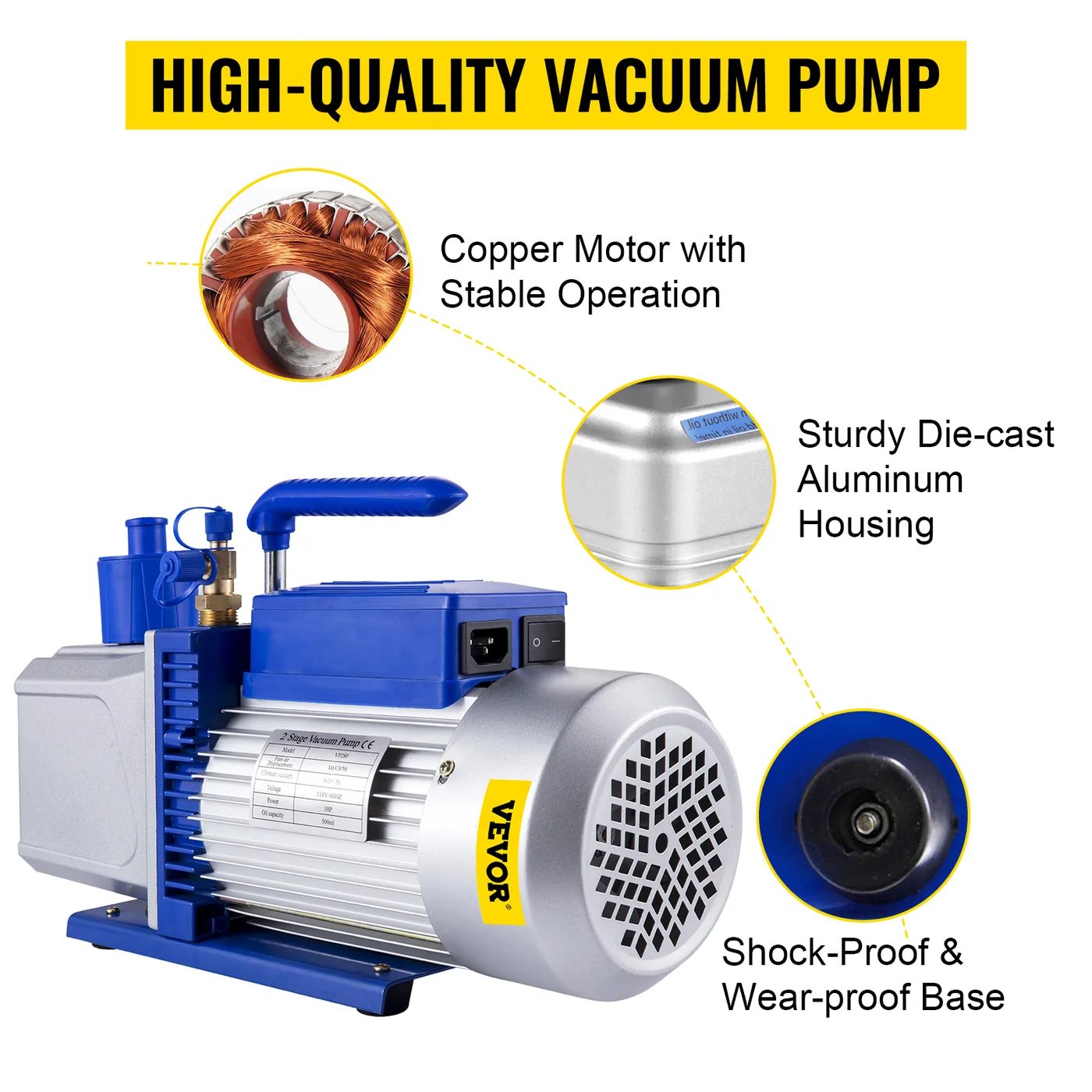

The body is aluminum alloy with a copper motor, and the base is isolated to reduce vibration while the pump is running. Set it on a flat, stable surface with the exhaust pointing away from you and away from anything that oil mist could settle on. Keep the intake clear and use the carry handle when moving it.

Practical Evacuation Notes

Use short, large-diameter hoses and remove Schrader cores where the service valves allow it. A restrictive hose can dominate evacuation time no matter how capable the pump is. Change the oil when it turns dark or milky, and after any job where the system carried a lot of moisture. Moisture-loaded oil loses ultimate vacuum quickly.

What It Is Not For

This is a vacuum pump for refrigerant and HVAC service, not a transfer pump. Do not use it to move liquids, and do not pull flammable, corrosive or explosive gases through it. Those uses require different equipment and different seals.

Performance & Applications

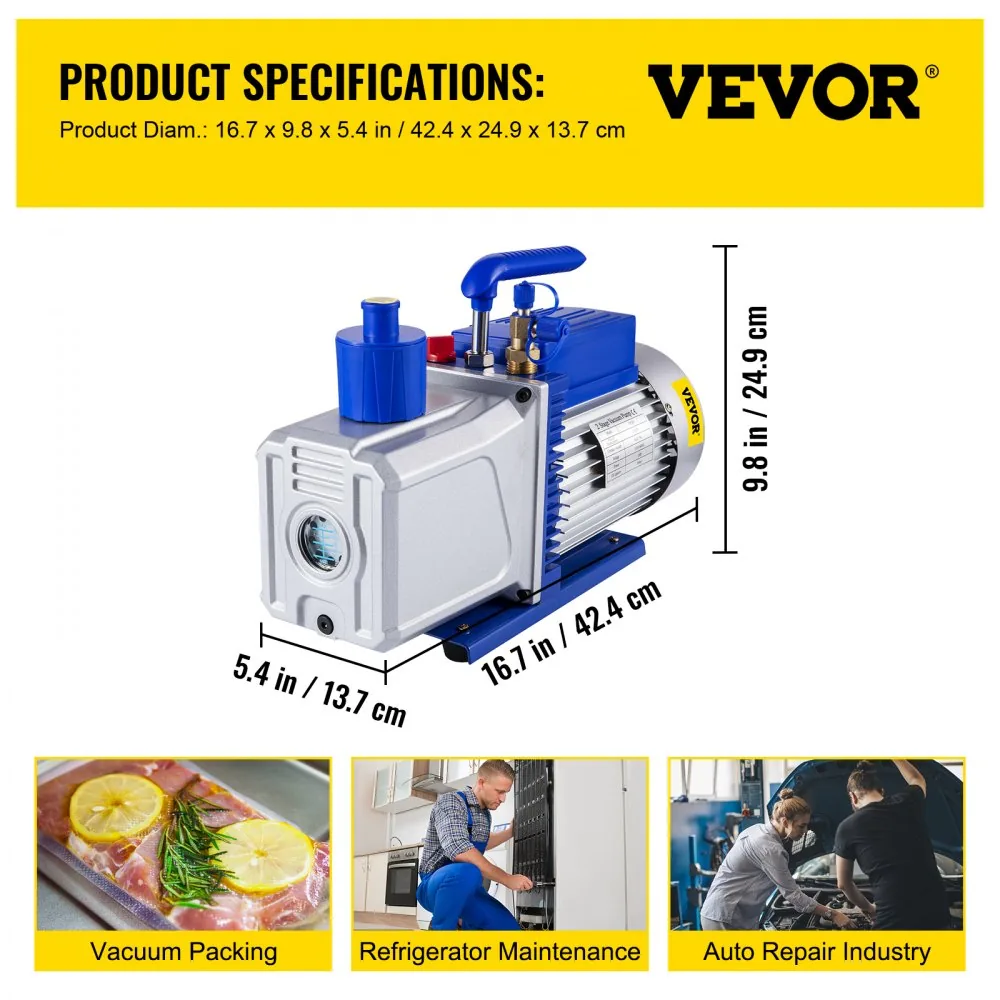

Specifications

Brand	VEVOR
Ultimate vacuum	3x10-1Pa, 25 microns
Pump rotating speed	2000 r/min
Type	2-stage vacuum pump
Oil capacity of Pump	500 ml
Free air displacement	10 CFM, 254 L/M
Note	Oil are not included

0 reviews for VEVOR Vacuum Pump 12CFM 1HP Vane Vacuum Pump Two Stage 3 x 10-1 Pa Ultimate HVAC Rotary Auto AC Refrigerant Vacuum Pump

Customer reviews

No reviews found

No reviews match your current filters. Try adjusting or clearing your filters to see more reviews.

Be the first to review “VEVOR Vacuum Pump 12CFM 1HP Vane Vacuum Pump Two Stage 3 x 10-1 Pa Ultimate HVAC Rotary Auto AC Refrigerant Vacuum Pump” Cancel reply

Your email address will not be published. Required fields are marked *

Review Title (optional) 0 / 100

Your rating *

Your review *

Add Photos/Videos (optional)

Drag & drop files here or browse

Images: up to 5 files, max 5MB each | Videos: up to 2 files, max 50MB each, 60 sec max

Name

Post this review anonymously

Frequently Asked Questions

Q: What ultimate vacuum does this pump reach?

A: The specification table lists 3 x 10^-1 Pa, which is 25 microns. Ultimate vacuum is the lowest pressure the pump can reach under ideal conditions; hose diameter, connection leaks and oil condition all affect the vacuum you actually see at the system.

Q: Is vacuum pump oil included?

A: No. The pump has a 500 ml oil capacity and ships without oil. Use a proper vacuum pump oil rather than motor oil, and fill to the level shown in the sight window rather than to the top of the reservoir.

Q: The name says 12 CFM but the specification table says 10 CFM. Which one applies?

A: Use 10 CFM / 254 L/min from the specification table when planning a job. That is the free air displacement listed for this unit, and it is the figure to compare against hose size, system volume and expected evacuation time. The 12 CFM figure is part of the product name.

Q: What does two-stage mean, and why does it matter?

A: A two-stage pump uses two rotors in series. The first stage moves most of the air, and the second stage pulls on the first stage exhaust to reach a lower final pressure. Compared with a single-stage pump of similar size, that generally means a lower ultimate vacuum and better moisture removal late in the evacuation.

Q: Does it prevent oil from flowing back into the system?

A: Yes. Backflow prevention is built into the design to keep oil out of the inlet when the pump stops. It is still good practice to close the manifold valve before switching the pump off, so the protection is a second line of defense rather than the only one.

Q: How do I check and change the oil?

A: Look at the sight window on the body to check level and color. Fill through the 1/4 in port, which can be reached from the front or either side, and drain through the hole at the base. Change the oil when it turns dark or milky, and after any job where the system carried a lot of moisture.

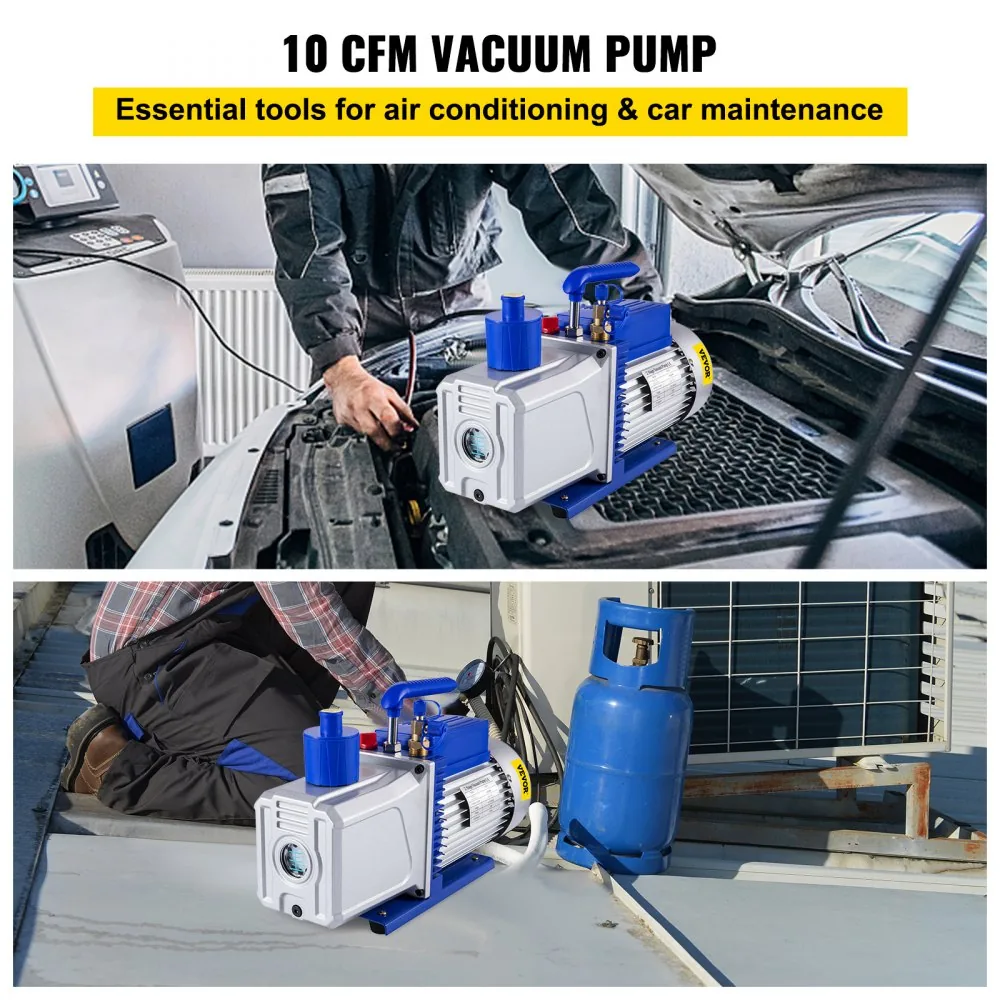

Q: What kind of work is this pump intended for?

A: Evacuating HVAC and automotive air-conditioning systems before charging, and related refrigerant service work. It is not a transfer pump: do not use it to move liquids, and do not pull flammable, corrosive or explosive gases through it.

Q: Why is evacuation slower than expected?

A: Restrictive hoses, Schrader cores left in service valves, leaking connections and moisture-loaded oil are the usual causes. Use short, large-diameter hoses, remove cores where the valves allow it, and change the oil if it has absorbed moisture. A pump cannot overcome a leaking manifold set.
